PRODUCTS FOR
PROFESSIONALS
from Vetronix Corporation
PRODUCT OVERVIEW

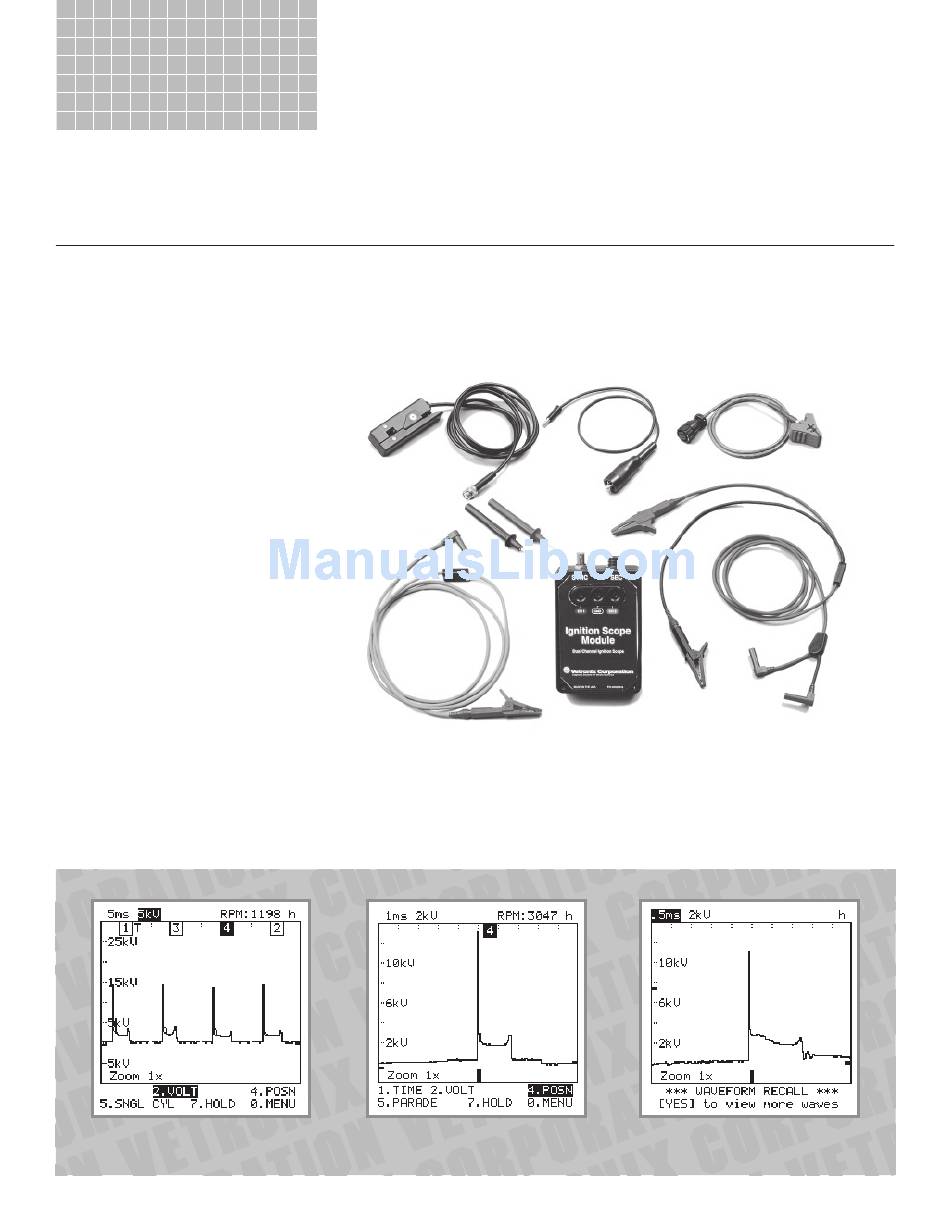

Ignition Scope Kit
The Ignition Scope Kit expands the capabilities of the MTS 3100 Mastertech kit by
enabling you to measure high voltage signals on automotive components and systems,
including solenoid circuits and spark ignition systems. You can now measure
hundreds of volts and make kilovolt measurements with a kV pickup probe.
The MTS 3100 Mastertech oscilloscope
functions have been enhanced to display
waveforms for all vehicle signals,
including fuel injectors and ignition
primary and secondary. The pre-select
feature lets you view waveforms in as few
as four key presses.
Parade/Single Cylinder
Display
Ignition patterns on a distributor
ignition vehicle can be viewed as a
Parade display (all cylinders), or you
can select a single cylinder from the
firing order and toggle the display to
view that cylinder alone.
Secondary Ignition
Quick Check
View secondary ignition single cyl-
inder with only one probe connection.
This function is supported for conven-
tional and wasted spark EI (DIS) sys-
tems. The Ignition Scope automatically
determines the polarity of the ignition
(1) Parade — View all cylinders
at once or ...
signal and displays it appropriately.
Vehicle Database
A database of vehicle ignition infor-
mation makes the Ignition Scope opera-
tion and hookup quick and simple.
... toggle to display a single
(2)
cylinder for more detail.
10
Glitch Capture
The Glitch Capture function enables
you to capture and display events such
as spikes and dropouts that occur be-
tween two data samples which would
otherwise not be visible.
(3)
Display Electronic Ignition
High Voltage Waveforms.
