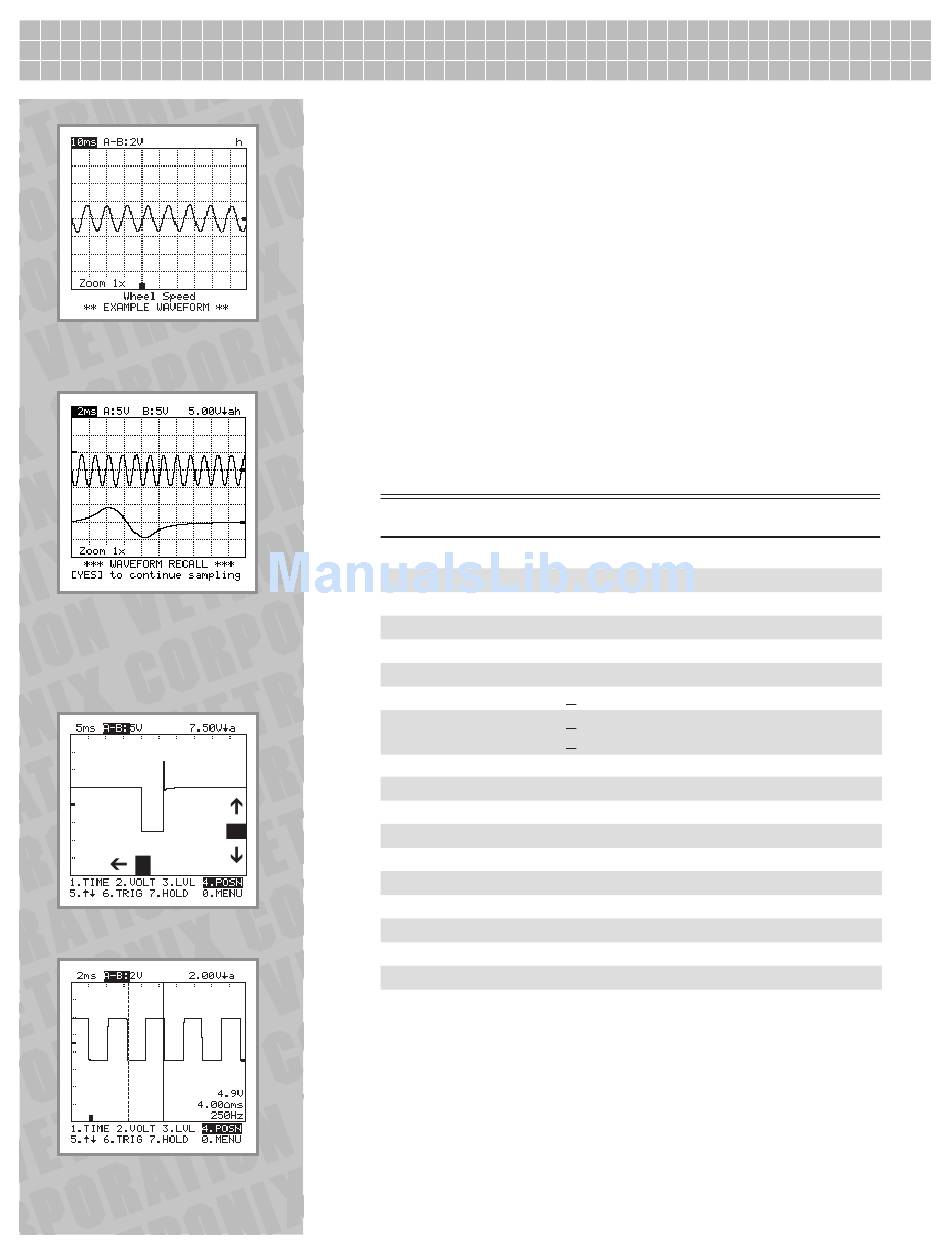

MTS 3100 Mastertech Multi-Function Tester
(1)
Single Channel
oscilloscope
(2) The oscilloscope in
dual channel mode can
display Crank and Cam
signals together!
➔
(3a)
(4)
Adjustable Cursors for
Waveform Measurements
OSCILLOSCOPE FEATURES
■
Single Channel (1) — displays a single waveform
■
Auto Setup Feature that automatically sets the time scale, voltage scale,
and trigger level based on the input signal
■
Dual channel (2) — displayed simultaneously, individually, summed,
or differenced
■
Auto, Normal, and Single-shot trigger functions
■
Trigger position adjustment (3a)
■
Ground level screen adjustment (3b)
■
Waveform zoom for detailed signal analysis
■
Hold Mode for waveform interpretation which can zoom up to 5 times
the set resolution
■
Adjustable cursors to measure information that lies within the measured
waveform (4)
■
Save and recall up to four waveforms for later diagnostic interpretation
All of this provides increased diagnostic capabilities in your hand-held
diagnostic center.
Parameter
Channels
Bandwidth
Max. Sample Rate
Input Impedance
Input Coupling
Max. Input Voltage
DC Accuracy
Volt/Division
Time/Division
Time Base Accuracy
(3b)
Trigger Mode
Trigger Slope
Cursor/Markers
Display Zoom
Waveform Hold
Waveform Display
Zero Axis Adjust
ENHANCED DIAGNOSTIC LEAD SET
Increase the performance of your MTS 3100 Mastertech oscilloscope with the
optional purchase Enhanced Diagnostic Lead Set (EDLS).
The EDLS expands the capabilities of the MTS 3100 Mastertech by enabling
you to measure high voltage signals on automotive components and systems,
including sensors, actuators and spark ignition systems. You can now measure
up to 600V directly, and up to 50kV with a kV pick up probe.
The EDLS broadens the MTS 3100 Mastertech oscilloscope function to display
waveforms for all vehicle signals, including fuel injectors, EGR solenoids and
secondary ignition patterns. See the EDLS Product information in the following pages.
Oscilloscope Specifications
Oscilloscope Specification
1 or 2
10KHz
80,000 samples/second
Up to 1MΩ
DC
+ 20V DC with circuit protection
+ 3% (500mS/div)
+ 5% (<500mS/div)
0.1V/div to 5V/div
0.2ms/div to 20S/div
µ
Down to 1
Normal/Automatic/Single Shot
Rising or Falling Edge
Yes/Yes
Yes, 2X and 5X
Yes
Yes, up to 4
Yes
4
S
