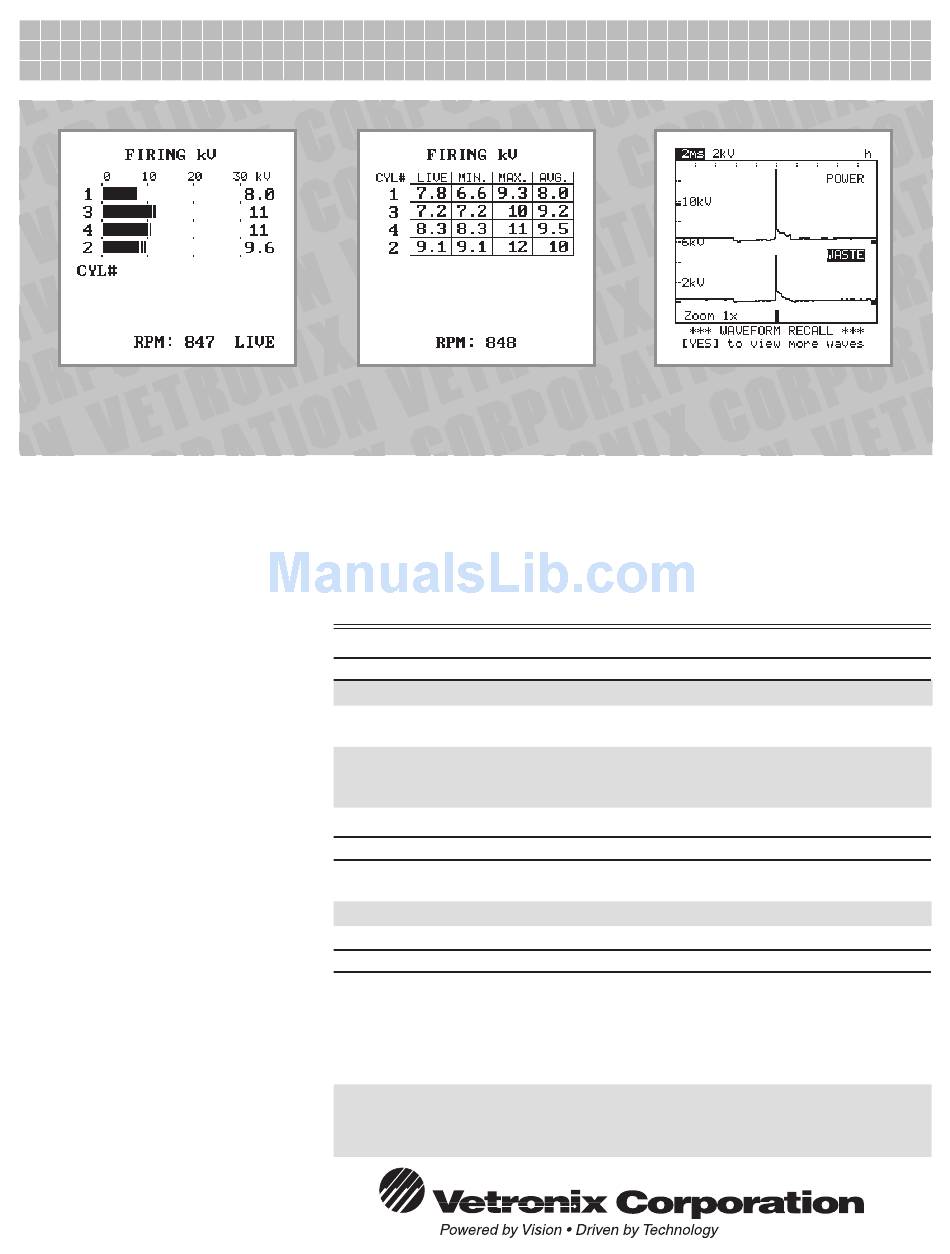

Bar Chart — Data bars
indicate min., max., and live kV.
Pre-Trigger Data
The trigger position on the tester
screen can be moved to the left and
right so any portion of the waveform
can be easily viewed. Data gathered
before the trigger point allows the
signal to be displayed so that all the
necessary information can be seen. In
an ignition waveform, this includes
dwell, firing kV, burn time and voltage,
and coil oscillations.
Ignition System Support
The Ignition Scope supports the fol-
lowing ignition types: Conventional,
Wasted spark EI (DIS), and Integral
Coil distributor systems.
Bar Chart and Digital
Displays
Ignition parameters can be dis-
played in Bar Chart or Digital dis-
play. These displays make it easy to
compare cylinders. For example, ei-
ther the Bar Chart (4) or Digital
display (5) modes quickly and
clearly demonstrate if a particular
cylinder's firing kV is different than
other cylinders.
Ignition Scope Kit
(5)
Digital Display — Numeric
data displays min., max., avg.,
and live information.
High Voltage Measurement
Up to 600 Volts/ 50kV
Using the MTS 3100's built-in
oscilloscope display and Ignition
Scope, the technician can measure ± 600
volts signals on two channels.
IGNITION SCOPE MODULE SPECIFICATIONS
General Specifications
Operating Mode
Size and Weight
Measurement Inputs
Power Source
Measurement Specifications
Glitch Capture
Peak Detect
Bandwidth
Probes
Standard Probes
Optional Probes
11
(6)
Power/Waste — Power and
Waste Spark kV is easily
compared on a single cylinder.
EI Power/Waste Display
Use the Power/Waste mode
view the power and waste spark
signals of an EI (DIS) system. Both
waveforms for a single cylinder are
displayed on the same screen.
Description
Accessory to the Mastertech
Approximately 6" (L) x 3.75" (W) x 1.25" (H)
Approximately 8.2 oz.
2 Oscilloscope Inputs; +/-600 AC RMS, +/- 200 volts DC
2 Secondary Ignition Inputs
1 Trigger Input (Sync Probe)
12V DC from Vehicle Battery
Description
Minimum Glitch: 250 ns
Used in oscilloscope & Ignition Analyzer Peak Detect
4 MHz.
10 MHz.
Description
3 Shielded General Purpose leads w/Alligator Clips
& 2 Pointed Probes for Oscilloscope & Digital Meter
Secondary Ignition kV Probe
RPM "Sync" Probe
I/P-DC Power Cable
Integral Coil Adapters (GM HEI, Toyota, Denso)
Current Probe
Temperature Probe
(6)
to
