PRODUCTS FOR
PROFESSIONALS
from Vetronix Corporation
PRODUCT OVERVIEW

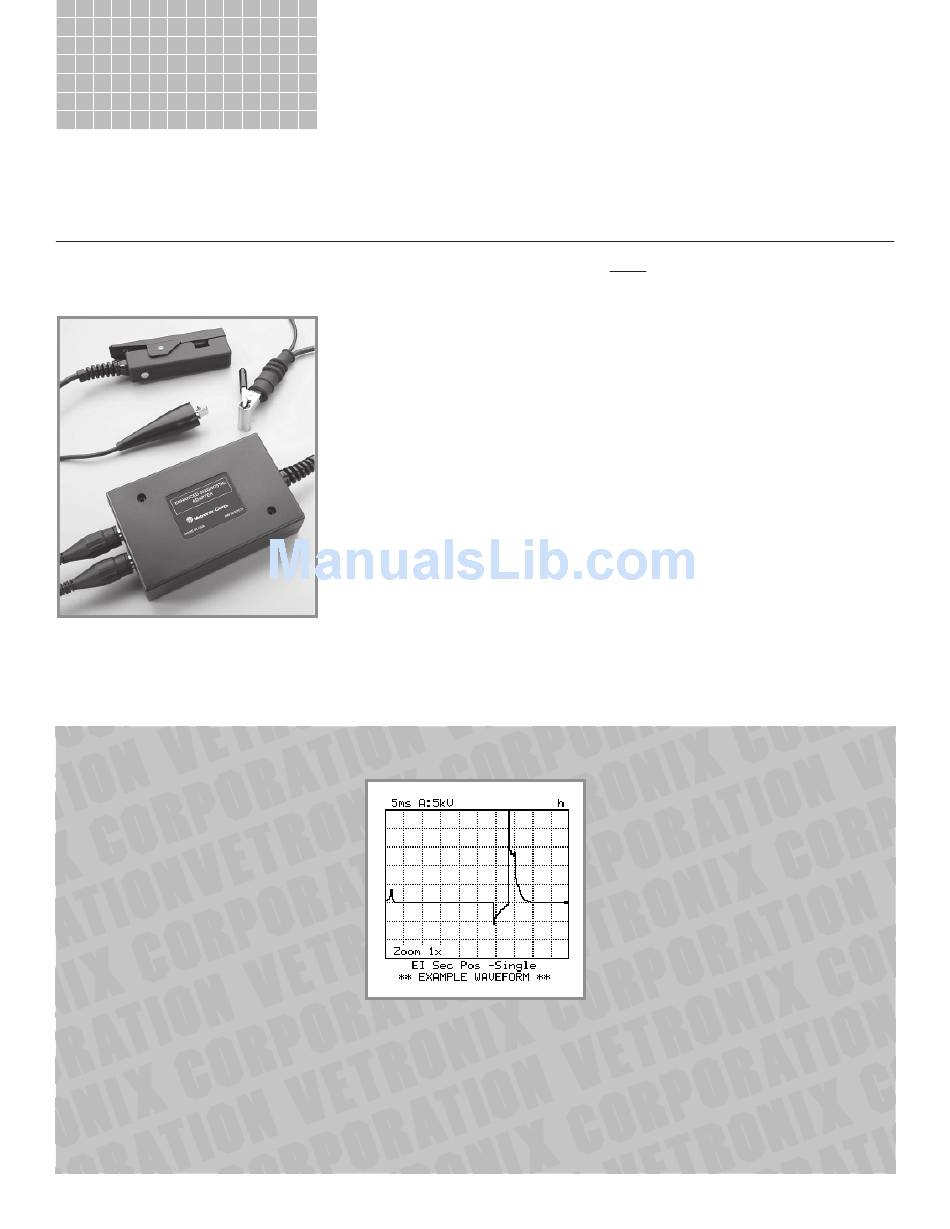

Enhanced Diagnostic Lead Set (EDLS)
Now You Can View Spark Ignition System Information and On-Board Computer
Data ALL WITH ONE TOOL !
The Enhanced Diagnostic Lead Set
adds High Voltage Display, KV Pickup,
RPM Trigger, and Automatic Display
Setup to the MTS 3100 Mastertech
FEATURES
HIGH VOLTAGE MEASUREMENT
Up to 600 Volts/ 50kV
Use the EDLS with your MTS 3100
Mastertech to test and confirm signals
from ignition systems using the MTS
3100's built-in oscilloscope display.
The EDLS lets you measure high
voltage signals such as ignition
secondary and primary, plus fuel
injector pulses.
KV PICKUP PROBE
Measure Spark Ignition
Voltages
Display and view spark ignition
secondary KV waveforms on a
portable, hand-held tester in both
single or all cylinder modes.
How Can I Increase the
Power of My MTS 3100?
The Enhanced Diagnostic Lead Set
(EDLS) expands the capabilities of the
MTS 3100 Mastertech kit by enabling
you to measure high voltage signals on
automotive components and systems,
including solenoid circuits and spark
ignition systems. You can now measure
hundreds of volts directly, and make
kilovolt measurements with a KV
pickup probe.
What Can This Product Do?
The MTS 3100 oscilloscope functions
have been enhanced to display
waveforms for all vehicle signals,
including fuel injectors and ignition
primary and secondary. The pre-select
feature lets you view waveforms in as few
as four key presses.
Display Electronic Ignition
High Voltage Waveforms.
12
How Easy Is the
Oscilloscope Function
To Use?
You select the signal from a menu that
includes Sensors, Actuators, Fuel
Injector, Distributor, Ignition and
Battery. The oscilloscope settings will
be automatically configured for the
signal you select.
When you want to view a vehicle's
secondary ignition, just clip the RPM
and KV probes to the secondary ignition
wires. It's as simple as that.
The MTS 3100 continues to offer its
invaluable driveability and intermittent
troubleshooting tools, which include
single and dual trace oscilloscope func-
tions, voltmeter, frequency, duty cycle
meter, pulse width, and optional current
and temperature measurements.
AUTOMATIC DISPLAY
PRE-SELECT
Over 30 Pre-set Functions
The MTS 3100 will automatically
display sensor specific waveforms
with pre-programmed set ups for
faster diagnosis. You still have full
control of the settings on the
oscilloscope screen. If the device that
you wish to test is not on the list, then
simply use the single or dual channel
oscilloscope mode.
RPM PROBE
Trigger Off Any Cylinder in
Engine Firing Order
Adds clip-on inductive pickup for
attaching to the trigger cylinder. The
RPM probe provides the trigger input
for spark ignition signals to ensure
stable waveform displays.
