MTS 3100
Mastertech
®
Multi-
Function
Tester
Product Line

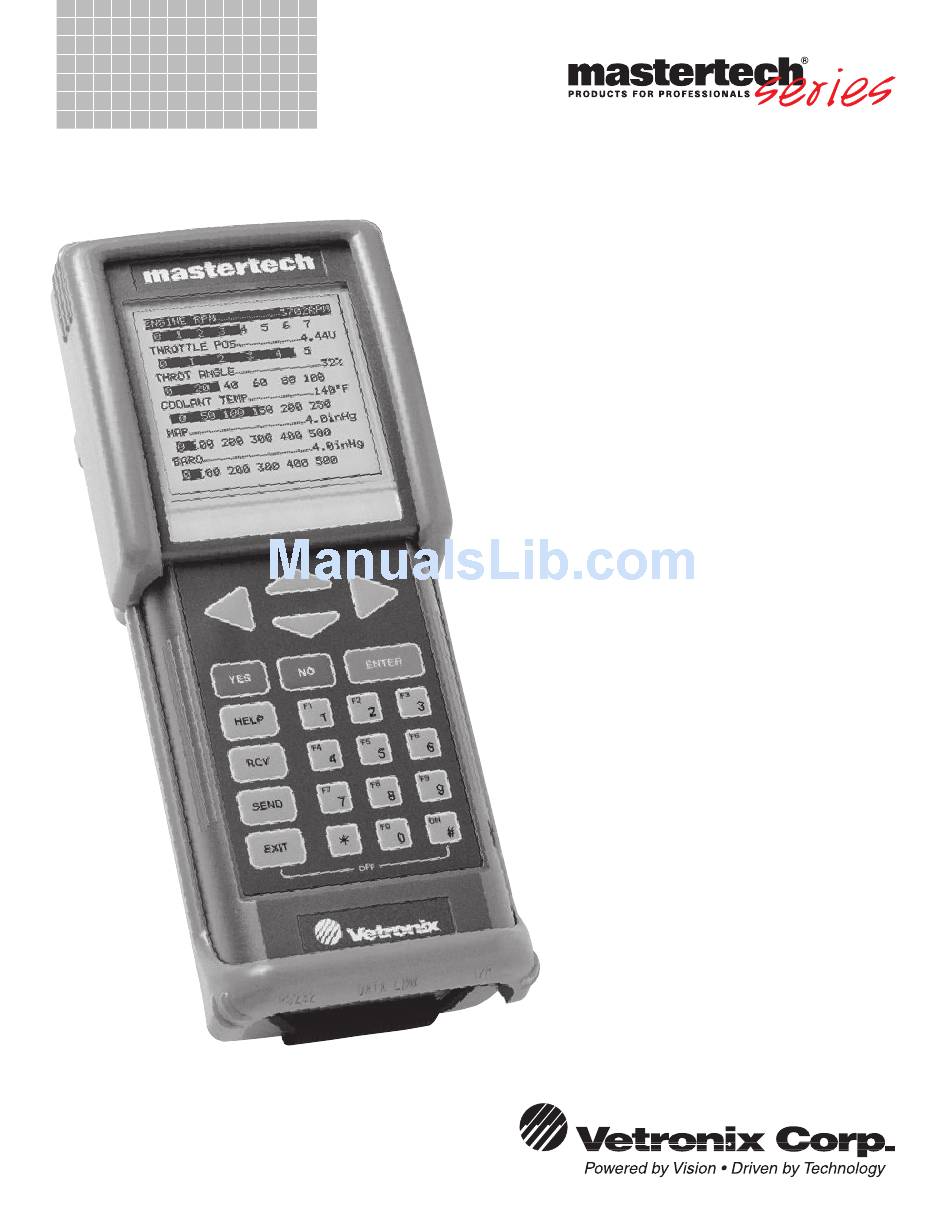

The MTS 3100
Mastertech Multi-
Function Tester is a
hand-held tester that
gives you the capability
to measure the many
different signals that are
common on today's
automobiles.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mts 3100 mastertech and is the answer not in the manual?

Questions and answers

Related Manuals for Vetronix mts 3100 mastertech

Summary of Contents for Vetronix mts 3100 mastertech

  • Page 1 PRODUCTS FOR PROFESSIONALS from Vetronix Corporation MTS 3100 Mastertech ® Multi- Function Tester Product Line The MTS 3100 Mastertech Multi- Function Tester is a hand-held tester that gives you the capability to measure the many different signals that are common on today's...

  • Page 2: Product Overview

    This should minimize time referring to The MTS 3100 Mastertech is not lim- quency meter, pulse width meter, and the operator's manual. ited to Serial Data Diagnostics. Using duty-cycle meter —...

  • Page 3: Digital Multimeter

    Displays Pulse Width, Time High/Time Low in ms or INTEGRATED DATA One of the most powerful features of the MTS 3100 Mastertech is its Pulse Width ability to display OBD serial data (5a) and digital meter data (5b) on the same screen.
  • Page 4 Increase the performance of your MTS 3100 Mastertech oscilloscope with the optional purchase Enhanced Diagnostic Lead Set (EDLS). The EDLS expands the capabilities of the MTS 3100 Mastertech by enabling you to measure high voltage signals on automotive components and systems, including sensors, actuators and spark ignition systems.

  • Page 5: Additional Functions

    MTS 3100 Mastertech Multi-Function Tester TECH TOOLBOX The MTS 3100 Mastertech includes a unique feature called the "Tech Toolbox" that contains a number of valuable Math, Timer, and Shop Management functions (4). These functions can be easily accessed while the MTS 3100 is connected to a vehicle, or while the MTS 3100 is running in stand-alone mode.
  • Page 6 OBD II. Ask for a demonstration! GLOBAL OBD II FUNCTIONS Global OBD II software for the MTS 3100 Mastertech supports all operating modes as defined by the Society of Automotive Engineers (SAE) Recommended Practice J1979. Listed below is a description of all of the OBD II test modes supported by Global OBD II software.
  • Page 7 ID of the ECU that reported it. Key Help and Menu Help The MTS 3100 Mastertech provides standard Key Help and Menu Help. Key Help displays a list of all active Typical Parameter...

  • Page 8: Diagnostic Trouble Codes

    RPM and throttle ECUs. position to the tester. When a data parameter is reported by more than one ECU, the MTS 3100 Mastertech will alert the > operator. The MTS 3100 will also notify the user whether these parameters have similar (=) or different (>) values as...
  • Page 9 ECU to determine which oxygen sensors are present. It displays a list of these sensors so you can select Test results specific to a one to examine. The MTS 3100 Mastertech then displays all manufacturer. available parameters for the selected oxygen sensor. ADDITIONAL TEST RESULTS The Mastertech supports additional on-board test results that are specific to the vehicle manufacturer.
  • Page 10 PRODUCT OVERVIEW Ignition Scope Kit The Ignition Scope Kit expands the capabilities of the MTS 3100 Mastertech kit by enabling you to measure high voltage signals on automotive components and systems, including solenoid circuits and spark ignition systems. You can now measure hundreds of volts and make kilovolt measurements with a kV pickup probe.
  • Page 11 Ignition Scope Kit Bar Chart — Data bars Digital Display — Numeric Power/Waste — Power and indicate min., max., and live kV. data displays min., max., avg., Waste Spark kV is easily and live information. compared on a single cylinder. EI Power/Waste Display Pre-Trigger Data High Voltage Measurement...
  • Page 12 You select the signal from a menu that (EDLS) expands the capabilities of the includes Sensors, Actuators, Fuel MTS 3100 Mastertech kit by enabling Injector, Distributor, Ignition and you to measure high voltage signals on Battery. The oscilloscope settings will...
  • Page 13 PRODUCTS FOR PROFESSIONALS from Vetronix Corporation PRODUCT OVERVIEW Waveform Assistant A Vital Companion Product to the Popular Enhanced Diagnostic Lead Set (EDLS) The Waveform Assistant includes you need to diagnose a stubborn How many times have a Waveform Library that holds over 30 problem.
  • Page 14 Current and Temperature Probes Current Probe The inductive current probe is de- becoming a valuable diagnostic tool signed for use with the Vetronix MTS on modern vehicle systems. For ex- 3100 Mastertech and accessories and ample, the current probe can quickly...
  • Page 15 It is also an opportunity for members to network and exchange ideas that helps everyone execute business more efficiently. Vetronix Corporation provides members with the most up to date information on new products and developments in the industry. The Mastertech Club keeps all members on a first-to-know basis so that you are aware of the latest technology, which has a positive impact on you and your company’s bottom line.
  • Page 16 2030 Alameda Padre Serra • Santa Barbara, CA 93103 805 / 966-2000 • 800 / 321-4889 • Fax 805 / 965-3497 www.vetronix.com © 2002 Vetronix Corporation • Printed in U.S.A. 11/02 • P/N 08001772 ® mastertech is a registered trademarks of Vetronix Corporation...
