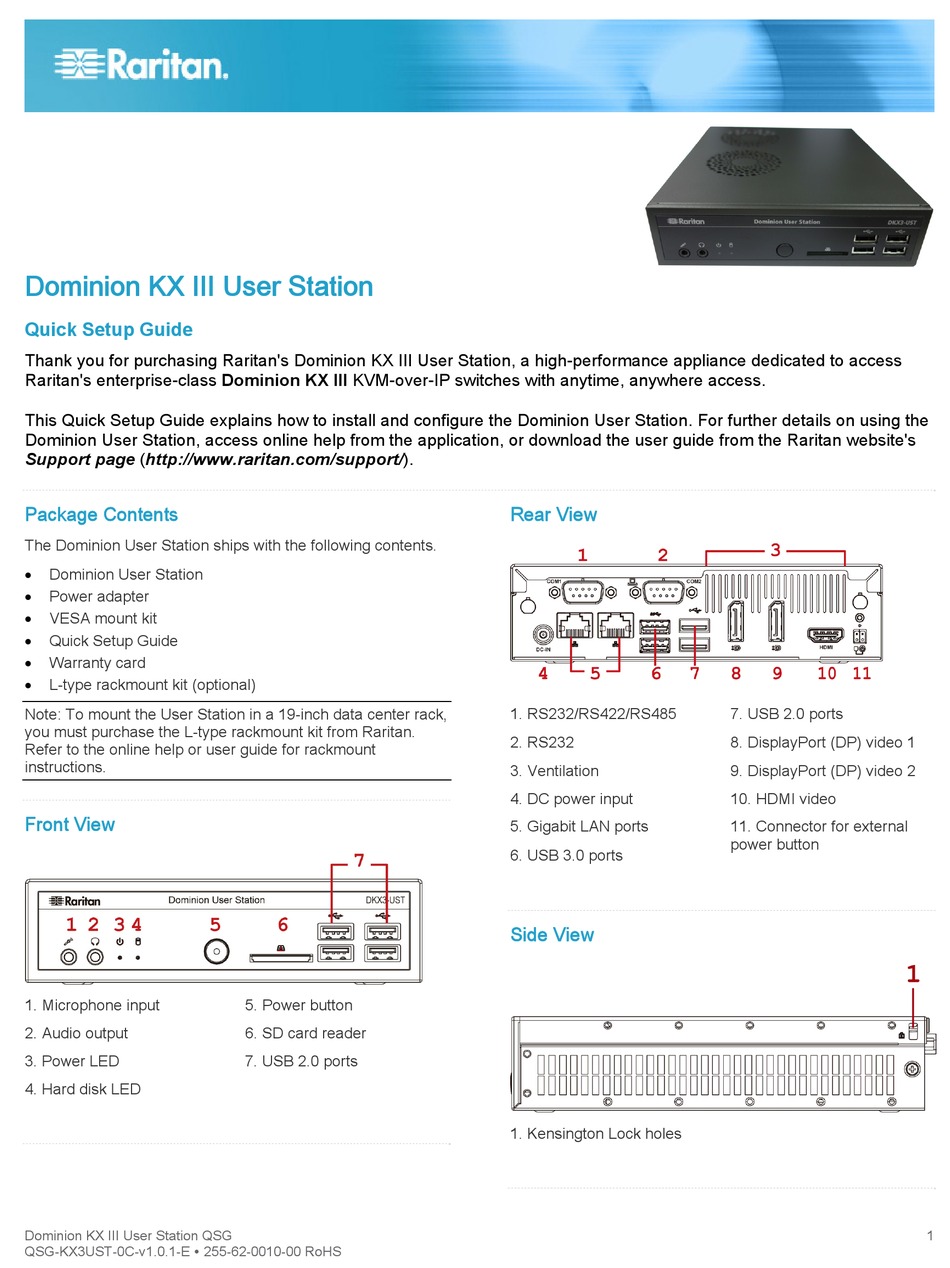

Dominion KX III User Station

Quick Setup Guide

Thank you for purchasing Raritan's Dominion KX III User Station, a high-performance appliance dedicated to access
Raritan's enterprise-class Dominion KX III KVM-over-IP switches with anytime, anywhere access.
This Quick Setup Guide explains how to install and configure the Dominion User Station. For further details on using the
Dominion User Station, access online help from the application, or download the user guide from the Raritan website's
Support page (http://www.raritan.com/support/).
Package Contents
The Dominion User Station ships with the following contents.
Dominion User Station
Power adapter
VESA mount kit
Quick Setup Guide
Warranty card
L-type rackmount kit (optional)
Note: To mount the User Station in a 19-inch data center rack,
you must purchase the L-type rackmount kit from Raritan.
Refer to the online help or user guide for rackmount
instructions.
QS Rule
Front View
1. Microphone input
2. Audio output
3. Power LED
4. Hard disk LED
QS Rule
Dominion KX III User Station QSG
QSG-KX3UST-0C-v1.0.1-E  255-62-0010-00 RoHS
5. Power button
6. SD card reader
7. USB 2.0 ports
Rear View
1. RS232/RS422/RS485
2. RS232
3. Ventilation
4. DC power input
5. Gigabit LAN ports
6. USB 3.0 ports
QS Rule
Side View
1. Kensington Lock holes
QS Rule
7. USB 2.0 ports
8. DisplayPort (DP) video 1
9. DisplayPort (DP) video 2
10. HDMI video
11. Connector for external
power button
1
