Dominion KX III User Station
Thank you for purchasing Raritan's Dominion KX III User Station, a high-performance appliance dedicated to access
Raritan's enterprise-class Dominion KX III KVM-over-IP switches with anytime, anywhere access.
This Quick Setup Guide explains how to install and configure the Dominion User Station. For further details on using the
Dominion User Station, access online help from the application, or download the user guide from Raritan's
page
http://www.raritan.com/support/
(

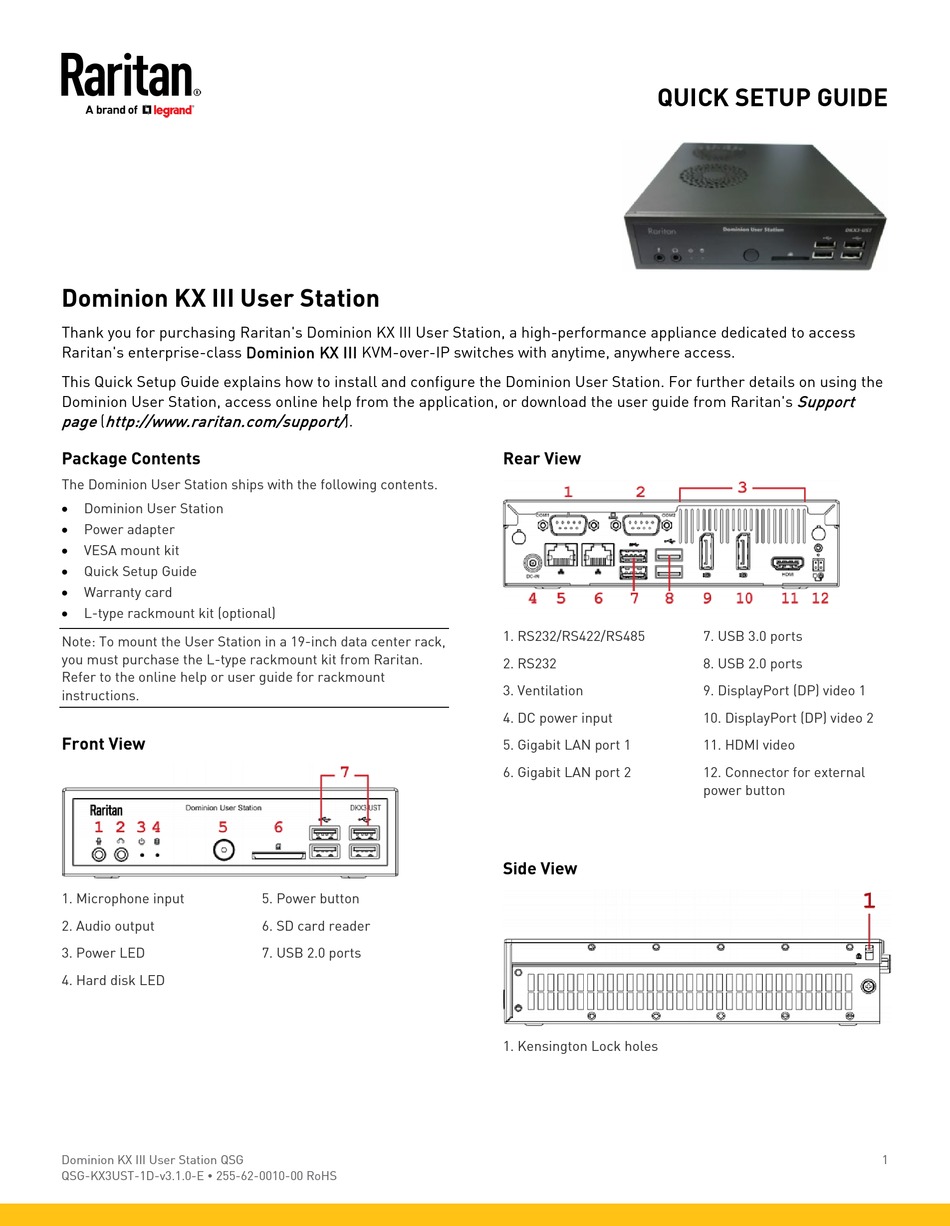

Package Contents
The Dominion User Station ships with the following contents.
•
Dominion User Station
•
Power adapter
•
VESA mount kit

Quick Setup Guide

•
•
Warranty card
L-type rackmount kit (optional)
•
Note: To mount the User Station in a 19-inch data center rack,
you must purchase the L-type rackmount kit from Raritan.
Refer to the online help or user guide for rackmount
instructions.
QS Rule

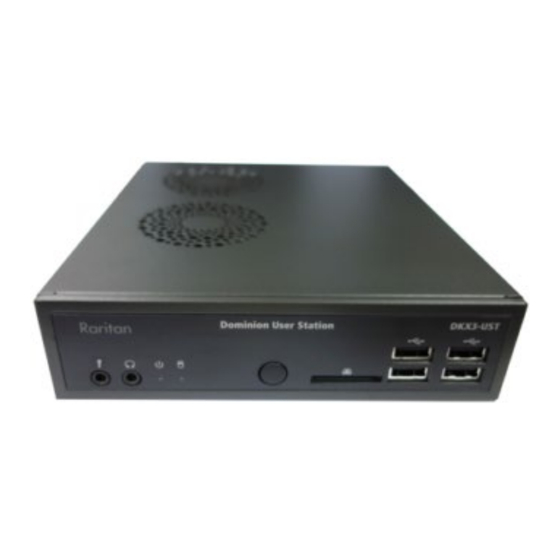

Front View
1. Microphone input
2. Audio output
3. Power LED
4. Hard disk LED
QS Rule
Dominion KX III User Station QSG
QSG-KX3UST-1D-v3.1.0-E  255-62-0010-00 RoHS
).
5. Power button
6. SD card reader
7. USB 2.0 ports
QUICK SETUP GUIDE
Rear View
1. RS232/RS422/RS485
2. RS232
3. Ventilation
4. DC power input
5. Gigabit LAN port 1
6. Gigabit LAN port 2
QS Rule
Side View
1. Kensington Lock holes
QS Rule
Support
7. USB 3.0 ports
8. USB 2.0 ports
9. DisplayPort (DP) video 1
10. DisplayPort (DP) video 2
11. HDMI video
12. Connector for external
power button
1
