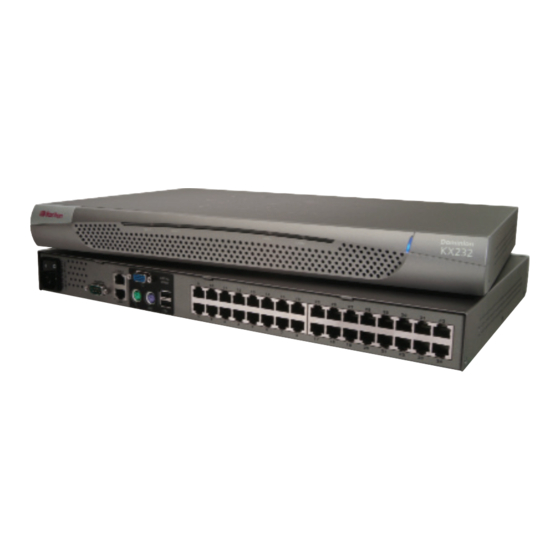

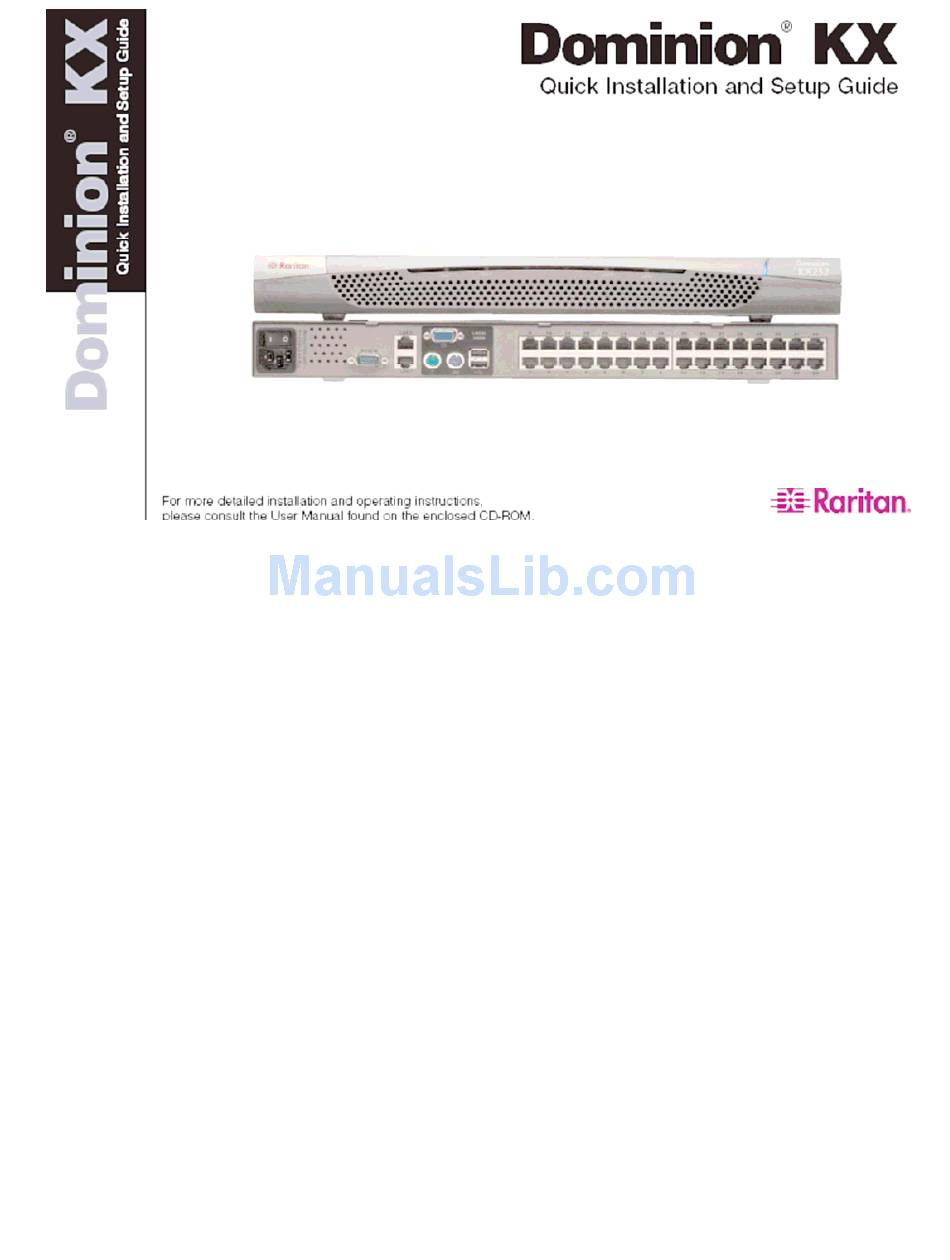

Raritan Dominion KX Quick Installation And Setup Manual

Raritan Dominion KX Quick Installation And Setup Manual

Hide thumbs Also See for Dominion KX:

Advertisement

Rev. D July 2005 255-80-6030
I. Prepare Devices and Network for Remote Operation
Congratulations on your purchase of Dominion KX, the industry's most fully featured digital KVM (keyboard/video/mouse) switch.
Before connecting the Dominion KX, configure each device, which you intend to access via Dominion KX, with the following
parameters. This very important installation procedure ensures optimal performance and responsiveness when using the remote
server access capabilities of Dominion KX.
All Servers
A.
For optimal bandwidth efficiency and video performance, set the OS desktop background to a predominantly solid, plain, light-
colored graphic.
B.
Ensure that the server's video resolution and refresh rate are supported by Dominion KX, and the signal is non-interlaced:
Text Mode
640x480 @ 60Hz
640x480 @ 72Hz
640x480 @ 75Hz
640x480 @ 85Hz
800x600 @ 60Hz
800x600 @ 72Hz
800x600 @ 75Hz
Network / Firewall
In order to enable remote access to Dominion KX, your network and firewall must allow communication on TCP Port 5000. Alternatively,
Dominion KX can also be configured to use a different TCP port of your own designation (see User Manual).
Optional: If you wish to access Dominion KX via web browser, your firewall must also allow access to TCP Port 443 (Standard HTTPS). You
may also wish to allow access to TCP Port 80 (Standard HTTP) for additional convenience; Dominion KX will forward all HTTP requests to
HTTPS, allowing end users to securely use either "http" or "https" as a URL.
800x600 @ 85Hz
1024x768 @ 60Hz
1024x768 @ 70Hz
1024x768 @ 75Hz
1024x768 @ 85Hz
1152x864 @ 60Hz
1152x864 @ 75Hz
1280x1024 @ 60Hz

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dominion KX and is the answer not in the manual?

Questions and answers

Summary of Contents for Raritan Dominion KX

  • Page 1 Dominion KX can also be configured to use a different TCP port of your own designation (see User Manual). Optional: If you wish to access Dominion KX via web browser, your firewall must also allow access to TCP Port 443 (Standard HTTPS). You may also wish to allow access to TCP Port 80 (Standard HTTP) for additional convenience;...
  • Page 2 Then issue the “boot” command to reboot. Macintosh While no specific mouse setting is required, when using Dominion KX to access and control a Macintosh system remotely, you must set the Raritan Remote Client to “single cursor” mode. Please see the User Manual for more details.
  • Page 3 1. Attach the included AC power cord to the Dominion KX unit, and plug into an AC power outlet. 2. Attach a keyboard and mouse (either PS/2 or USB); and a multisync monitor to the corresponding ports in the back of Dominion KX marked “Local User.”...
  • Page 4 TCP/IP settings — at all other times, this port will be disabled. 4. Attach a keyboard and mouse (either PS/2 or USB), and a multi -sync monitor to the corresponding ports in the back of Dominion KX marked “Local User.” This Local User Console is used to access servers directly from the rack.
  • Page 5 Familiarize yourself with the features of Raritan Remote Client (RRC). After logging on to your unit with the default username/password (admin / raritan), use the RRC Navigator found on the left-hand side of the RRC window to select and connect to a port.
  • Page 6 2. The Dominion KX Manager applet will load and launch. Log on with the default username/password of admin / raritan. 3. Use Dominion KX Manager to navigate to the server port that you wish to change, and assign a name (up to 20 characters) to identify that server.
  • Page 7 Setting the noise filter too high can prohibit Dominion KX from correctly transmitting screen changes. On the menu bar, select Video > Video Settings to adjust the Noise Filter level to an appropriate setting for your environment.
