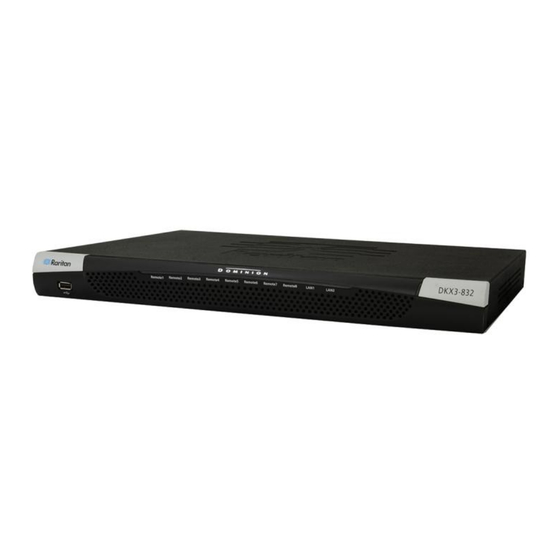

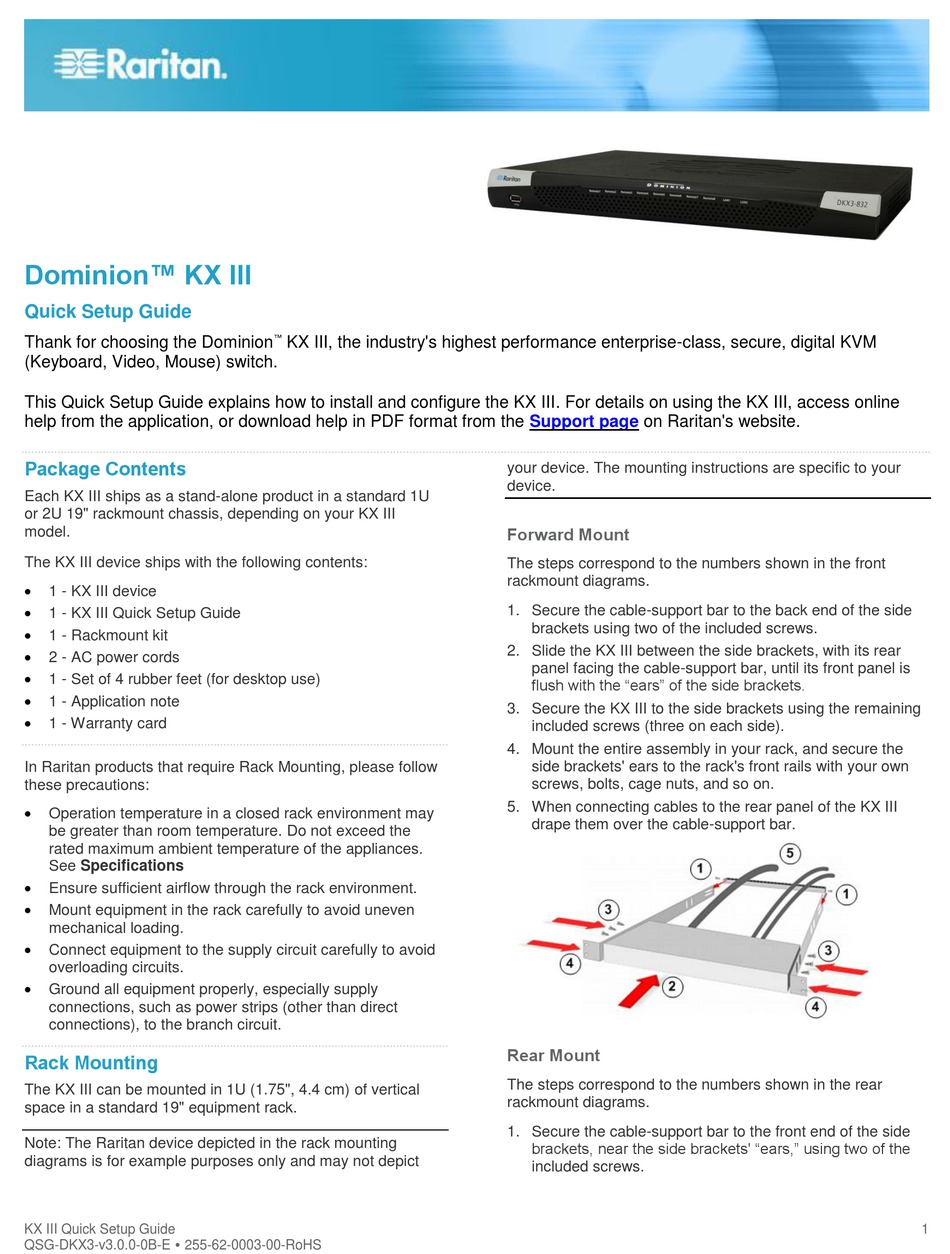

Dominion™ KX III
Quick Setup Guide
Thank for choosing the Dominion
(Keyboard, Video, Mouse) switch.
This Quick Setup Guide explains how to install and configure the KX III. For details on using the KX III, access online
help from the application, or download help in PDF format from the

Package Contents

Each KX III ships as a stand-alone product in a standard 1U
or 2U 19" rackmount chassis, depending on your KX III
model.
The KX III device ships with the following contents:

1 - KX III device

1 - KX III Quick Setup Guide

1 - Rackmount kit

2 - AC power cords

1 - Set of 4 rubber feet (for desktop use)

1 - Application note

1 - Warranty card
QS R ule
In Raritan products that require Rack Mounting, please follow
these precautions:

Operation temperature in a closed rack environment may
be greater than room temperature. Do not exceed the
rated maximum ambient temperature of the appliances.
See Specifications

Ensure sufficient airflow through the rack environment.

Mount equipment in the rack carefully to avoid uneven
mechanical loading.

Connect equipment to the supply circuit carefully to avoid
overloading circuits.

Ground all equipment properly, especially supply
connections, such as power strips (other than direct
connections), to the branch circuit.
QS R ule

Rack Mounting

The KX III can be mounted in 1U (1.75", 4.4 cm) of vertical
space in a standard 19" equipment rack.
Note: The Raritan device depicted in the rack mounting
diagrams is for example purposes only and may not depict
KX III Quick Setup Guide
QSG-DKX3-v3.0.0-0B-E  255-62-0003-00-RoHS
™
KX III, the industry's highest performance enterprise-class, secure, digital KVM
Support page on Raritan's website.
your device. The mounting instructions are specific to your
device.
Forward Mount
The steps correspond to the numbers shown in the front
rackmount diagrams.
1. Secure the cable-support bar to the back end of the side
brackets using two of the included screws.
2. Slide the KX III between the side brackets, with its rear
panel facing the cable-support bar, until its front panel is
flush with the "ears" of the side brackets.
3. Secure the KX III to the side brackets using the remaining
included screws (three on each side).
4. Mount the entire assembly in your rack, and secure the
side brackets' ears to the rack's front rails with your own
screws, bolts, cage nuts, and so on.
5. When connecting cables to the rear panel of the KX III
drape them over the cable-support bar.
Rear Mount
The steps correspond to the numbers shown in the rear
rackmount diagrams.
1. Secure the cable-support bar to the front end of the side
brackets, near the side brackets' "ears," using two of the
included screws.
