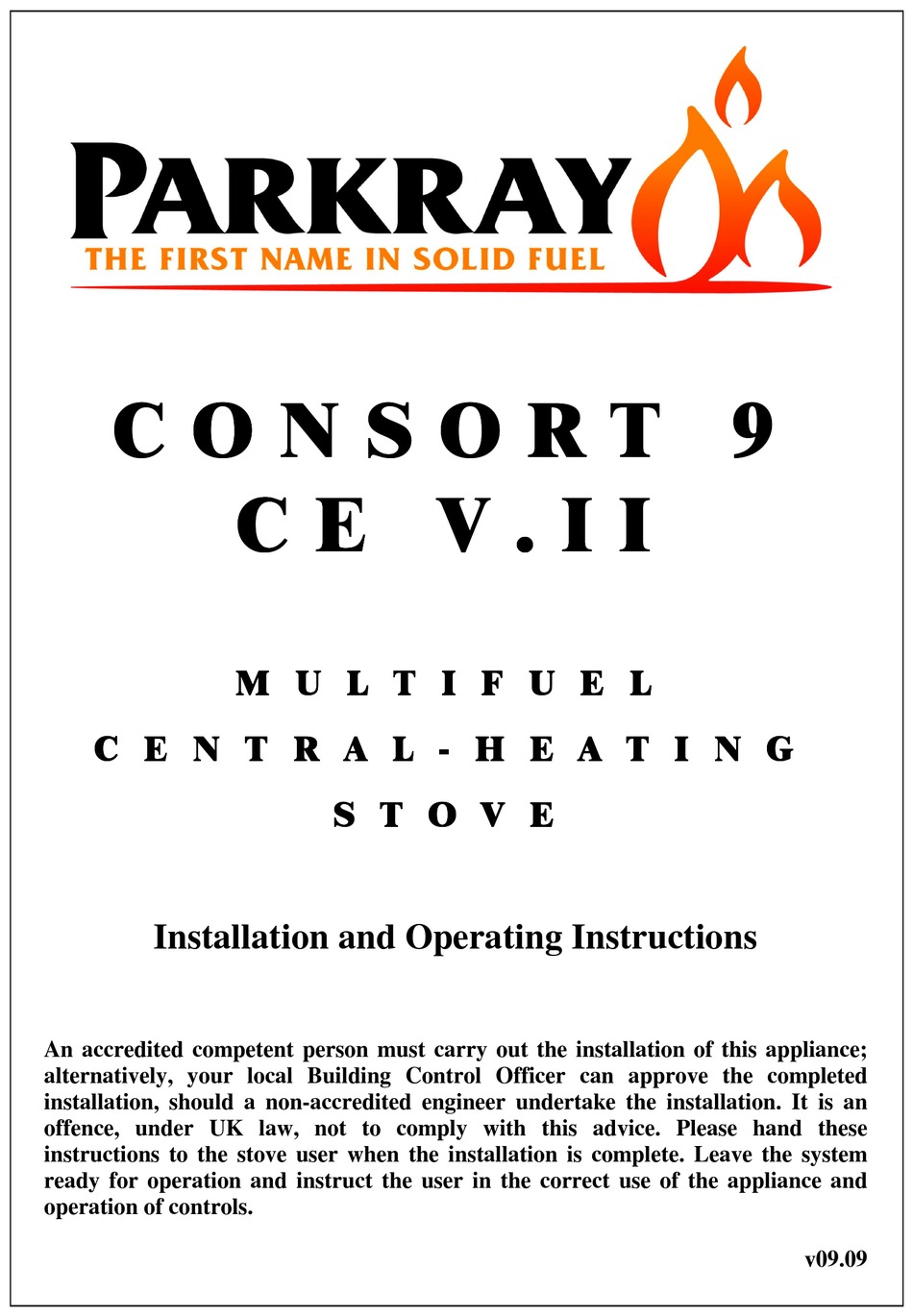

Installation and Operating Instructions
An accredited competent person must carry out the installation of this appliance;
alternatively, your local Building Control Officer can approve the completed
installation, should a non-accredited engineer undertake the installation. It is an
offence, under UK law, not to comply with this advice. Please hand these
instructions to the stove user when the installation is complete. Leave the system
ready for operation and instruct the user in the correct use of the appliance and
operation of controls.
C E V V V V . I I
C E
C E
C E
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
M U L T I F U E L
S T O V E
S T O V E
S T O V E
S T O V E
. I I
. I I
. I I
H E A T I N G
H E A T I N G
H E A T I N G
v09.09

Advertisement

Table of Contents
loading

Summary of Contents for Parkray consort 9 CE V.II

  • Page 1 C O N S O R T 9 C O N S O R T 9 C O N S O R T 9 C O N S O R T 9 C E V V V V . I I .
  • Page 2: Technical Specification

    Consort 9 CE V.II Central-Heating Technical Specification Stove Mass 133 kg Wood Total Efficiency 73.4% Nominal Heat Output 8.0 KW Output to Water 6.0 KW Output to Room 2.0 KW Mean CO Emission (at 13% O2) 0.52 % Mean Flue Gas Temperature 283 °C...
  • Page 3: Important Warning

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Parkray Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.
  • Page 4: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws, European and national standards and other specifications or regulations as they affect the installation of the stove.
  • Page 5: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 150mm and not more than 230mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
  • Page 6: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.
  • Page 7: Commissioning And Handover

    We strongly recommend that a knowledgeable, experienced and qualified plumbing and heating engineer is responsible for the design and installation of the heating and hot water system. Parkray Ltd cannot accept responsibility for any consequential loss, however caused, due to under or over specification of the appliance in any installation.
  • Page 8 Four Tapping System Time Switch Room Thermostat High Limit Thermostat 90° C Circulating Pump Low Limit Thermostat (45° C) Drain Cock Two Tapping System Time Switch Room Thermostat High Limit Thermostat 90°C Circulating Pump Drain Cock Low Limit Thermostat (45°C) Injector Tee Wiring Diagram for general guidance only All electrical work must be carried out by a competent...
  • Page 9: Air Controls

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.
  • Page 10: Multifuel Grate

    Multifuel Grate Your Parkray Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. The grate is designed to burn both wood and solid fuels.
  • Page 11: Notes On Wood Burning

    Notes on Wood burning With a full load of wood, the stove will need to be refuelled approximately once every 1.5 hours. Wood can be stacked higher in the stove than solid mineral fuel but care must be taken that logs do not move the baffle.
  • Page 12: Safety Notes For Your Guidance

    Recommended Solid Mineral Fuels Only authorised fuels may be used in UK smoke control areas. A list of authorised fuels can be found at http://uksmokecontrolareas.co.uk/fuels.php This stove has been independently tested and approved to burn manufactured and natural smokeless fuels that appear in the HETAS guide. A current list of approved fuels can be found at http://hetas.co.uk/public/hetas_guide.html Approval does not cover the use of other fuels either alone or mixed with the suitable fuels...
  • Page 13: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Parkray Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered from...
  • Page 14: Chimney And Flue Ways

    Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle will need to be removed from its supports in order to sweep the chimney (see assembly instructions).
  • Page 15: Stove Spares

    STOVE SPARES RIGHT HAND DOOR Right Hand Door (CH08/004) Door Glass (CH08/028) Glass Gasket Glass Clip (CH08/029) (HHR08/046) Glass Clip Screw (FSJM05008SS) Door Knob (CHC04/010) M8 Full Nut (FNFN08) Catch Shaft (HHR08/111) Circlip (FLRX07) Door Slider (CH06/006) M8 Full Nut (FNFN08) Slider Knob (HHR08/045) Catch (HMSS04/037) LEFT HAND DOOR...
  • Page 16 STOVE BODY ASSEMBLY - PART SECTION - MULTIFUEL Flue Collar (CH08/030) Flue Cover (CH08/031) Baffle (HHR08/163) Riddling Support (CNS09/027) Primary Air Deflector Multifuel (HHR08/088) Riddling Bar – Lower Catch Bar – Drop in (CNS09/015) (CNS09/004) Riddling Bar – Upper (CNS09/016) Cam Bar Ashpan (HHR08/008)
