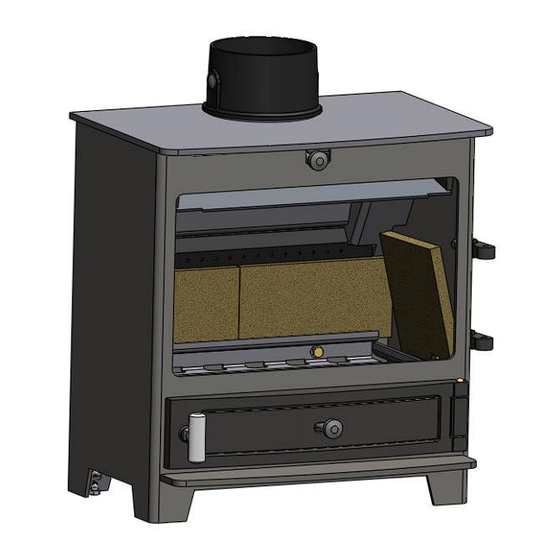

Parkray Derwent 5 Installation And Operating Instructions Manual

Parkray Derwent 5 Installation And Operating Instructions Manual

Advertisement

D E R W E N T
D E R W E N T
D E R W E N T
D E R W E N T
C L E A N B U R N
C L E A N
C L E A N
C L E A N
Installation and Operating Instructions
An accredited competent person must carry out the installation of this
appliance; alternatively, your local Building Control Officer can approve the
completed installation, should a non-accredited engineer undertake the
installation. It is an offence, under UK law, not to comply with this advice.
Please hand these instructions to the stove user when the installation is
complete. Leave the system ready for operation and instruct the user in the
correct use of the appliance and operation of controls
5 5 5 5
B U R N
B U R N
B U R N
S T O V E
S T O V E
S T O V E
S T O V E
V05.10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Derwent 5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Parkray Derwent 5

  • Page 1 D E R W E N T D E R W E N T D E R W E N T D E R W E N T 5 5 5 5 C L E A N C L E A N B U R N B U R N C L E A N C L E A N...
  • Page 2: Technical Specification

    Derwent 5 Technical Specification Stove Mass 75kg Wood Total Efficiency 76.8 % Nominal Heat Output 4.6 KW Mean CO Emission (at 13% O2) 0.43 % Mean Flue Gas Temperature 271 °C Flue Gas Mass Flow 4.3 g/s This appliance is not suitable for use in a shared flue...
  • Page 3: Important Warning

    Assembly Instructions PLEASE READ THESE INSTRUCTIONS CAREFULLY It is important that your stove is correctly installed, as Parkray Limited cannot accept responsibility for any fault arising through incorrect use or installation. Important Warning This stove must not be installed into a chimney that serves any other heating appliance.
  • Page 4: Fire Bricks

    Fire Bricks The Fire Bricks, in this appliance, are factory fitted. The following set of photos show the removal sequence that you will need to employ when servicing your Parkray Stove. Side Bricks Slide the Side Brick towards the front of the stove and lift out.
  • Page 5: Installation Instructions

    Installation Instructions These instructions cover the basic principles to ensure satisfactory installation of the stove, although detail may need slight modification to suit particular local site conditions. In all cases the installation must comply with current Building Regulations, Local Authority Byelaws and other specifications or regulations as they affect the installation of the stove.
  • Page 6: Installation

    Installation Chimney The chimney height and the position of the chimney terminal should conform to Building Regulations. Check that the chimney is in good condition, dry, free from cracks and obstructions. The diameter of the flue should not be less than 125mm and not more than 200mm. If any of these requirements are not met, the chimney should be lined by a suitable method.
  • Page 7: Material Clearances

    Material Clearances The stove can be recessed in a suitable sized fireplace but a permanent free air gap of at least 150mm must be left around the sides and top and at least 50mm at the back of the stove to obtain maximum heat output and for access to the rear of the stove.
  • Page 8: Commissioning And Handover

    Commissioning and Handover Upon completion of the installation, allow a suitable period of time for any fire cement and mortar to dry out. A small fire may then be lit and checked to ensure the smoke and fumes are taken from the stove up the chimney and emitted safely to atmosphere.
  • Page 9: Aerosol Sprays

    Operating Instructions This appliance is not suitable for use in a shared flue This appliance should not be operated with the doors open Aerosol Sprays Do not use an aerosol spray on or near the stove when it is alight. Air Controls This stove has been designed to burn cleaner and more efficiently than a conventional wood burning stove.
  • Page 10: Riddling Grate

    Riddling Grate Your Parkray Stove is fitted with a locomotive type grate. So that de-ashing can be carried out cleanly and easily, it is riddled from the outside of the stove with the doors closed. To burn wood, push the operating tool up and away from you.
  • Page 11: Recommended Fuels

    Recommended Fuels Parkray Stoves recommend that wood logs be burnt in this appliance. Only authorised smokeless fuels may be used in smoke control areas. Warning!- Petroleum coke fuels or household waste must not be burnt on this appliance. This appliance should not be used as an incinerator. No liquid fuels should be burnt on this appliance.
  • Page 12: General Maintenance

    Rope Check the rope around the door and glass. If rope is becoming detached, use Parkray Stoves rope glue to reattach it. If the rope is in a poor condition, a replacement rope kit may be ordered...
  • Page 13: Troubleshooting

    Chimmney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels.
  • Page 14: Stove Spares

    STOVE SPARES SINGLE DOOR Door Door Glass (HRR05/012) (HRR05/018) Door Knob Glass Gasket (DER05/001) (HRR05/019) Door Spacer Glass Clip (DER05/002) (HHR08/046) Handle Nut (HCE05/055) Glass Clip Screw (FSJM05008SS) Shaft (DER05/003) Circlip Catch (FLRX07) (HMS04/037) ASH DOOR Catch (HMS04/037) Ash Door (HRR05/010) Door Knob Ash Door Cover...
  • Page 15 STOVE BODY ASSEMBLY – PART SECTION Flue Collar (CH05/010) Flue Cover (CH05/011) Side Brick (HRR05/026) Baffle (HRR05/024) Rear Brick – M/F (HRR05/025) Turbo Bar (HCE05/048) Cam Bar (HMS06/011) Riddling Support (HHR05/023) Ashpan (HRR05/027) Riddling Bar - Upper (CNS06/002) Cam Bar Plate Riddling Bar - Lower (HRR05/009) (CNS06/001)
