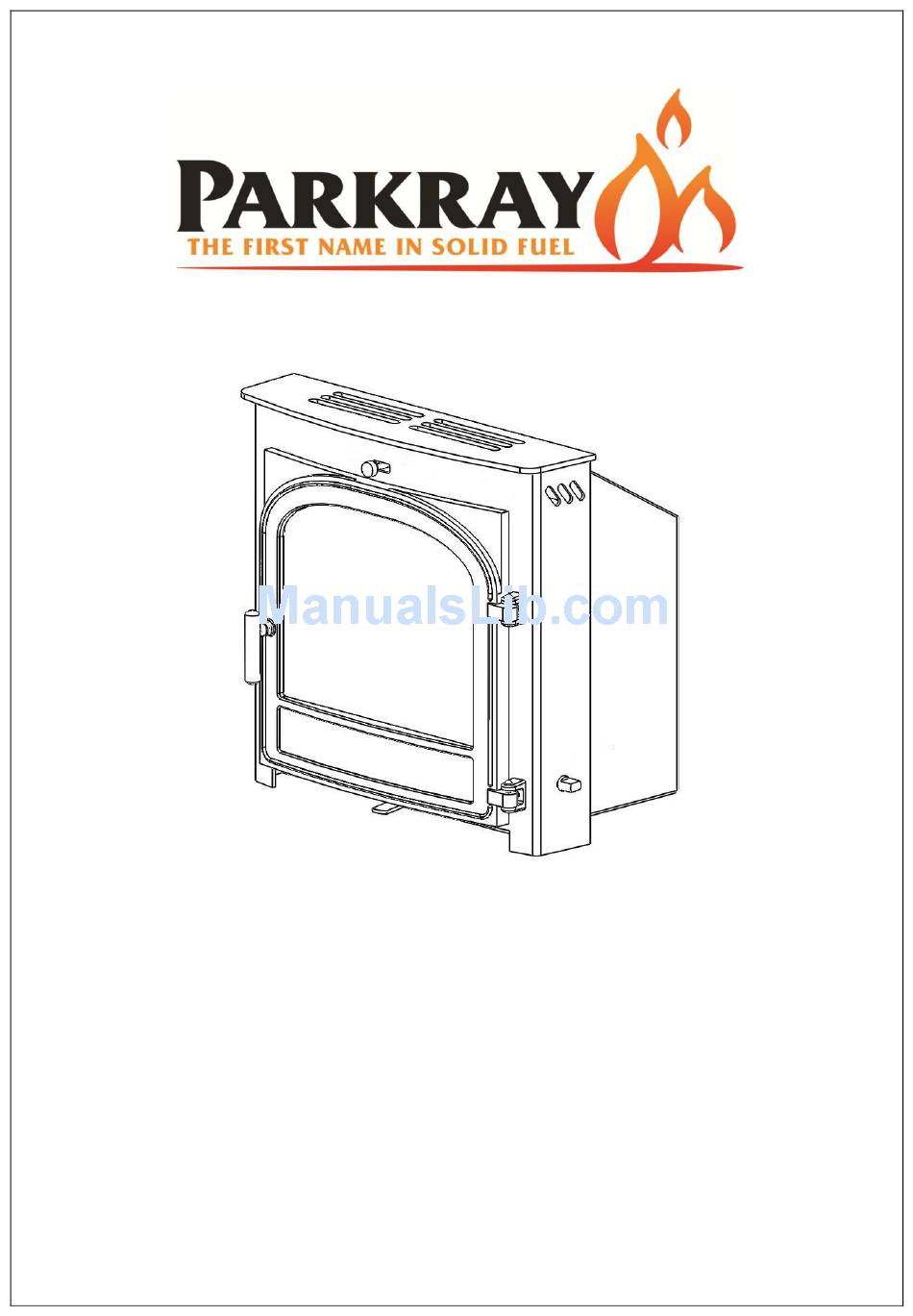

- Page 1 Inset Chevin 8 Multi-Fuel Inset Stove Installation and Operating Instructions JINCHI08 RevC 21/05/14...
- Page 2 Find out if you are in a Smoke Control Area by contacting your Local Authority. The Inset Chevin 8 has been fitted with a permanent bypass that prevents closure of the secondary air slider. Removal of this will lead to the appliance potentially causing smoke emissions. Without the permanent bypass in place the appliance is not an exempt appliance and so may leave the householder liable for a fine up to £1000.
-
Page 3: General Guidance
ANDLING General Guidance Adequate facilities must be available for loading, unloading and site handling. It is important that your stove is correctly installed as Hunter stoves cannot accept responsibility for any EMENT fault arising through incorrect use or installation. Some types of fire cement are caustic and should not These instructions cover the basic principles to be allowed to come into contact with the skin. -
Page 4: Warning Note
Place a fireguard in front of stove MISSION Check the chimney breast for signs of excessive WARNING NOTE heat. Properly installed, operated and maintained, this If the wall is becoming excessively hot, move appliance will not emit fumes into the dwelling. The furniture away. -
Page 5: Hearth Requirements
UPPLY The room or space containing this appliance The walls surrounding the stove will become hot and should therefore be finished in a heat resistant should have purpose provided ventilation plaster. (where necessary) in accordance with Building Regulations. Do not hang pictures, plasma screen televisions or ornaments above the stove, as these could be Due consideration should be given to air damaged and could potentially create a fire hazard. -
Page 6: Flue Draught
The diameter of the flue should not be less (with baffle removed), a soot door must be than 150mm and not more than 200mm. fitted in a suitable position. If these requirements are not met the chimney should be lined by a suitable method. If there is no existing chimney then either a prefabricated block chimney in accordance with Building Regulations Approved Document... -
Page 7: Fire Surrounds
LEARANCES TO OMBUSTIBLE ATERIALS EMOVING INTERNAL COMPONENTS All internal components must be removed prior to Excluding some fire surround installations (see below) fitting the stove. This will make handling the stove there should be no combustible material within easier; allow access to fixings and the flue outlet; as 200mm of either side of the stove or 275mm above. - Page 8 4. Slide the side bricks out. 8. Remove the grate bars, starting with the high bars. 5. Remove the rear bricks. 6. Remove the lower rear brick support using the finger hole provided to lift it from its slots. 9. Remove the firebox side plates. 7.
- Page 9 12. Lift out the rear cam bar along with the cam bar 10. Remove the catch bar/front plate. linkage arm. 13. Lift out the primary air duct. 14. Lift out the primary air valve slider. 11. Detach the cam bar linkage arm from the front cam bar, rotate the cam bar and lift it out.
-
Page 10: Flue Connection
is made in the chimney breast (see section on connecting to a masonry chimney). Sufficient water should be added so that when a handful of the mixture is squeezed no more than one or two drops of water are released. ONNECTION If connecting to a stainless steel liner, a liner clamp 16. - Page 11 Insert the side plate so that the front end of it locates under the front plate/catch bar as shown. Ensure that the back end of the side plate is outside the rear grate support as shown. Alternatively a connection can be made using a register plate although it will be necessary to allow access for fitting the flue pipe to the register plate, infilling with vermiculite concrete and sealing all...
-
Page 12: Commissioning & Handover
& H OMMISSIONING ANDOVER RIMARY Upon completion of the installation allow a suitable The slider at the bottom of the stove controls the period of time for any fire cement and mortar to dry primary air. This provides a conventional air draught out. -
Page 13: Reduced Combustion
IDDLING RATE EFUELLING Your Hunter stove is fitted with a locomotive type With a 2.4kg load of wood, the stove will need to be grate. So that de-ashing can be carried out cleanly refuelled approximately once every 1.1 hours. and easily, it is riddled from the outside of the stove with the doors closed. -
Page 14: General Maintenance
N.B. Refer to the ‘Removing Internal Components’ Clean Air Act requirements. section of the installation instructions for details on how to remove each component. The Inset Chevin 8 has been recommended as suitable for use in Smoke Control Areas when ECESSARY burning wood logs. -
Page 15: Troubleshooting
Rope- Check the rope around the door. If rope is Trouble Shooting becoming detached, use Hunter Stoves rope glue to reattach it. If the rope is in a poor condition, a IRE WILL NOT BURN replacement rope kit may be ordered from the Check that –... -
Page 16: Spares Information
Spares Information Single Door Spares Door Glass Single-Door (HCE09/102) (HCE09/008) Glass Clip Glass Gasket (HHR08/046) (HCE09/101) Glass Screw (FSJM05008SS) Door Handle Assembly (AVI05/ARRT/011MB) Rope Sealing Kit (SCPHCE09SDSK) Spares Information Double Door Spares L.H. Door R.H. Door (TDI05/008) (HCE09/009) Door Glass Door Glass (HCE09/031) (HCE09/031) - Page 17 Spares Information Single Door Body Spares JINCHI08 RevC 21/05/14...
- Page 18 Spares Information Double Door Body Spares JINCHI08 RevC 21/05/14...
