- Page 1 DERWENT CONSORT 4 CONSORT 5 COMPACT 5 5 SLIMLINE CONSORT 7 9 SLIMLINE CONSORT 9 CONSORT 15 MULTIFUEL AND WOOD CE VII MODELS Instructions for: Installation/Operating/Maintenance/Servicing JINCNSDA REV B 06/06/2019...
-
Page 2: Stove Models

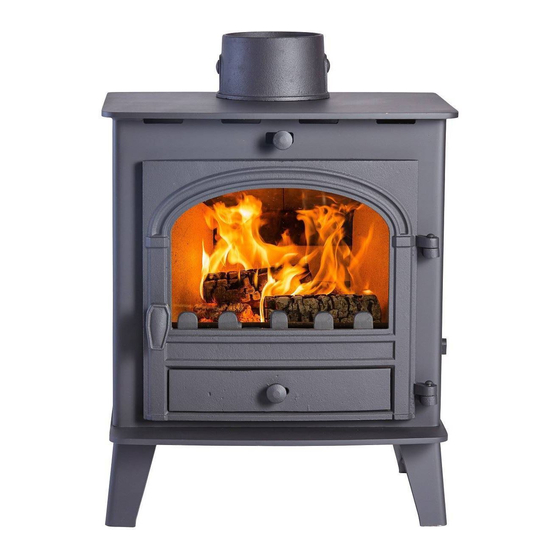

STOVE MODELS DERWENT CONSORT 4 CONSORT 5 CVSDR05FM CVCN04FM/CVCN04FW CVSCS05FM/CVSCS05FW CONSORT 5 COMPACT CONSORT 5 SLIMLINE CONSORT 7 CVSCNC05FM/CVSCNC05FW CVCNS05FM/CVSCNS05FM CVCN07FM/CVSCN07FM CVCNS05FW/CVSCNS05FW CVCN07FW/CVSCN07FW CONSORT 9 SLIMLINE CONSORT 9 CONSORT 15 CVCNS09FM/CVSCNS09FM CVCN09FM/CVSCN09FM CVCN15FM/CVSCN15FM CVCNS09FW/CVSCNS09FW CVCN09FW/CVSCN09FW CVCN15FW/CVSCN15FW... -
Page 3: Table Of Contents
Welcome to the Hunter Stoves family and thank you for purchasing a Parkray Consort stove. This stove was designed and built to be a high-performance heating appliance, and we hope it will bring you great enjoyment. The natural environment is important to us, so our stoves are manufactured to provide you with a clean and efficient burn that will keep you warm through cold winter nights. -
Page 4: Technical Specification
Find out if you are in a Smoke Control Area by contacting your Local Authority. The Derwent, Consort 4, Consort 5 and Compact 5 and Consort 5 Slimline have been fitted with a permanent stop that prevents closure of the secondary air slider. Removal of this will lead to the appliance potentially causing smoke emissions. - Page 5 Technical Specification Energy Efficiency Class Nominal Heat Output Wood 5.4kW 4.9kW 9.1kW 11.9kW Smokeless 6.5kW 7.8kW 9.0kW Fuel Energy Efficiency Efficiency Wood 75.9% 72.4% 78.9% 78.6% Efficiency Smokeless 67.3% 68.5% 79.4% Fuel Mean CO (@13% O₂) Wood 0.27% 0.25% 0.38% 0.57% Mean CO (@13% O₂) Smokeless...
-
Page 6: Important Information
PLEASE READ THESE INSTRUCTIONS PRIOR TO INSTALLATION AND OPERATION. KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE AND SERVICING. THIS APPLIANCE WILL BECOME VERY HOT WHEN USED IN ACCORDANCE WITH THESE INSTRUCTIONS, HUNTER STOVES RECOMMEND THAT AN APPROVED GUARD IS USED TO PROTECT THE YOUNG, ELDERLY OR INFIRM FROM HARM. -
Page 7: Safety
Metal Parts When installing or servicing this stove, care should be taken to avoid the possibility of personal injury. Modification No unauthorised modification of this appliance should be carried out. Safety WARNING – This appliance will be hot when in operation and due care should be taken. The supplied operating tool or glove may be used to open the door and operate the air controls. -
Page 8: Remove Internal Components
Removing Internal Components All internal components must be removed prior to fitting the stove. This will make handling the stove easier; allow access to fixings and the flue outlet; as well as protect the internal components from damage during the installation process 1. - Page 9 Baffle/Throat Plate Lift the Baffle and slide to the left. When the right side of the Baffle clears the Baffle Support, lower the Baffle into the Fire Box and remove. Stove Assembly Flue Collar Top or rear outlet Place the flue collar gasket on the outlet to be used. Blanking Plate Place the bolts downwards through the fixing holes (head side upwards).
-
Page 10: Appliance Dimensions
Re-Assembling The Stove Refit all the internal parts by following the ‘removing internal component’ instructions in reverse order. APPLIANCE DIMENSIONS DERWENT CONSORT 4 CONSORT 5... -
Page 11: Slimline Consort
COMPACT 5 CONSORT 5 SLIMLINE CONSORT 7... -
Page 12: Consort
CONSORT 9 SLIMLINE CONSORT 9 CONSORT 15... -
Page 13: Pre Installation Requirments
76mm to the chimney walls. The length of any horizontal run of flue pipe must not exceed 125mm (Derwent, Consort 4, Consort 5, Compact 5, 5 Slimline and 9 Slimline) and 152mm (Consort 7, Consort 9, Consort 15). -
Page 14: Legal Requirements
0800 013 0900 Air Supply The room or space containing this appliance does not need a permanent, unobstructed air opening – Derwent, Consort 4, Consort 5, Compact 5, 5 Slimline, 9 Slimline. The following require a permanent, unobstructed air opening of: - Consort 7 –... -
Page 15: Clearances
If the existing construction does not meet this pre-requisite, suitable measures (e.g. load distributing plate). Care should be taken to level the stove using the adjusting screws in the feet. Material Clearances Minimum Derwent Consort Compact Consort Slimline Consort... -
Page 16: Commissioning And Handover
Free-Standing (Not Consort 9 Or 15) If the stove is not to stand in a recess, it may stand wholly above a hearth made of non-combustible board / sheet material or tiles, at least 12mm thick. The hearth should extend at least 150 mm from the sides and rear of the stove, and at least 300 mm from the front of the stove. -
Page 17: Operating Instructions
on the stove and warn them to use only the recommended fuels for the stove. Advise the user on what to do should smoke or fumes be emitted from the stove. The user should be warned to use a fireguard to BS8423 in the presence of children, aged and/or infirm persons. Hunter Stoves Group also recommend that a CO alarm is fitted into the room where the appliance is located. - Page 18 Please Note Your Building Insurance Company may require you to inform them of this new installation and that the work has been carried out correctly. Please check your policy to ensure that it is still valid when this installation is complete. Using The Appliance For The First Time SAFETY ADVICE During the first operation it is highly likely that fumes and smells maybe produced as part of the normal heat...
- Page 19 Lighting the Stove To light the stove, open the primary and secondary air controls fully. Light one or two firelighters placed centrally on the grate, allowing the flames to become established before placing several pieces of small dry kindling in a criss-cross fashion above the firelighters, taking care not to smother the fire. Close the stove door.
- Page 20 Extended Burning (Solid Mineral Fuel) The stove can be banked up for extended burning. When burning solid fuel, empty the ashpan. Open air controls and let the fire burn brightly for a short period. Refuel and close both air controls, the exact setting required will depend on the fuel used and the chimney draw so some practice may be necessary.
-
Page 21: Maintenance & Servicing
Maintenance And Servicing WARNING! NO unauthorised modification of this appliance should be carried out. IMPORTANT! In order to ensure continued compliance with current Building Regulations and Local Authority Byelaws, this appliance requires regular maintenance by a competent person. N.B. Refer to the ‘Removing Internal Components’ section of the installation instructions for details on how to remove each component. - Page 22 Chimney and Flue ways It is important that the chimney, flue ways and any connecting flue pipe are swept regularly. This means at least once a year for smokeless fuels and at least twice a year for wood and other fuels. The baffle will need to be removed from its supports in order to sweep the chimney (see assembly instructions).
-
Page 23: Troubleshooting
TROUBLESHOOTING ISSUE CAUSE RESOLUTION Problem starting the fire and Low flue draught Speak to your installer keeping it burning Wood with moisture content over 20% Ensure use of dry seasoned wood with less than 20% moisture content Unable to control fire High flue draught Speak to your installer Short burn time... - Page 24 ISSUE CAUSE RESOLUTION Creosote build-up in chimney Wood with moisture content over 20% Use dry seasoned wood (less than 20% moisture content). Operate at a high temperature for short periods each time the appliance is used to avoid large build-ups of tars and creosotes.
- Page 25 Consort 9 CNS09035 Consort 15 CNS15030 ROPE SEAL KIT Derwent SCPKRSK Consort 4 SCPC4RSK Consort 5/5C SCPC5RSK Consort 7/5S SCPC57SRSK (DOUBLE DOOR) SCPSC57RSK (SINGLE DOOR) Consort 9S/9/15 SCPC915RSK (DOUBLE DOOR) SCPC915SDRSK (SINGLE DOOR) Spares Information Derwent – Single Door only...
- Page 26 Consort 4 – Single Door only Consort 5 and 5 Compact – Single Door only Consort 5 Slimline and Consort 7 Double Door - LH...
- Page 27 Double Door – RH Single Door Consort 9 Slimline, Consort 9 and Consort 15 Double Door - LH...
- Page 28 Double Door – RH Single Door TOP AIR DEFLECTOR MODEL GASKET PLATE DEFLECTOR SLIDER SHAFT KNOB Derwent HH04088 HRR05037 HH04078 HH04090 HRR05007 HHR08045 Consort 4 HCR06076 HCR06108 HCR06077 HCR06072 HAW04017 HHR08045 Consort 5/5C HH04088 HH04089 HH04078 HH04090 HAW04017 HHR08045 Consort 5 Slimline/7...
-
Page 29: Spares
BODY ASSEMBLY SPARES DERWENT CONSORT 4 – MULTIFUEL CONSORT 4 – WOOD... - Page 30 CONSORT 5/5 COMPACT – MULTIFUEL CONSORT 5/5 COMPACT - WOOD CONSORT 5 SLIMLINE - MULTIFUEL...
- Page 31 ITEM NO. PART NUMBER DESCRIPTION QUANTITY HH06087 PLATE, TOP AIR (BOTH DOOR TYPE) HH06086 SLIDER, TOP AIR (BOTH DOOR TYPE) HH06088 GASKET, TOP, AIR (BOTH DOOR TYPE) HH06108 DEFLECTOR, TOP AIR (SINGLE DOOR) HH06089 DEFLECTOR, TOP AIR (DOUBLE DOOR) HCE05021 SHAFT, TOP AIR (BOTH DOOR TYPE) HHR08045 SLIDER KNOB, MATT BLACK...
- Page 32 ITEM NO. PART NUMBER DESCRIPTION QUANTITY HH06087 PLATE, TOP AIR (BOTH DOOR TYPE) HH06086 SLIDER, TOP AIR (BOTH DOOR TYPE) HH06088 GASKET, TOP, AIR (BOTH DOOR TYPE) HH06108 DEFLECTOR, TOP AIR (SINGLE DOOR) HH06089 DEFLECTOR, TOP AIR (DOUBLE DOOR) HCE05021 SHAFT, TOP AIR (BOTH DOOR TYPE) HHR08045 SLIDER KNOB, MATT BLACK...
- Page 33 ITEM NO. PART NUMBER DESCRIPTION QUANTITY HH06087 PLATE, TOP AIR (BOTH DOOR TYPE) HH06086 SLIDER, TOP AIR (BOTH DOOR TYPE) HH06088 GASKET, TOP, AIR (BOTH DOOR TYPE) HH06108 DEFLECTOR, TOP AIR (SINGLE DOOR) HH06089 DEFLECTOR, TOP AIR (DOUBLE DOOR) HCE05021 SHAFT, TOP AIR (BOTH DOOR TYPE) HHR08045 SLIDER KNOB, MATT BLACK...
- Page 34 ITEM NO. PART NUMBER DESCRIPTION QUANTITY HH06087 PLATE, TOP AIR (BOTH DOOR TYPE) HH06086 SLIDER, TOP AIR (BOTH DOOR TYPE) HH06088 GASKET, TOP, AIR (BOTH DOOR TYPE) HH06108 DEFLECTOR, TOP AIR (SINGLE DOOR) HH06089 DEFLECTOR, TOP AIR (DOUBLE DOOR) HCE05021 SHAFT, TOP AIR (BOTH DOOR TYPE) HHR08045 SLIDER KNOB, MATT BLACK...
- Page 35 CONSORT 9 SLIMLINE - WOOD CONSORT 9 – MULTIFUEL CONSORT 9 - WOOD...
- Page 36 CONSORT 15 – MULTIFUEL CONSORT 15 WOOD...
-
Page 37: Installation & Commissioning Checklist
INSTALLATION & COMMISSIONING CHECKLIST PURCHASE INFORMATION Dealer/Retailer Name Address Telephone Number Email Date Purchased INSTALLER INFORMATION Installer Name Address Telephone Number Email APPLIANCE INFORMATION Date Installed Appliance Stock Code Appliance Description Serial Number COMMISSIONING CHECK (Complete & Sign) Does the chimney/flue system meet the appropriate standard? Has the chimney/flue system been swept and passed the soundness test? Has this appliance passed the flue draught test? Please write down the flue draught reading:... -
Page 38: Service Records
SERVICE RECORDS... -
Page 39: Full Warranty Information
Hunter Stoves Group Ltd Extended 5 and 10 Year Warranty 2 Year Standard Warranty Any appliance bought through the showroom of an authorised Hunter Stoves Group dealership will automatically be covered by our standard 2-year conditional guarantee. However, this standard 2-year warranty can be extended to a 5 year or 10-year conditional warranty dependent on the model type (5 years- Boiler model and Gas models, 10 years- Room heater). - Page 40 Paint and Surface Coverings The paint or surface covering of the appliance will be covered (for 2 years after installation) provided the warranty conditions are met. However, damage due to the following events will not be covered: 1. Damage to the paint surface caused by the appliance being stored in a damp and cold environment is not covered under warranty.
