Chapter 2
Installing the Device
Section 2.1.1

Mounting the Device on a DIN Rail

For DIN rail installations, the RMC can be equipped with a DIN rail bracket pre-installed on the back of the
chassis. The bracket allows the device to be slid onto a standard 35 mm (1.4 in) DIN rail.
To mount the device to a DIN rail, do the following:
1. Align the slot in the bracket with the DIN rail.

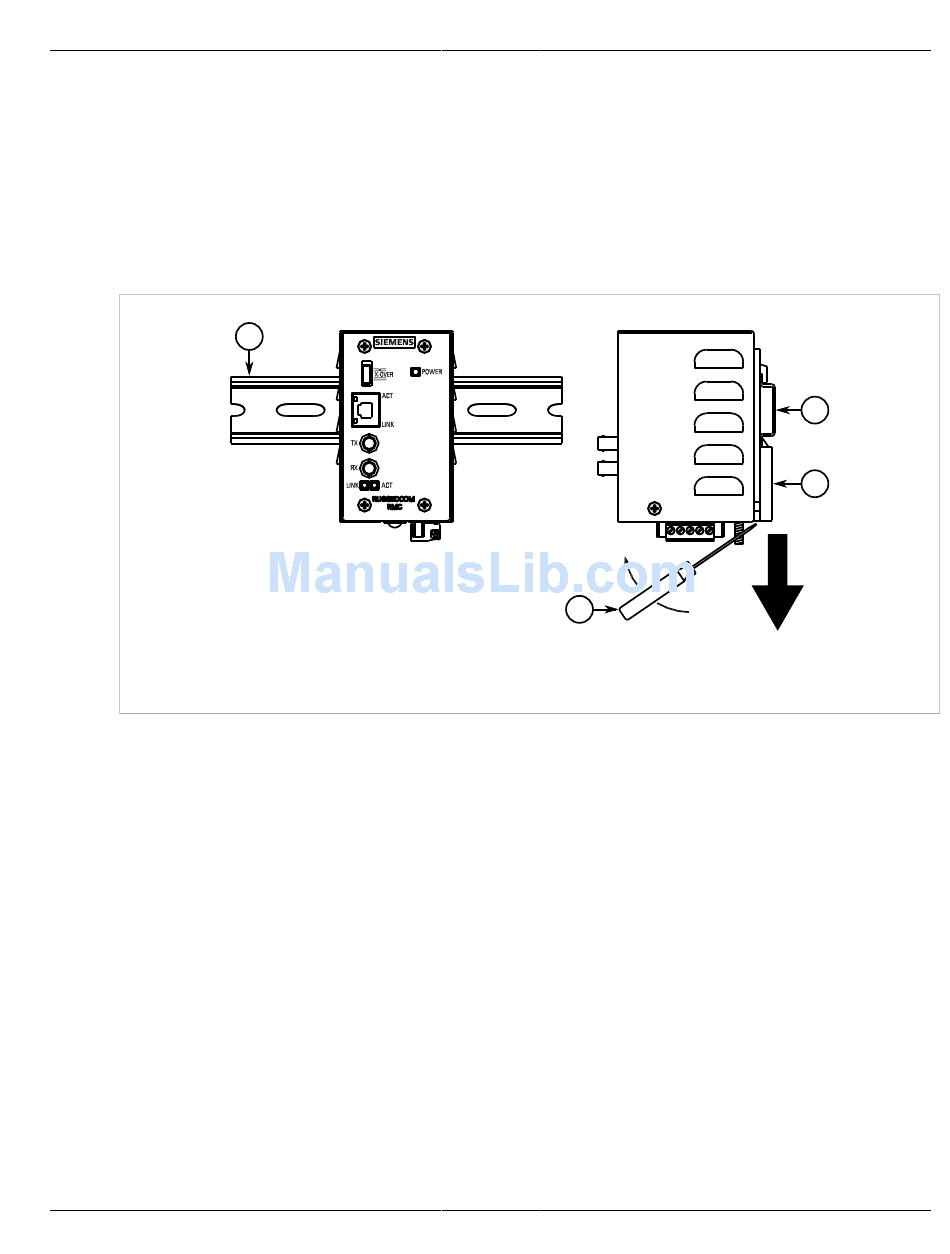

Figure 2: DIN Rail Mounting
1. DIN Rail 2. DIN Rail Bracket
2. Pull the release on the bracket down and slide the device onto the DIN rail. If necessary, use a screw driver
to unlock the release. Let go of the release to lock the device in position.
Section 2.1.2

Mounting the Device to a Panel

To mount the device to a panel, do the following:
1. Place the panel adapter against the panel and secure it with screws.
4
1
3. Screw Driver
3
