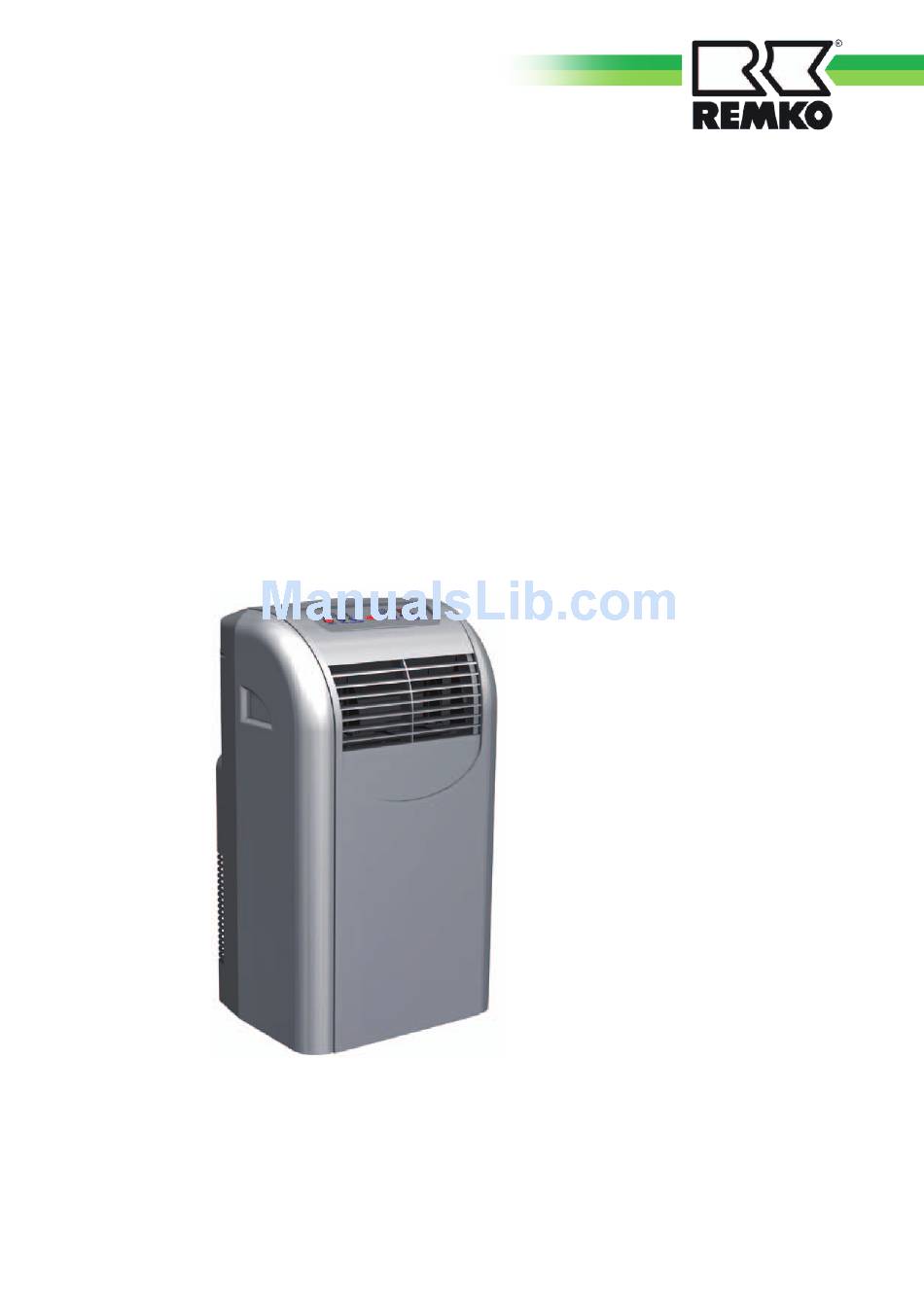

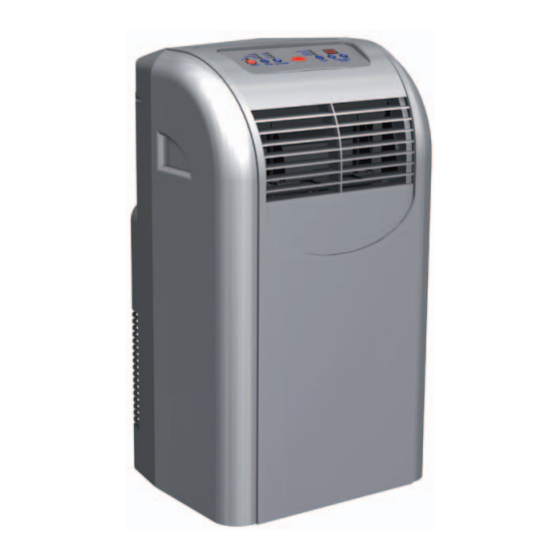

- Page 1 REMKO MKT MKT 290, MKT 290 S-Line Mobile Air Conditioner Operation · Technology · Spare Parts Ausgabe GB – W12...
-
Page 3: Table Of Contents
Contents Safety notes Environmental protection and recycling Warranty Intended use Transport and packaging Equipment description Operation Bevore Commissioning Commissioning Shut-down 9-10 Care and maintenance Installation scheme of the wall through (optional) Troubleshooting and customer service Electrical connection diagram Exploded view Spare parts lists Technical data EC-Declaration of conformity... -
Page 4: Safety Notes
REMKO GmbH & Co. KG Mobile units must be set up ■ when performing installation, and placing the unit in service. -
Page 5: Transport And Packaging
Transport and Packaging Front view The equipment is shipped in sturdy transport packaging. Immediately Control panel Invrared receiver check the equipment on delivery and make note of any damage or missing parts on the delivery note and inform the forwarding agent and your contractual partner. -
Page 6: Operation
REMKO MKT Operation The system can be operated by means of the control panel on the device or via the standard infrared remote control unit. The functional operation of the buttons among themselves is identical, however, the designation can vary. The batteries must be correctly inserted before the infrared remote control is used. - Page 7 „Cool“ mode „Dehumidify“ mode „Timer“ time delay 1. Attach the air outlet hose to 1. Attach the air outlet hose to the the wall bushing or the win- wall bushing or the window. You can turn the device on and off dow.
-
Page 8: Bevore Commissioning
REMKO MKT Bevore Commissioning The device is placed at the desired Never operate Make sure that the deflector ■ ■ location, with the outlet side to the the unit with- piece from the top slides down room. Note the list the following... -
Page 9: Commissioning
Commissioning Shut-down Wall lead-through Prior to initial operation, the air Temporary Shut-down intake and outlet openings must The hose supplied is firmly con- be inspected for foreign bodies If the unit is to be taken out of nected to a wall lead-through. and the air in take filter for dirt. -
Page 10: Care And Maintenance
Clean the air filters after REMKO GmbH & Co. KG or your no more than 100 hours of ope- sales partner will be be pleased to ration. If the air is heavily conta-... -
Page 11: Installation Scheme Of The Wall Through (Optional)
Installation scheme of the wall through (optional) Installation example Protection grill Trap Sealing cap Telescopic pipe Installation Instructions 1. Create a core hole in the out- 3. Wall the telescopic pipe into the 6. When taking the device out side wall (max.- wall thickness core hole in such a way that it is of service, for example, at the of 480 mm) with a diameter of... -
Page 12: Troubleshooting And Customer Service
REMKO MKT Troubleshooting and customer service The unit has been manufactured using state-of-the-art production methods and tested several times to ensure its correct function. If malfunctions should occur, please check the unit as detailed in the list below. If all func- tional checks have been carried out and the device still fails to operate properly, then please notify your nearest specialist dealer. -
Page 13: Electrical Connection Diagram
Electrical connection diagram Evaporator fan White Control panel Condenser Orange Gelb Mains plug Hi Med Lo Brown RL101 COMP Micro switch (Reservoir) Temperature sensor Condenser Condenser Compressor Reservoir condenser Evaporator fan motor... -
Page 14: Exploded View
REMKO MKT Exploded view We reserve the right to modify the dimensions and constructional design as part of the ongoing technical development process. -
Page 15: Spare Parts Lists
Spare parts list Designation MKT 290 MKT 290 From series number 77285001 77285001 Unit bottom 1106850 1106850 Transport roller 1106851 1106851 Condensate pump 1106852 1106852 Condenser 2.5 µF (evaporator fan) 1106853 1106853 Float regulator (reservoir) 1106854 1106854 Cover (reservoir) 1106855... -
Page 16: Technical Data
REMKO MKT Technical Data MKT 290 Device type MKT 290 Operating mode Mobile Air Conditioning Unit for cooling Nominal cooling capacity 2,94 Energy efficiency class, cooling Energy efficiency factor EER 2,69 Application range (room air volume), approx. m³ Temperature setting range °C... -
Page 17: Ec-Declaration Of Conformity
Air conditioning and heating technology Im Seelenkamp 12 D - 32791 Lage Equipment (machinery) - Implementation: Mobile Air Conditioning Unit for cooling Series / Model: REMKO MKT 290, MKT 290 S-Line Series / Class Number: 772..773..Applicable regulations :... - Page 18 Notes...
