Vendor: S000238
ASSEMBLY INSTRUCTIONS

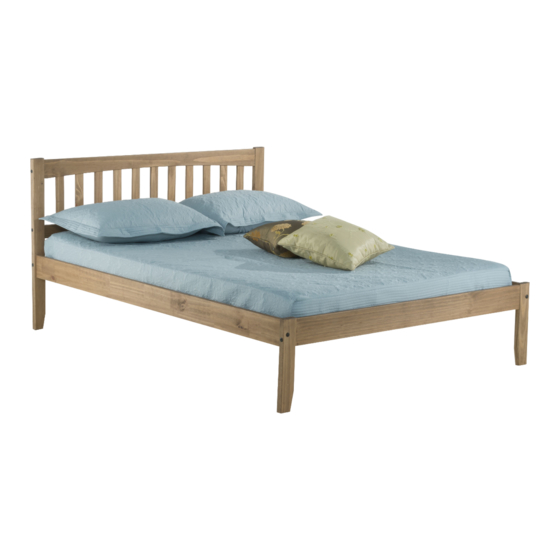

PORTO 4' BED
IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR PORTO 4' BED
FRAME.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT jump on this bed frame.
DO NOT use this bed frame if any parts are missing, damaged or worn.
DO NOT use this bed frame unless all fixings are secured.
Always use on a level, even surface.
WARNING: If this bed is placed on a non-carpeted floor you must place some protection under all legs to stop
the bed frame from moving. If this is not adhered to there is no guarantee if the bed frame collapses.
CARE & MAINTENANCE:
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the bed frame as this will damage the legs.
Always lift the bed with two people to reposition.
Keep any sharp objects away from the frame.
www.birlea.com
Page 1 of 5
Advertisement
Related Manuals for Birlea PORTO 4 BED
Summary of Contents for Birlea PORTO 4 BED
- Page 1 Periodically check all screws & fixings to ensure they are secure. DO NOT push the bed frame as this will damage the legs. Always lift the bed with two people to reposition. Keep any sharp objects away from the frame. www.birlea.com Page 1 of 5...
- Page 2 Vendor: S000238 Parts List Hardware List (found in Box 1) Part Description Part Description Headend Panel 30 mm Wooden Dowel Right Headend Post 40 mm Wooden Dowel Left Headend Post 16 mm Screw Side Rail 30 mm Screw Slat 32 mm Bolt Centre Rail Support Leg 50 mm Bolt...
- Page 3 Vendor: S000238 Step 1: Attach the support legs (7) to the centre rail (6) using hardware parts G and M. Insert hardware part B to the side rails (4) using a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Insert hardware part A to the headend panel (1), footend panel (8) and headend rail (11) using a small mallet (not provided).
- Page 4 Vendor: S000238 Step 4: Attach the right footend post (9) and left footend post (10) to the footend panel (8) using hardware parts H and M. DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Fix hardware part L to the headend rail (11) and footend panel (8) using hardware part C and a screwdriver (not provided).
-
Page 5: Additional Information
• If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com...
