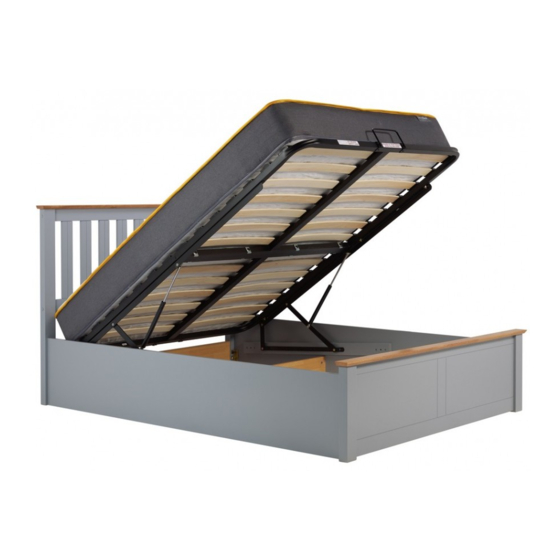

Assembly Video
For a step by step guide on how
to build our Phoenix Ottoman
Bed visit our YouTube channel
'BirleaFurnitureLtd' or
alternatively scan the below
code on your smart phone.
How to scan a QR code from an apple device
Step One: Open up the camera app
Step Two: Hold the device's camera up to the QR code
Step Three: Your Apple devise will automatically recognise the QR code and
provide you with a link to the video.
How to scan a QR code from an android device
Step One: Download the QR Code reader application from the Play Store.
Step Two: Open the QR code application and open the camera.
Step Three: Your Android devise will automatically recognise the QR code
and provide you with a link to the video.
How to scan a QR code from a Window's device
Step One: Open up the camera app
Step Two: Hold the device's camera up to the QR code
Step Three: Your Window devise will automatically recognise the QR code
and provide you with a link to the video.
Please ensure that you devise is up to date with the latest operating system.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Birlea PHONENIX
Summary of Contents for Birlea PHONENIX
- Page 1 Assembly Video For a step by step guide on how to build our Phoenix Ottoman Bed visit our YouTube channel ‘BirleaFurnitureLtd’ or alternatively scan the below code on your smart phone. How to scan a QR code from an apple device Step One: Open up the camera app Step Two: Hold the device’s camera up to the QR code Step Three: Your Apple devise will automatically recognise the QR code and...
-
Page 2: Health And Safety
Vendor: S000307 ASSEMBLY INSTRUCTIONS PHONENIX OTTOMAN 4’ BED IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR PHOENIX OTTOMAN 4’ BED FRAME. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT jump on this bed frame. - Page 4 Vendor: S000307 Hardware List (Found in box#) Parts Description Q t y ~渗恁 Mini Fix 怎 8 x 30 mm Wooden Dowel 尸 Metal Corner Block - ＿ M6 x 90 mm Barrel Nut �� M6 x 16 mm JCBC Bolt 沪...
-
Page 5: Front View
Vendor: S000307 Step 1: Attach the headboard frame (2) and back storage panel (9) to the left wooden post (3) and right wooden post (4). Secure the headboard frame using hardware parts B, D and 0, then secure the back storage panel with hardware parts B,E and I. - Page 6 Vendor: S000307 Step 3: Firstly screw the minifit part A to the top bar (1) as shown and then fix the top bar (1) to the footboard frame (5) using hardware parts A;then paste the sticker Y. Step 4: Firstly, fix the hydraulic pump to each hydraulic base as shown in diagram 4.1. Next fix the left and right hydraulic spacer together with the hydraulic base supports on to both side rails using bolts H.
- Page 7 Vendor: S000307 Step 5: Join together the left side rail (6) and right side rail (7) with the centre storage panels (8) using hardware parts A and B. Step 6: Fix side rail to the headboard and footboard with hardware as shown. Page 6 of 10...
- Page 8 Vendor: S000307 Step 7: Fix metal corner block C to the edge of footboard and side rails with bolt G as shown. Step 8: Join together all the bed base parts (11),(12),(13),(14) and (15) using hardware parts G,X & Rand also slide part P onto Part 14 before bolting together.
- Page 9 Vendor: S000307 Step 9: Insert the slats (17) to hardware parts M and N then press into the base making sure they are secure. Step 10: Assemble the bed base on the right & left hydraulic frame and fix bolts L starting from'1'to'3'as shown and fix the support leg (16) to the bed base as shown.
- Page 10 If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. • Why don’t you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram. Page 9 of 10...
- Page 11 Vendor: S000307 CAUTION : PLEASE USE HYDRAULIC PUMP STOPPER FOR SAFETY PURPOSE. HYDRAULIC PUMP STOPPER (LOCK IN) (LOCK OUT) Page 10 of 10...
- Page 12 Important Ottoman Safety Warnings . Caution. This bed uses a pressurised mechanism. . Use caution when operating - Always use two hands at arm's length, and only where illustrated on the proudct. . You must ensure the mattress is on the bed frame before lifting the mechanism - Failure to do so may result in injury.
