Important:Read these instructions carefully before assembling or using your conrad 2 door wardrobe.
Paease keep these instructions for future reference.
Health
& Safety:
Do not use this wardrobe if any parts are missing, damaged or worn.
Do not use this wardrobe unless all fixings are secured.
Always use on a level, even surface.
Warning: If this item is placed on a non-carpeted floor you must place some protection under all legs to stop
the wardrobe from moving. If this is not adhered to there is no guarantee if the wardrobe collapses.
Care & Maintenance:
Periodically check all screws & fixings to ensure they are secure.
Do not push the wardrobe as this will damage the legs.
Always lift the wardrobe with two people to reposition.
Keep any sharp objects away from the wardrobe.
ASSEMBLY INSTRUCTIONS

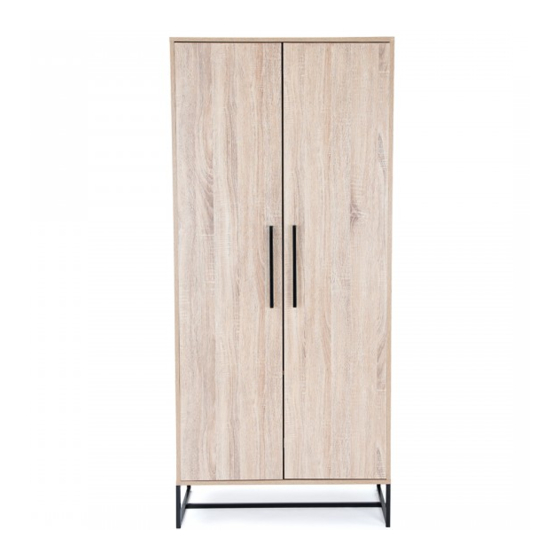

2 DOOR WARDROBE
CONRAD
www.birlea.com
Vendor: S000369
Page 1 of 10
