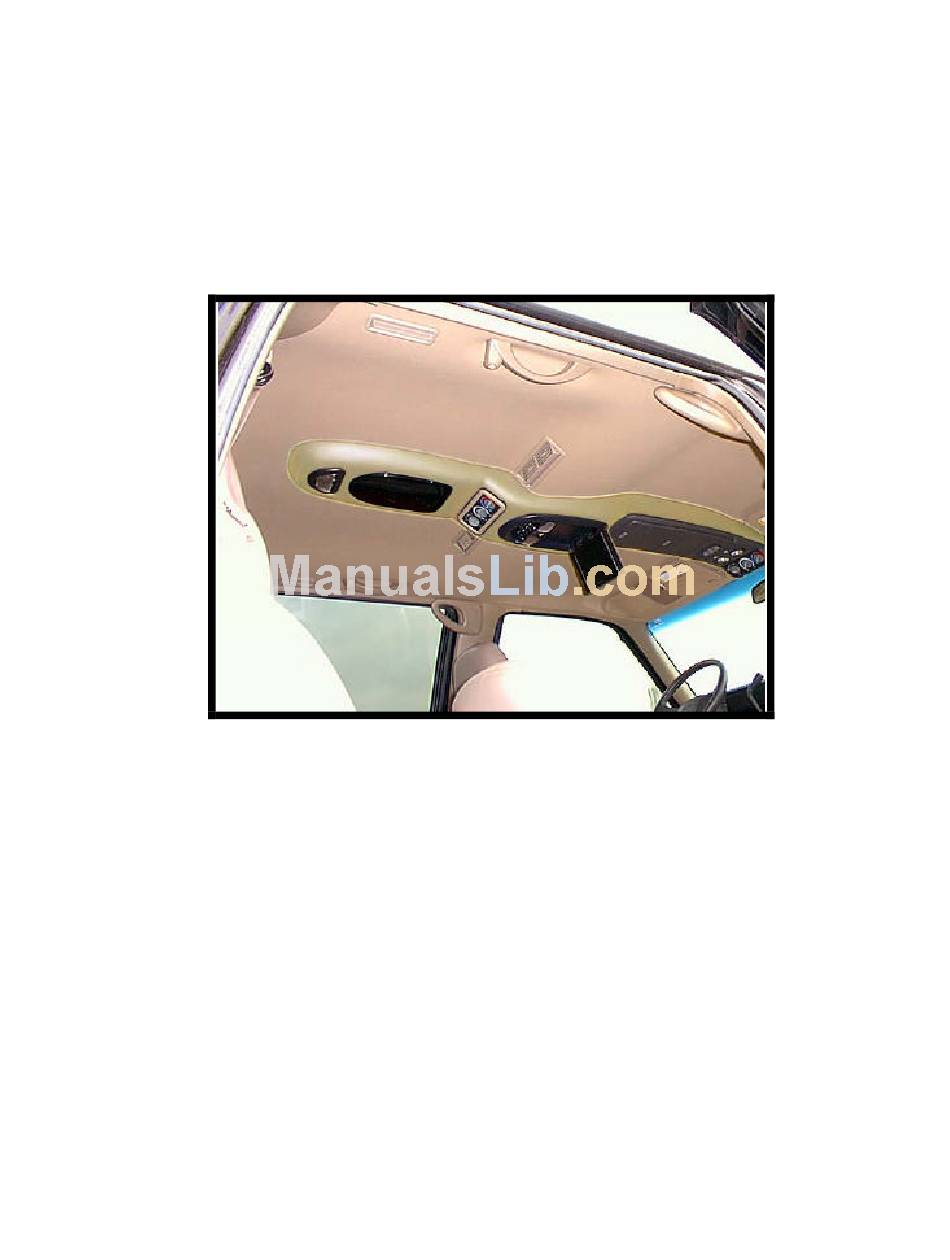

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver
3. T-45 TORX bit driver
5. Awl or similar tool
7. 7/64" drill bit
9. Audiovox Series 640/650 Video Module
INSTALLATION INSTRUCTION # 44-0019E
INSTALLATION INSTRUCTIONS
50-0210F-002 SERIES 1181291
50-0210F-003 SERIES
50-0210F-004 SERIES
FOR USE IN VEHICLES WITH FACTORY INSTALLED
OVERHEAD CONSOLE ONLY.
FOR
1181292
1181293
SUBURBAN
2. Powered screwdriver or drill with adapter
4. Razor knife or similar
6. 1/4" hex socket bit
8. Small chisel
July 7, 1999
Printed in the U.S.A
Advertisement
Related Manuals for Audiovox 1181291
Summary of Contents for Audiovox 1181291
- Page 1 1. #2 Phillips screwdriver 3. T-45 TORX bit driver 5. Awl or similar tool 7. 7/64" drill bit 9. Audiovox Series 640/650 Video Module FOR USE IN VEHICLES WITH FACTORY INSTALLED INSTALLATION INSTRUCTION # 44-0019E INSTALLATION INSTRUCTIONS 50-0210F-002 SERIES 1181291...
- Page 2 MATERIALS PROVIDED FOR INSTALLATION: ITEM Description SCREW, # 8 X 3/4" HWH ,TEK,Z1 SCREW, # 8 X 2 1/2" PFH ,ZII SCREW, # 8 X 1 1/4" PWH ,BZ CONSOLE MOUNTING BRACKET REAR LIGHT REAR LIGHT TRIM PLYWOOD, 3/8" X 6" X 14" SCREW, # 6 X 1/2"...
- Page 3 I. PREPARATION OF VEHICLE INTERIOR 1. Remove the O.E.M. compartment console currently mounted to inner roof of vehicle. Remove (1) one # 8 X 1 3/4" screw from recess in front of console near rear view mirror. Pull front of O.E.M. console down to access wiring. Disconnect all wiring from console.
- Page 4 3. Discard trim ring. See Figure 3. Using a razor knife, carefully trim the (10) ten plastic pins flush with the shoulder. See Figure 4. FIGURE 3 FIGURE 4...
- Page 5 4. Remove OEM dome light and rear air conditioning control head. Disconnect wiring and set control head aside in a safe place. Remove the OEM ground screw near the center dome light assembly if applicable. See Figure 5. FIGURE 6 FIGURE 5 5.
- Page 6 FIGURE 7 7. Secure bracket to sheetmetal frame using four (4) # 8 x 3/4" HWH TEKS screws ( item 1 pg 2 ). Secure O.E.M. ground wire (if applicable) using one of the screws. See Figure 8. 6. Install the rear mounting bracket (item 5 pg 2 ) in the O.E.M.
- Page 7 8. If vehicle is equipped with an electronic compass, unsnap the wire harness clip and relocate toward center of vehicle. See Figure 9. FIGURE 9 9. Remove and retain the two ( 2 ) door scuff plates on driver’s side. See Fig. 10. FIGURE 10...
- Page 8 10. Remove and retain the handle which mounts to top of the “B” pillar. 11. Unsnap the cover from upper and lower mounting bracket for seat belt. Remove and retain TORX head bolt and bracket. Carefully pull panel away from side of vehicle. Unsnap upper door trim from headliner and lay aside.
- Page 9 14. Route all accessory wiring, video and audio cables, and any other added component requirements to their respective places in the vehicle. Refer to component installation instructions for wiring diagrams.For Suburban applications, the suggested routing of the video system cable is as follows: Above headliner from video system to B-pillar.
- Page 10 II. PREPARATION OF CONSOLE FOR INSTALLATION 1. Position the O.E.M. console in the front recess area of the new console (item 4 pg 2 ). Carefully fit the two together, aligning the rear compartment hinge arms through the slots in the recess pocket area.
- Page 11 IV. INSTALLATION OF OVERHEAD CONSOLE. Caution: Do not overtighten screws. Use extra support for the console until secured to the vehicle. Failure to do so may cause damage to console or installed components. Figure 16 2. Raise overhead console into approximate position and connect wiring to O.E.
- Page 12 7. Release video screen from locked position. Lower video screen to viewing position for access to mounting locations in top of video system housing. 8. Raise video system into approximate position and connect all wiring to components. Route video cable through hole in mounting bracket.
