AVD400
SLOT-IN DVD PLAYER
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SLOT-IN AVD400 and is the answer not in the manual?

Questions and answers

Related Manuals for Audiovox SLOT-IN AVD400

Summary of Contents for Audiovox SLOT-IN AVD400

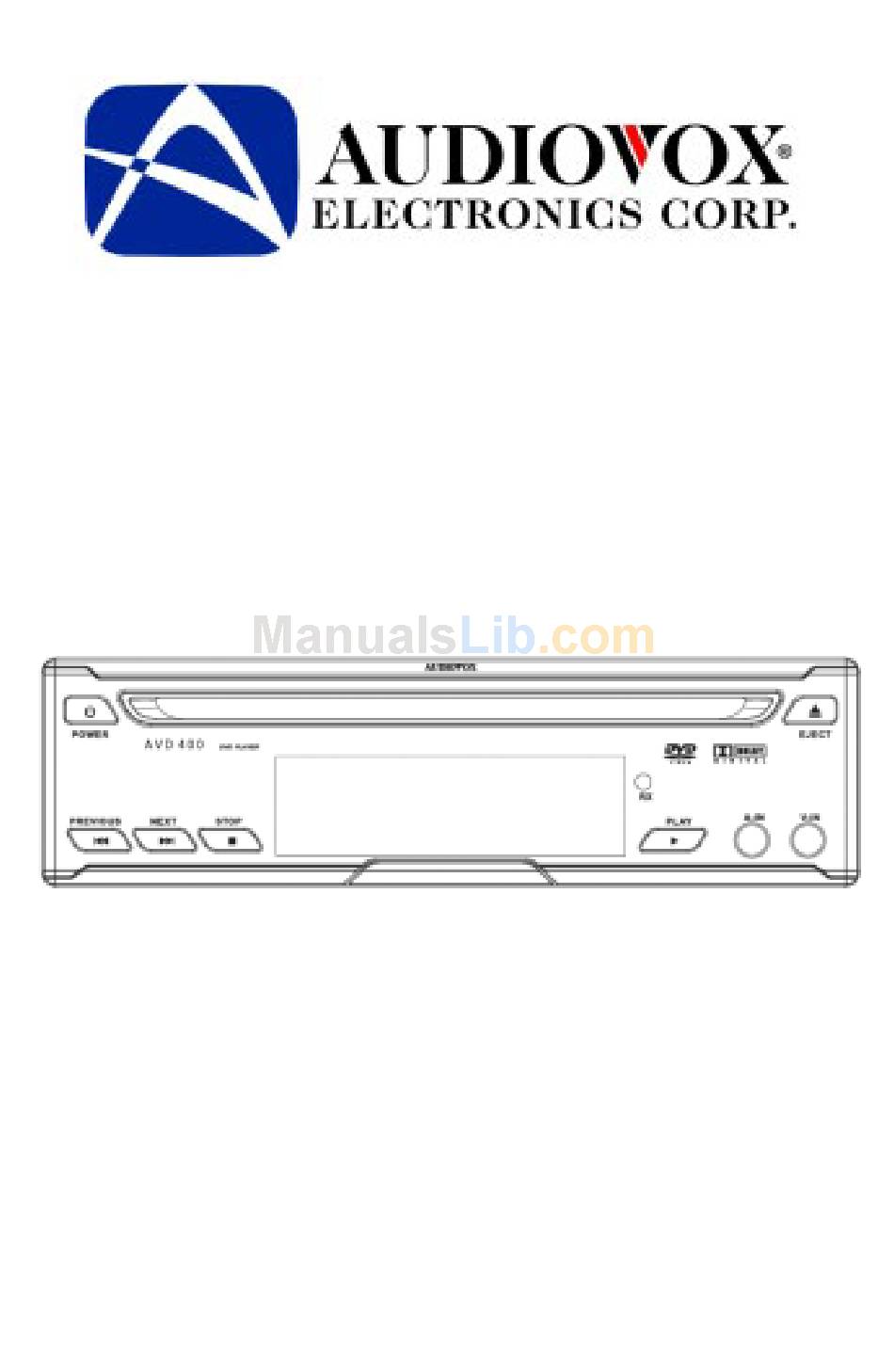

  • Page 1 AVD400 SLOT-IN DVD PLAYER Owner’s Manual...

  • Page 2: Explanation Of Graphic Symbols

    A . Welcome Thank you for choosing the AVD400 DVD Player. The AVD400 is designed to optimize the enjoyment of your favorite DVDs in the mo- bile environment. This DVD Player is constructed to provide years of reliable, trouble-free service. Please read this manual thoroughly prior to operating the player and save it for future reference.

  • Page 3: Safety Precaution

    For safety reasons do not allow children to unfasten seat-belts to change video media or make any adjustments to the system. Enjoy your enter- tainment system but always remember the safety of all passengers is the number one priority. It is unlawful in most states for a person to drive a motor vehicle which is equipped with a television viewer or screen that is located in the motor vehicle at any point forward of the back of the driver’s seat, or that is visible, directly or indirectly, to the driver while operating the vehicle.
  • Page 4 4. DISC Do not use irregularly shaped discs such as heart or star-shaped discs as they may cause the unit to malfunction. Do not stick pa- per, tape or glue on the disc. Do not expose the disc to direct sun- light or heat sources.
  • Page 5 C. Contents 1. 1 Main Unit 2. 1 Remote control with one Battery 3. 1 12VDC Power Harness 4. 2 Brackets with 4 Screws 5. 1 Remote IR Receiver 6. 1 AV cable (RCA to RCA) 7. 1 AV cable (1/8 to RCA) 8.
  • Page 6 E. Remote Control View (Refer to Figure 2) MODE Button POWER Button MENU Button UP/DOWN/ LEFT/RIGHT Button ENTER/PLAY Button VOLUME +/- Buttons NUMERIC KEYPAD 10+ Button TITLE Button AUDIO Button REPEAT Button SUBTITLE Button DISPLAY Button EJECT Button SETUP Button PAUSE Button STOP Button NEXT Button...
  • Page 7 F. Connections 1. Powering your DVD Player ( Refer to Figure 3) Connect the black wire (-) to the vehicle ground. Connect the red wire (+) to a switched (Accessory) 12VDC source. Plug the other end into the 12VDC input jack on the back of the unit. 2.

  • Page 8: Basic Operation

    G. Playing After connecting power to the unit, press the power button on the main unit momentarily. Insert the disc into the slot on the front of the unit, the unit will load the disc and start playing automatically: If there’s a disc inside the unit, press the POWER button, the unit will start playing automatically.

  • Page 9: Display Mode

    2. MENU A DVD is divided into sections called titles and chapters. When you play a DVD, a root menu of the disc will appear on the screen of your TV or Monitor. Contents of the menu will vary depending on the disc content.
  • Page 10 4) ANGLE During playback press ANGLE to change the current angle of discs contain- ing multi-angles. (You can see item 8 in the display change) If the disc has only one angle, you will see ing that no other angles are available. 5) SUBTITLE During disc playback press SUBTITLE* to select the desired subtitle lan- guage.

  • Page 11: Playing Audio Cds

    Repeat Chapter During playback press ‘REPEAT’ once to repeatedly play the current chapter, press a 2nd time to repeat the current title, press a 3rd time and the repeat function is cancelled and normal playback resumes. Repeat mode sequence:Repeat Chapter/Repeat Title/Off. 9.

  • Page 12: Playing Mp3 Discs

    As you toggle through the options, the repeat option changes. The selected repeat option loops repeatedly until its turned off. 10. PLAYING MP3 DISCS MP3 is a digital audio format. An audio CD-quality song is compressed into the MP3 format with no significant loss of audio quality. CD-R / RW discs that have been encoded in MP3 format are compatible with this device.

  • Page 13: Using The Repeat Feature

    USING THE REPEAT FEATURE The default mode for the Repeat feature is OFF. Pressing REPEAT consecutively changes the repeat options: • Repeat Single(repeat playback of a song) • Repeat All (repeat playback of all folder) • Off (normal playback) Pressing REPEAT a 3rd time will resume normal playback. As you toggle through the options, the repeat option changes.
  • Page 14 12. SETUP Press STOP and then Press ‘SETUP’ to display the Main screen of the SETUP Menu on the screen. Press ‘SETUP’ again to exit the SETUP Menu and the unit will resume it’s last playback mode. Main ‘SETUP’ Menu Screen 1) Select language using the LEFT/RIGHT buttons, press ENTER to enter the ‘LANGUAGE’...
  • Page 15 b. Select ‘Subtitle’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the ‘Subtitle’ language you desire using the UP/DOWN buttons, then press ENTER to confirm the setting. c. Select “Audio” using the UP/DOWN buttons, then press ENTER to enter the submenu.
  • Page 16 2) Select ‘Video’ by using the LEFT/RIGHT buttons, press ENTER to enter the Video set up page. a. Select ‘TV Shape’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the TV shape you desire using the UP/ DOWN buttons, then press ENTER to confirm the setting.
  • Page 17 b. Select ‘TV System’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the TV System you desire using the UP/ DOWN buttons, then press ENTER to confirm the setting. c. Select ‘BRIGHTNESS’ using the UP/DOWN buttons and then press ENTER to enter the submenu.
  • Page 18 3) Select language using the LEFT/RIGHT buttons, press ENTER to enter the ‘AUDIO’ setup page. ‘AUDIO’ Display Menu a. Select ‘AC3’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the digital output you desire using the UP/DOWN buttons, then press ENTER to confirm the setting.
  • Page 19 b. Select ‘DTS’ using the UP/DOWN buttons, then press ENTER to enter the submenu. Select the digital output you desire using the UP/DOWN buttons, then press ENTER to confirm the setting. c. Select ‘MP3/WMA’ using the UP/DOWN buttons, then press ENTER to enter the submenu.
  • Page 20 4) Select ‘Rating’ by using the LEFT/RIGHT buttons, press ENTER to enter the Rating set up page. Select ‘Password’ using the UP/DOWN buttons. For first time use the default password 3308 to unlock the unit. Select ‘Rating’ using the UP/DOWN buttons and press ENTER to enter the submenu. Select the rating level you desire by repeatedly pressing the ENTER button .
  • Page 21 H. Specification Supported media Signal format system DVD Video format Video output Audio output Signal-to-noise ratio Harmonic distortion Dynamic range Wow and flutter Power source Power consumption Operating temperature Storage temperature Operating humidity Dimensions (W x H x D) Weight DVD / CD / VCD / MP3/ JPEG CD-R NTSC/PAL Horizontal 720 pixel,...
  • Page 22 AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 90 days from the date of original pur- chase, such defect(s) will be repaired or replaced with reconditioned product (at the Company’s...
  • Page 23 © 2004 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 128-7079...
