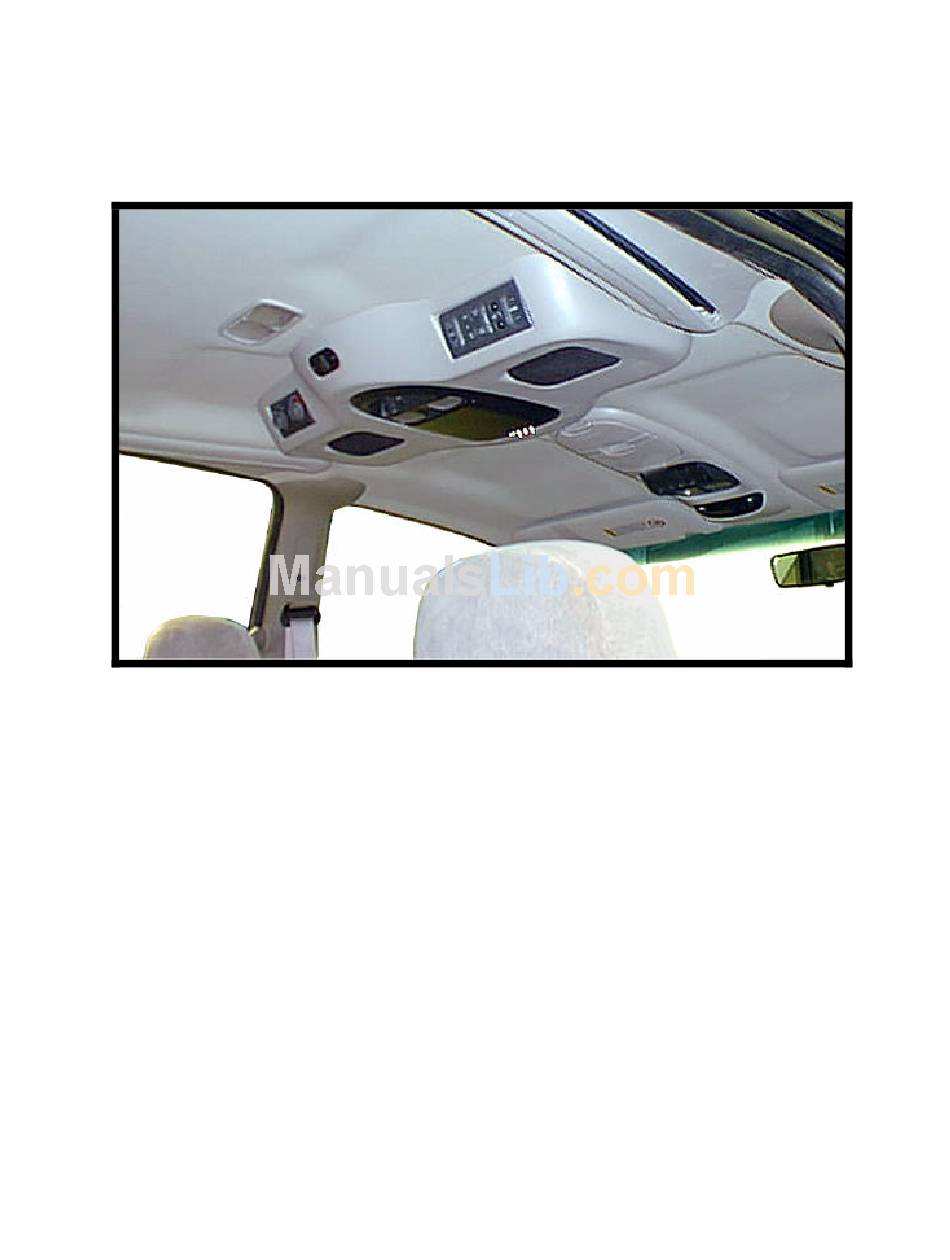

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read through
the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver
3. T-15 TORX bit driver
5. Awl or similar tool
7. 18 GA wire 4'
NOT FOR VEHICLES EQUIPPED WITH SUN ROOF.
INSTALLATION INSTRUCTION # 44-0034A
MATERIALS PROVIDED FOR INSTALLATION:
INSTALLATION INSTRUCTIONS
FOR
50-0285x-015 SERIES 1181279
CHEVROLET VENTURE
2. Powered screwdriver or drill with adapter
4. Razor knife or similar
6. 1/4" hex socket bit
8. Audiovox Series 640/650 Video Module
June 2, 1999
Printed in the U.S.A
Advertisement
Related Manuals for Audiovox 1181279
Summary of Contents for Audiovox 1181279
- Page 1 MATERIALS PROVIDED FOR INSTALLATION: INSTALLATION INSTRUCTIONS 50-0285x-015 SERIES 1181279 CHEVROLET VENTURE 2. Powered screwdriver or drill with adapter 4. Razor knife or similar 6. 1/4” hex socket bit 8. Audiovox Series 640/650 Video Module June 2, 1999 Printed in the U.S.A...
- Page 2 ITEM Description SCREW, # 10 X 1/2" HWH SCREW, # 8 X 3/4" PWH SCREW, 6-32 x 3/4" PPH WASHER, # 6 SCREW, # 6 X 1/2" PFH FRONT MOUNTING BRACKET REAR MOUNTING BRACKET SWITCH MOUNTING BRACKET 4 ADAPTER WIRE HARNESS CONSOLE SPEAKER GRILLE COVER PLATE...
- Page 3 IF VEHICLE IS NOT EQUIPPED WITH FACTORY REAR A/C AND REAR AUDIO CONTROLS, Remove and retain controls from console and lay them in FIGURE 1 a safe place. Discard console. See Fig. 2. FIGURE 3 4. Using a razor knife, carefully trim headliner as shown. Make sure the 27”...
- Page 4 FIGURE 5 9. Install jumper wire harness (item 10 pg 2) to extend the O.E.M. audio control harness, if equipped. See Figure 6. II. PREPARATION OF CONSOLE FOR INSTALLATION IF VEHICLE IS NOT EQUIPPED WITH FACTORY REAR A/C AND REAR AUDIO CONTROLS, FIGURE 7 12.
-
Page 5: Installation Of Console
FIGURE 9 NOTE: Additional assistance in mounting the overhead console in vehicle is advised to prevent damage to console or components. Caution: Do not overtighten screws. Use extra support for the console until secured to the vehicle, failure to do so may cause damage to console or installed components. - Page 6 mounting location in top of video system housing. 19. Raise video system into approximate position and connect all wiring to components. Connect wiring and FIGURE 12 22. Align holes in housing with clips in mounting bracket. Secure using (4) four 6-32x 3/4" screws (item 3 pg.2) and (4) four #6 washers (item 4 pg.
