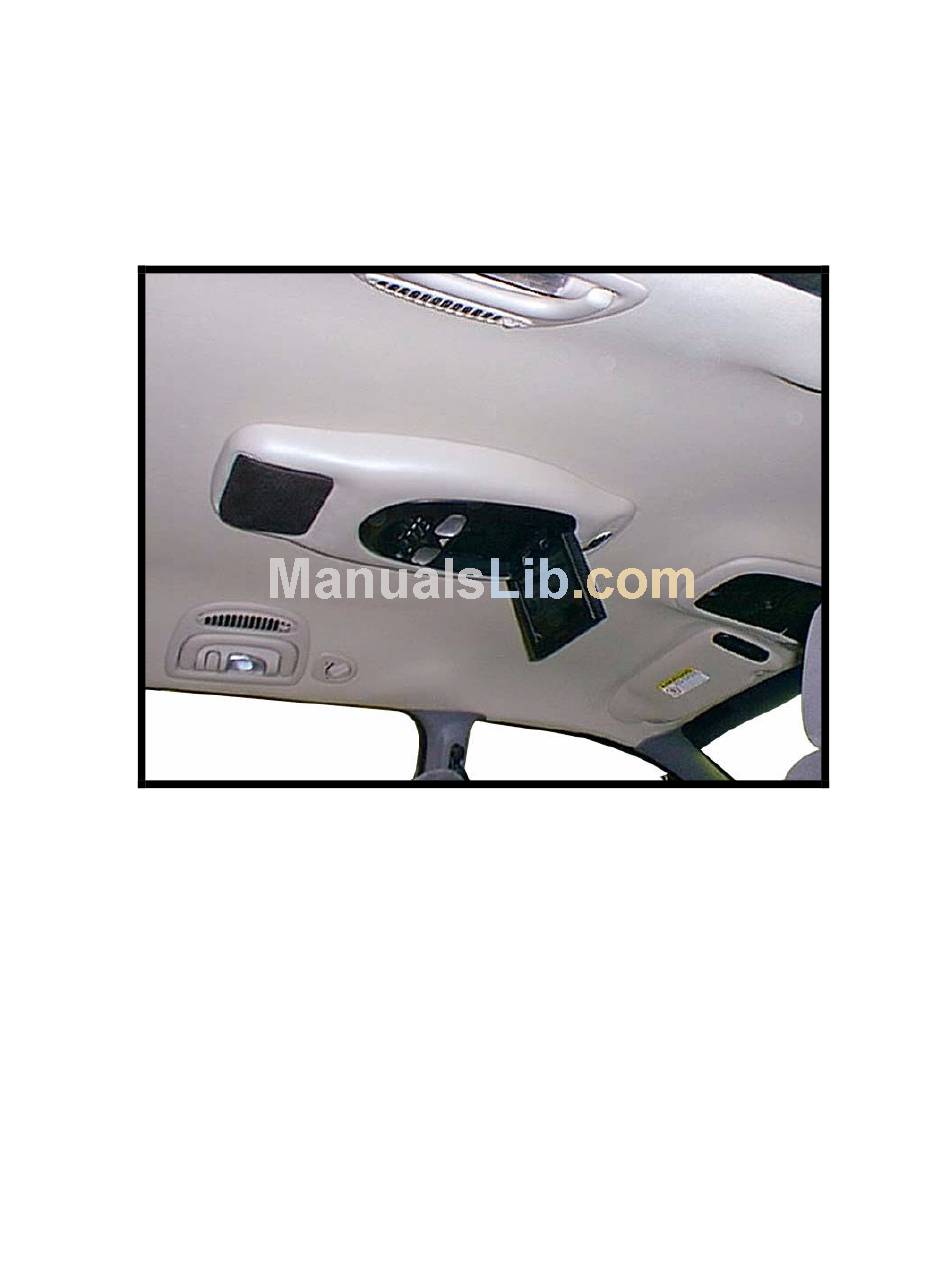

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver
3. Awl or similar tool
5. 18 GA wire 4' - 6'
7. Audiovox Series 640/650 Video Module
NOT FOR VEHICLES EQUIPPED WITH SUN ROOF.
INSTALLATION INSTRUCTION # 44-0047A
INSTALLATION INSTRUCTIONS
FOR
50-0311x-015 SERIES 1181337
GRAND CARAVAN
2. Powered screwdriver or drill with adapter
4. Razor knife or similar
6. Test light
Nov. 8, 1999
Printed in the U.S.A
Advertisement
Table of Contents
Related Manuals for Audiovox 50-0311x-015 Series
Summary of Contents for Audiovox 50-0311x-015 Series
-
Page 1: Installation Instructions
Materials/ Tools required for this installation: 1. #2 Phillips screwdriver 3. Awl or similar tool 5. 18 GA wire 4' - 6' 7. Audiovox Series 640/650 Video Module NOT FOR VEHICLES EQUIPPED WITH SUN ROOF. INSTALLATION INSTRUCTION # 44-0047A INSTALLATION INSTRUCTIONS... - Page 2 MATERIALS PROVIDED FOR INSTALLATION: ITEM Description SCREW, # 8 X 9/16" PWH SCREW, 6-32 X 3/4" PPH WASHER, 3.5 mm SCREW, # 8 X 1 1/2" PWH SCREW, # 6 X 1/2" PFH MOUNTING BRACKET CONSOLE SPEAKER GRILLE COVER PLATE COVER PLATE DECAL INSTALLATION INSTRUCTION # 44-0047A Nov.
- Page 3 I. PREPARATION OF VEHICLE INTERIOR FIGURE 1 3. Using O.E. console as a reference, carefully measure and trim headliner as shown. Caution: Before cutting headliner material, check for wiring or other componentry above headliner. Cut only where indicated. DO NOT OVERCUT HEADLINER.
- Page 4 8. Install and route all video and audio cables, and any other added component requirements to their respective places in the vehicle. Refer to component installation instructions for wiring diagrams. The suggested routing of the video system cable is as follows: Above the headliner from video system rearward to the C-pillar.
- Page 5 FIGURE 7 15. Insert video system into opening in console. Note: Make sure wires do not get pinched between video system and console. Align holes in housing with clips in mounting bracket. Secure using (4) four 6-32 x 3/4" screws (item 2 pg 2) and (4) four 3.5 mm washers (item 3 pg 2). See Figure 7. Caution: Do not overtighten screws.
