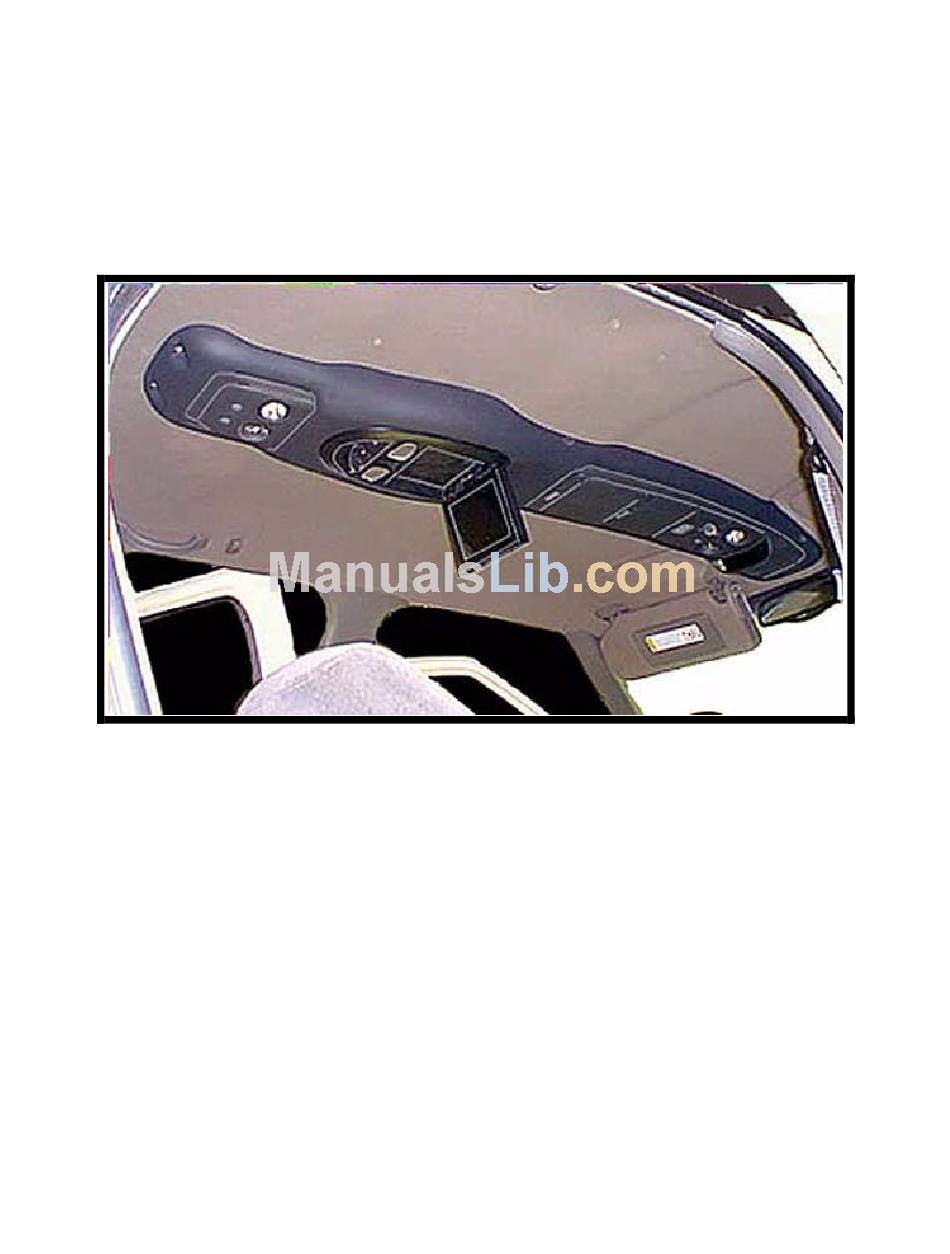

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver
3. T-15 TORX bit driver
5. Awl or similar tool
7. Band saw or similar
INSTALLATION INSTRUCTION # 44-0025C
INSTALLATION INSTRUCTIONS
FOR
50-0244x-001 SERIES 1181275
50-0244x-018 SERIES 1181276
50-0244x-019 SERIES 1181277
CHEVROLET S-10 BLAZER
2. Powered screwdriver or drill with adapter
4. Razor knife or similar
6. 1/4" hex socket bit
8. Audiovox Series 640/650 Video Module
June 3, 1999
Printed in the U.S.A
