FORD EXPLORER / MERCURY MOUNTAINEER w/ SUNROOF

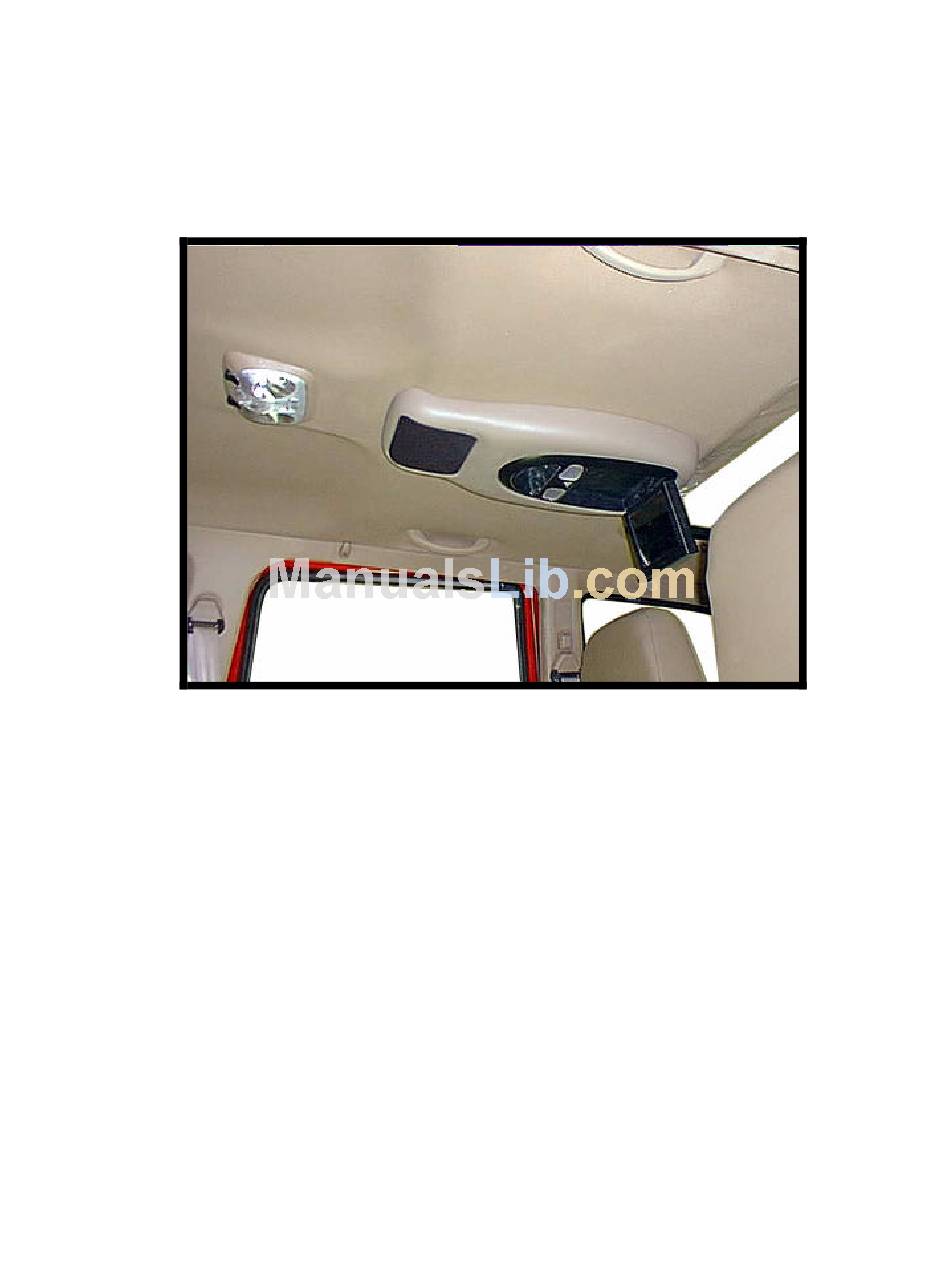

OVERHEAD CONSOLE for use with FLIPDOWN VIDEO SYSTEM
These instructions are intended for use only by experienced professionals in the automotive
customizing business. Special tools and equipment, as well as specialized handling and care
of product during installation, may be required. Before beginning this installation, carefully read
through the following instructions. Use extreme care when cutting headliner material.
Check for wiring or other componentry above headliner material. Cut only where indicated.
Materials/ Tools required for this installation:
1. #2 Phillips screwdriver
3. Awl or similar tool
5. 18 GA wire 4'-6'
7. Test Light
INSTALLATION INSTRUCTION # 44-0039A
INSTALLATION INSTRUCTIONS
FOR
50-0300A-014 SERIES 1181282
50-0300A-002 SERIES 1181284
2. Powered screwdriver or drill with adapter
4. Razor knife or similar tool
6. 7mm Hex Socket Bit
8. Audiovox Series 640/650 Video Module
Nov. 8, 1999
Printed in the U.S.A
