3-6 ENGINE CONTROL SYSTEM

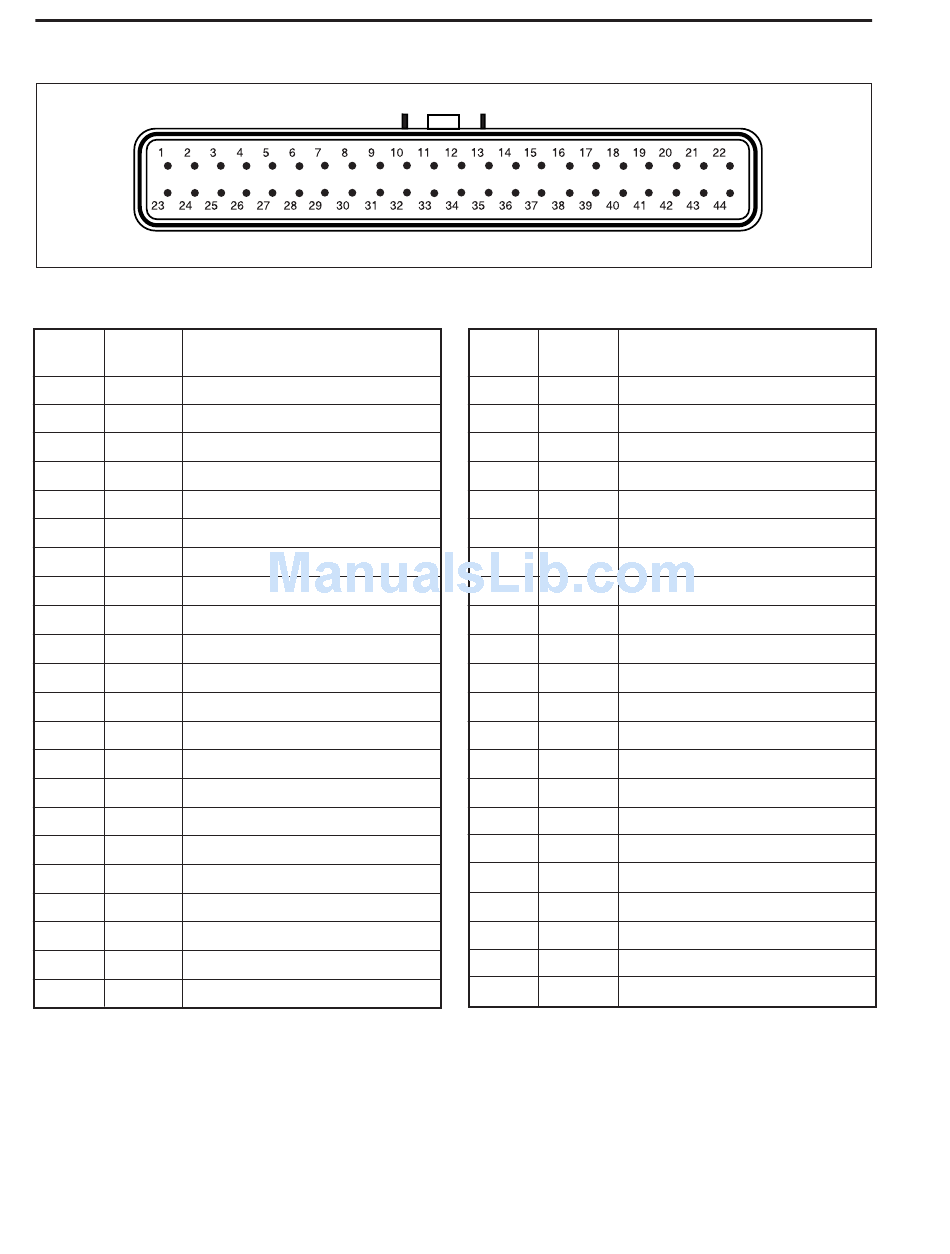

ECM CONNECTOR/TERMINALS LAYOUT
ECM CIRCUITS
TERMI- WIRE
NAL COLOR
1 —
2 Bl/R Emergency stop switch
3 O Buzzer cancel
4 Y / B Tachometer
5 Br Neutral switch, Engine start signal
6 —
7 V/ W Ex-manifold temperature sensor
8 —
9 Lg/W Cylinder temperature sensor
10 B Ground for ECM
11 B / W Ground for sensor
12 B l / B OIL lamp
13 P / B Ground for ECM main relay
14 —
15 R / B CMP sensor
16 O/Y PC communication
17 G/ Y TEMP lamp
18
IAC valve solenoid (–)
B/ R
19 —
20 B Ground for power souce
21 —
22 Lg No.4 Fuel injector (–)
NOTE:
"WIRE COLOR" shows the wire color of the engine wire harness side.
CIRCUIT
—
—
—
—
—
—
TERMI- WIRE
NAL COLOR
23 Bl Oil pressure switch
24 Lg/R CTP switch
25 P REV-LIMIT lamp
26 G / W CHECK ENGINE lamp
27 B l / W Buzzer
28 —
29 W MAP sensor
30 Gr ECM power source
31 L g / B IAT sensor
32 B Ground for ECM
33 O/ G CKP sensor
34 B/G
O feedback
2
35 R Power source for MAP sensor
36 Y PC communication
37 B / W Fuel pump (–)
38 R/W No.3 Fuel injector (–)
39 B / Y No.2 Fuel injector (–)
40 O/ B No.1 Fuel injector (–)
41
W Resistor
42 B
Ground for power source
Bl
43 No.2 & 3 Ignition (–)
O No.1 & 4 Ignition (–)
44
CIRCUIT
—
