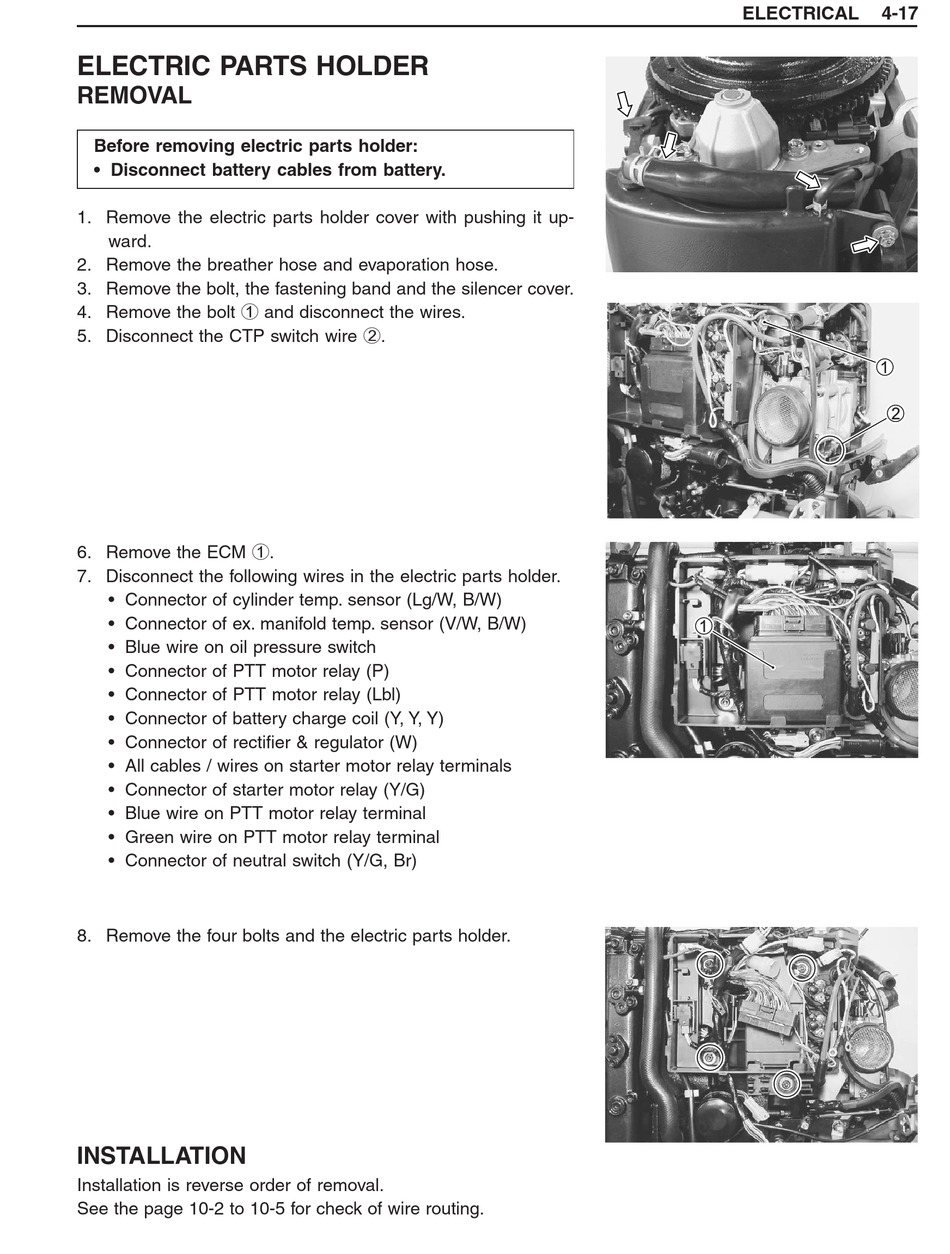

ELECTRIC PARTS HOLDER

REMOVAL
Before removing electric parts holder:
• Disconnect battery cables from battery.
1. Remove the electric parts holder cover with pushing it up-
ward.
2. Remove the breather hose and evaporation hose.
3. Remove the bolt, the fastening band and the silencer cover.
4. Remove the bolt 1 and disconnect the wires.
5. Disconnect the CTP switch wire 2.
6. Remove the ECM 1.
7. Disconnect the following wires in the electric parts holder.
• Connector of cylinder temp. sensor (Lg/W, B/W)
• Connector of ex. manifold temp. sensor (V/W, B/W)
• Blue wire on oil pressure switch
• Connector of PTT motor relay (P)
• Connector of PTT motor relay (Lbl)
• Connector of battery charge coil (Y, Y, Y)
• Connector of rectifier & regulator (W)
• All cables / wires on starter motor relay terminals
• Connector of starter motor relay (Y/G)
• Blue wire on PTT motor relay terminal
• Green wire on PTT motor relay terminal
• Connector of neutral switch (Y/G, Br)
8. Remove the four bolts and the electric parts holder.
INSTALLATION
Installation is reverse order of removal.
See the page 10-2 to 10-5 for check of wire routing.
