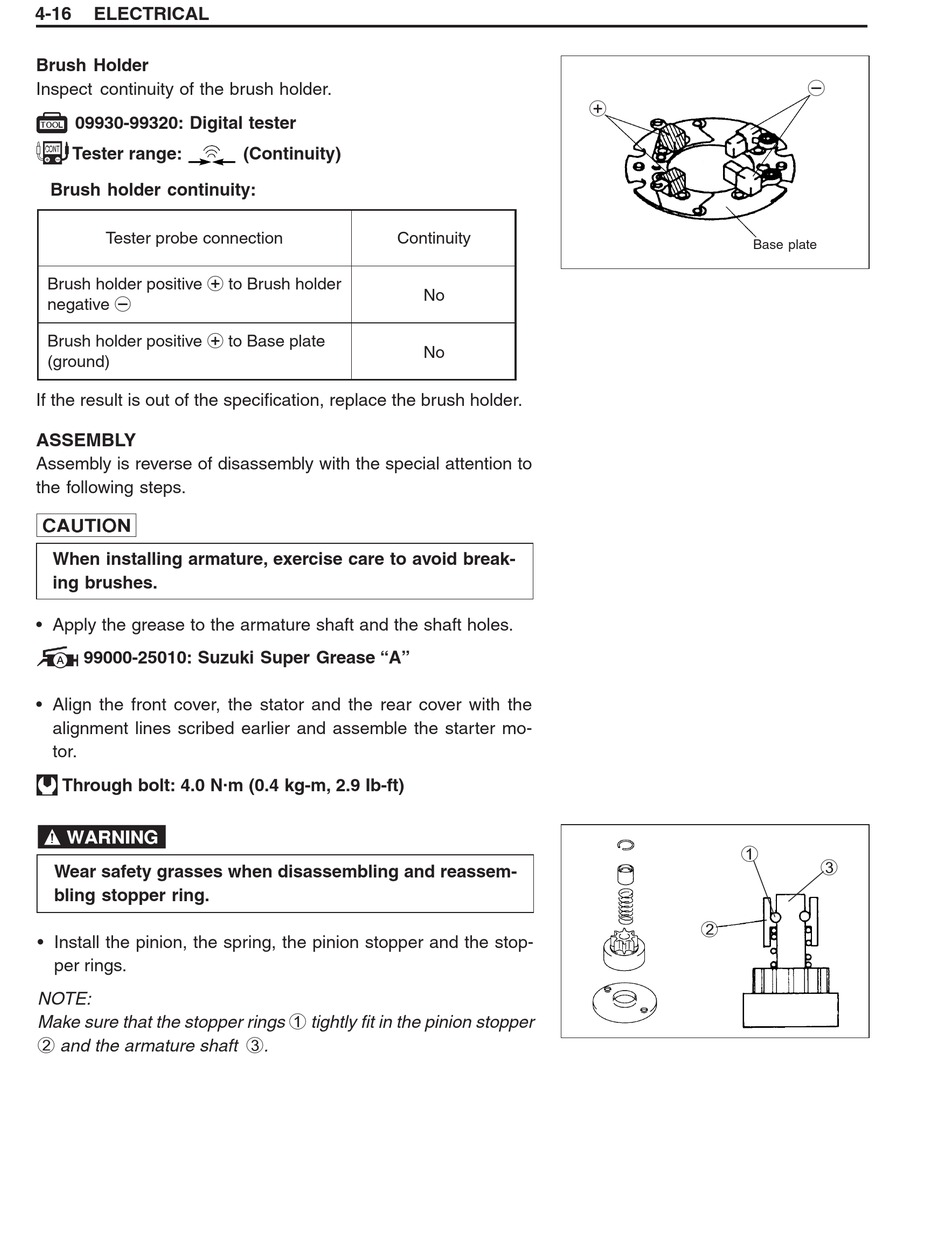

4-16 ELECTRICAL
Brush Holder
Inspect continuity of the brush holder.
!
09930-99320: Digital tester
' Tester range:
Brush holder continuity:
Tester probe connection
Brush holder positive + to Brush holder
negative -
Brush holder positive + to Base plate
(ground)
If the result is out of the specification, replace the brush holder.
ASSEMBLY
Assembly is reverse of disassembly with the special attention to
the following steps.
)
When installing armature, exercise care to avoid break-
ing brushes.
• Apply the grease to the armature shaft and the shaft holes.
* 99000-25010: Suzuki Super Grease "A"
• Align the front cover, the stator and the rear cover with the
alignment lines scribed earlier and assemble the starter mo-
tor.
$ Through bolt: 4.0 N . m (0.4 kg-m, 2.9 Ib-ft)
(
Wear safety grasses when disassembling and reassem-
bling stopper ring.
• Install the pinion, the spring, the pinion stopper and the stop-
per rings.
NOTE:
Make sure that the stopper rings 1 tightly fit in the pinion stopper
2 and the armature shaft 3 .
(Continuity)
Continuity
+
No
No
-
Base plate
1
3
2
