4-12 ELECTRICAL

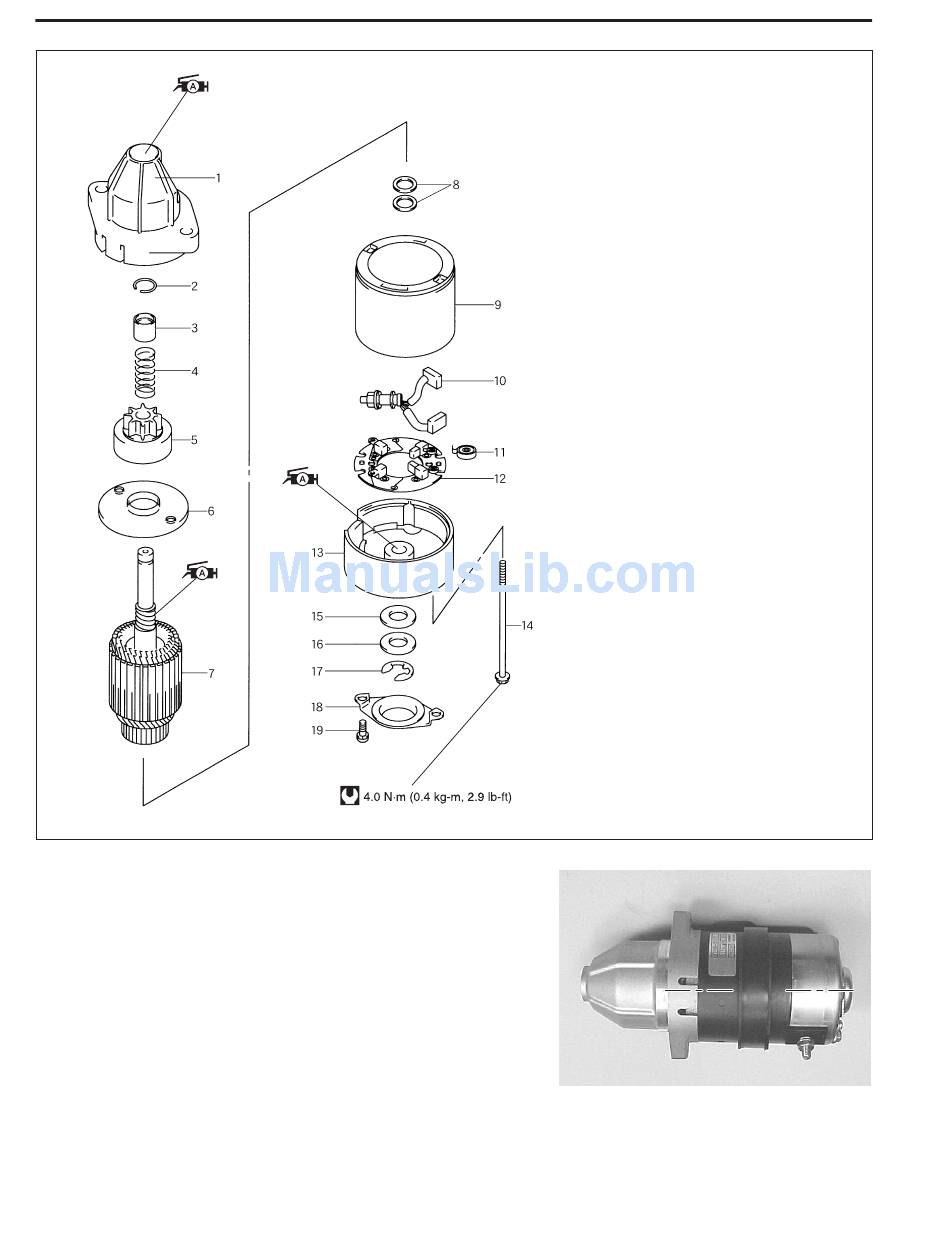

DISASSEMBLY
NOTE:
For correct assembly, scribe an alignment mark on the front
cover, the stator and the rear cover.
1. Front cover (1)
2. Stopper ring (1)
3. Pinion stopper (1)
4. Spring (1)
5. Pinion (1)
6. Cover (1)
7. Armature (1)
8. Washer (2)
9. Stator (1)
10. Brush (1)
11. Brush spring (2)
12. Brush holder (1)
13. Rear cover (1)
14. Bolt (2)
15. Washer (1)
16. Washer (1)
17. Circrip (1)
18. Sub rear cover (1)
19. Screw (2)
