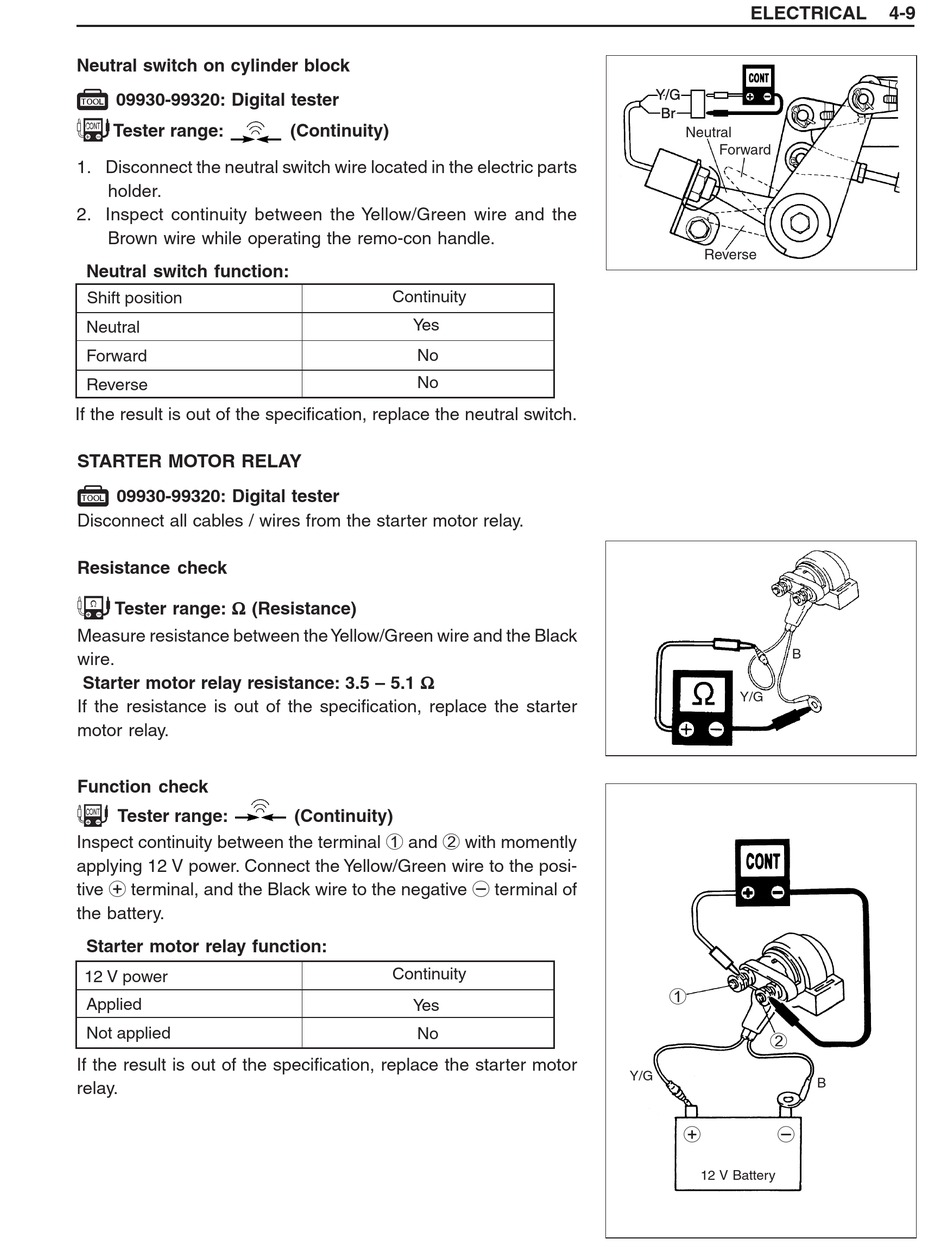

Suzuki DF 60 Service Manual page 110

Neutral switch on cylinder block
!
09930-99320: Digital tester
' Tester range:
1. Disconnect the neutral switch wire located in the electric parts
holder.
2. Inspect continuity between the Yellow/Green wire and the
Brown wire while operating the remo-con handle.
Neutral switch function:
Shift position
Neutral
Forward
Reverse
If the result is out of the specification, replace the neutral switch.
STARTER MOTOR RELAY
!
09930-99320: Digital tester
Disconnect all cables / wires from the starter motor relay.
Resistance check
" Tester range: Ω Ω Ω Ω Ω (Resistance)
Measure resistance between the Yellow/Green wire and the Black
wire.
Starter motor relay resistance: 3.5 – 5.1 Ω Ω Ω Ω Ω
If the resistance is out of the specification, replace the starter
motor relay.
Function check
' Tester range:
Inspect continuity between the terminal 1 and 2 with momently
applying 12 V power. Connect the Yellow/Green wire to the posi-
tive + terminal, and the Black wire to the negative - terminal of
the battery.
Starter motor relay function:
12 V power
Applied
Not applied
If the result is out of the specification, replace the starter motor
relay.
(Continuity)
Continuity
Yes
No
No
(Continuity)
Continuity
Yes
No
ELECTRICAL
Neutral
Forward
Reverse
B
Y/G
1
2
Y/G
+ -
12 V Battery
4-9
B
