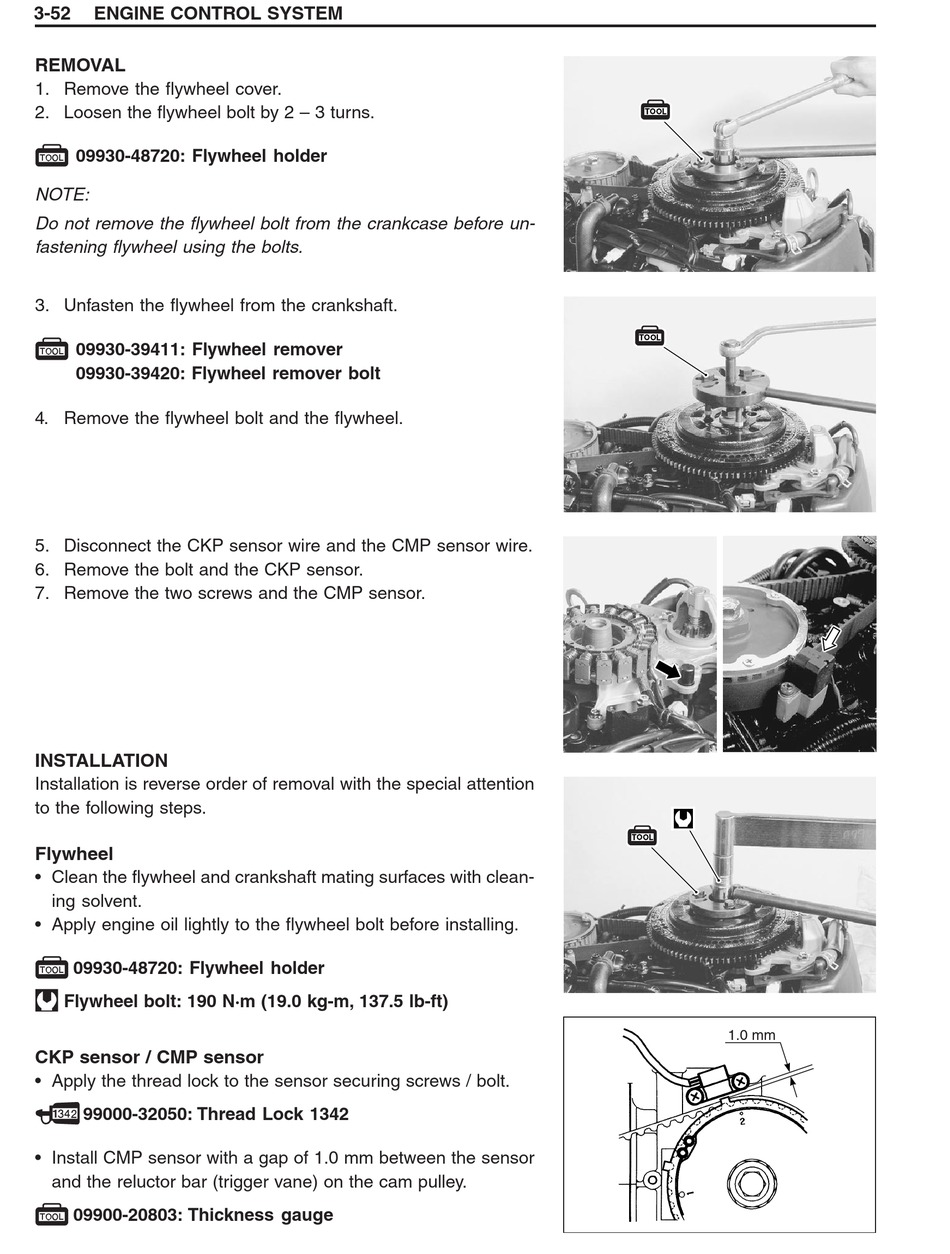

3-52 ENGINE CONTROL SYSTEM
REMOVAL
1. Remove the flywheel cover.
2. Loosen the flywheel bolt by 2 – 3 turns.
# 09930-48720: Flywheel holder
NOTE:
Do not remove the flywheel bolt from the crankcase before un-
fastening flywheel using the bolts.
3. Unfasten the flywheel from the crankshaft.
# 09930-39411: Flywheel remover
09930-39420: Flywheel remover bolt
4. Remove the flywheel bolt and the flywheel.
5. Disconnect the CKP sensor wire and the CMP sensor wire.
6. Remove the bolt and the CKP sensor.
7. Remove the two screws and the CMP sensor.
INSTALLATION
Installation is reverse order of removal with the special attention
to the following steps.
Flywheel
• Clean the flywheel and crankshaft mating surfaces with clean-
ing solvent.
• Apply engine oil lightly to the flywheel bolt before installing.
# 09930-48720: Flywheel holder
+ Flywheel bolt: 190 N·m (19.0 kg-m, 137.5 lb-ft)
CKP sensor / CMP sensor
• Apply the thread lock to the sensor securing screws / bolt.
, 99000-32050: Thread Lock 1342
• Install CMP sensor with a gap of 1.0 mm between the sensor
and the reluctor bar (trigger vane) on the cam pulley.
# 09900-20803: Thickness gauge
1.0 mm
