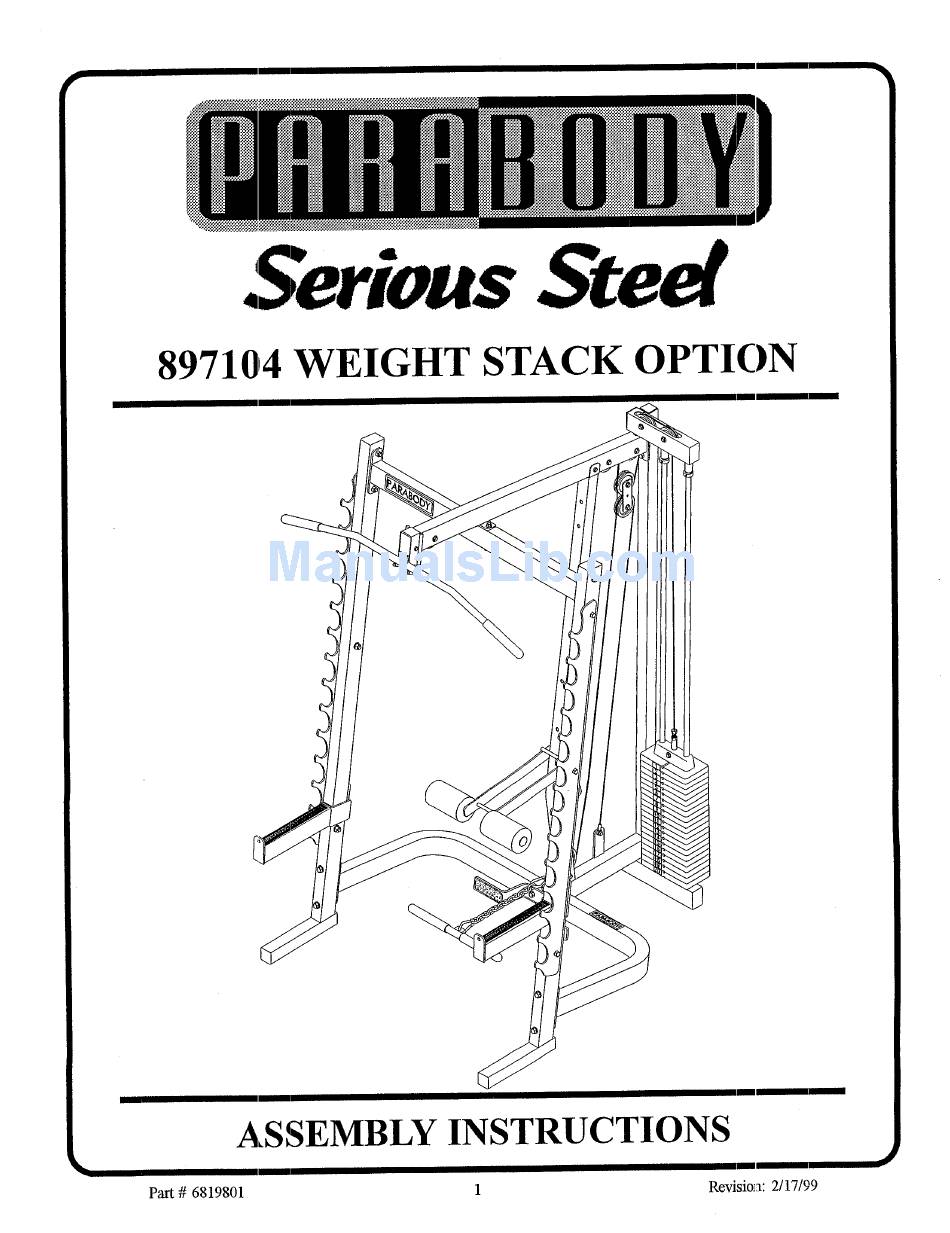

- Page 1 ~~~erious Steel 8971(1’4 WEIGHT STACK OPTION IIII ASSEMBLY INSTRUCTIONS II Illl Revisio~a: 2/17/99 Part # 6819801...
- Page 2 DI~CRIPTION PART# STACKBASE STACKBOOM 6819403 1-3/4" X 9..3/8" TUBE 6819703 6577801 77-1/4" GUII)E ROD 20 HOLE W]EIGHT STACK SHAFT 6284501 3 -1/2" PUI J ,W~ 3116201 129-1/2" CABLE 6660101 3 X 2" END CAP 6692601 13/16" SHAFT COLLAR 3103302 6214401 WEIGHT STACK SELECTORPIN 1-3/4"...
- Page 3 2. Do not allow minors or children to play on or around this equipment. 3. Exercise with care to avoid injury. 4. If unsure of proper use of equipment, call your local Parabody distributor o~r call the Parabody customer service department at (800) 328-9714.
-
Page 4: Upright Frame
FIGURE 2 STEP 2: ¯ LOOSEN the TOP BOOM fromthe UPRIGHT FRAMEbyremoving one 1/2 X 2-1/2 BOY, one 1/2 X 3" BOL% one 3/8 X 2-3/4" BOLT, two 1/2" WASHERS, one 1/2" LOCKNUT, and one 3/8" LOCK NUT as shown in FIGURE 2. ¯... - Page 5 FIGURE 4 ;TEP 4: ¯ Insert two 3 X 2" END CAPS, (8) into the ends of the STACK BOOM ¯ Insert two GUIDE ROD BUSHINGS (22) into the tubes onthe STACK BOOM (2) as shown inFIGURE ¯ SECURELY assemble the 1-3/4 X 9-3/8" TUBE (3) to the STACK BOOM and one 1/2"...
- Page 6 FIGURE 6 STEP 6: ¯ SECURELY assemble the STACK BASE (1) to the bottom ofthe UPRIGHT FRAME usmg one l/2 X 3"l/4 BOLT (18)andone 1/2 NUT (20) as shownin FIGURE FIGURE 7 STEP 7: ¯ Snap two WEIGHT PLATE BUSHINGS (23) into the top of all twenty WEIGHT PLATES (25) as shown in FI GURE [ I I I 1 I I...
- Page 7 3/8 X 1-1/4"t FIGURE 8 STEP 8: Insert two GUIDE RODS (4) into the STACK BASE ( 1 ) as shown in HIGURE 8. Lubricate the GUIDE RODS (4) with a slicon or teflon spray that is available at most hardware stores. ¯...
- Page 8 FIGURE 9 STEP 9: Slide the STACK BOOM (21 over the GUIDE ROD S (4) and inside the tube on the UPRIGHT FRAME as shown in FIGURE FIGURE 10 ;TEP 10: ¯ LOOSLY assemble the TOP BOOM to the UPRIGHT FRAME using the previously removed 1/2 X 2-1/2" BOLT, one 1/2 X 3" BOLT, oue 3/8 X 2-3/4"...
- Page 9 FIGURE 11 STEP 11: Route the 129-1/2" CABLE (7) through the TOP BOOM and the STACK BOOM (2) as shown in FIGURE TIGttTEN any LOOSENED PULLEY connection after CABLE has been routed. FIGURE 12 3/8 X 2.3/4,, STEP 12: ¯ SECURELY assembletwo 3-1/2"...
- Page 10 CABLE accordingly and retighten the jam nut. Thank you for purchasing the Parabody 897104 WEIGHT ment, callyour local Parabody distributor or call the Parabody customer service department at (800) 328-9714. ,/2 I...
