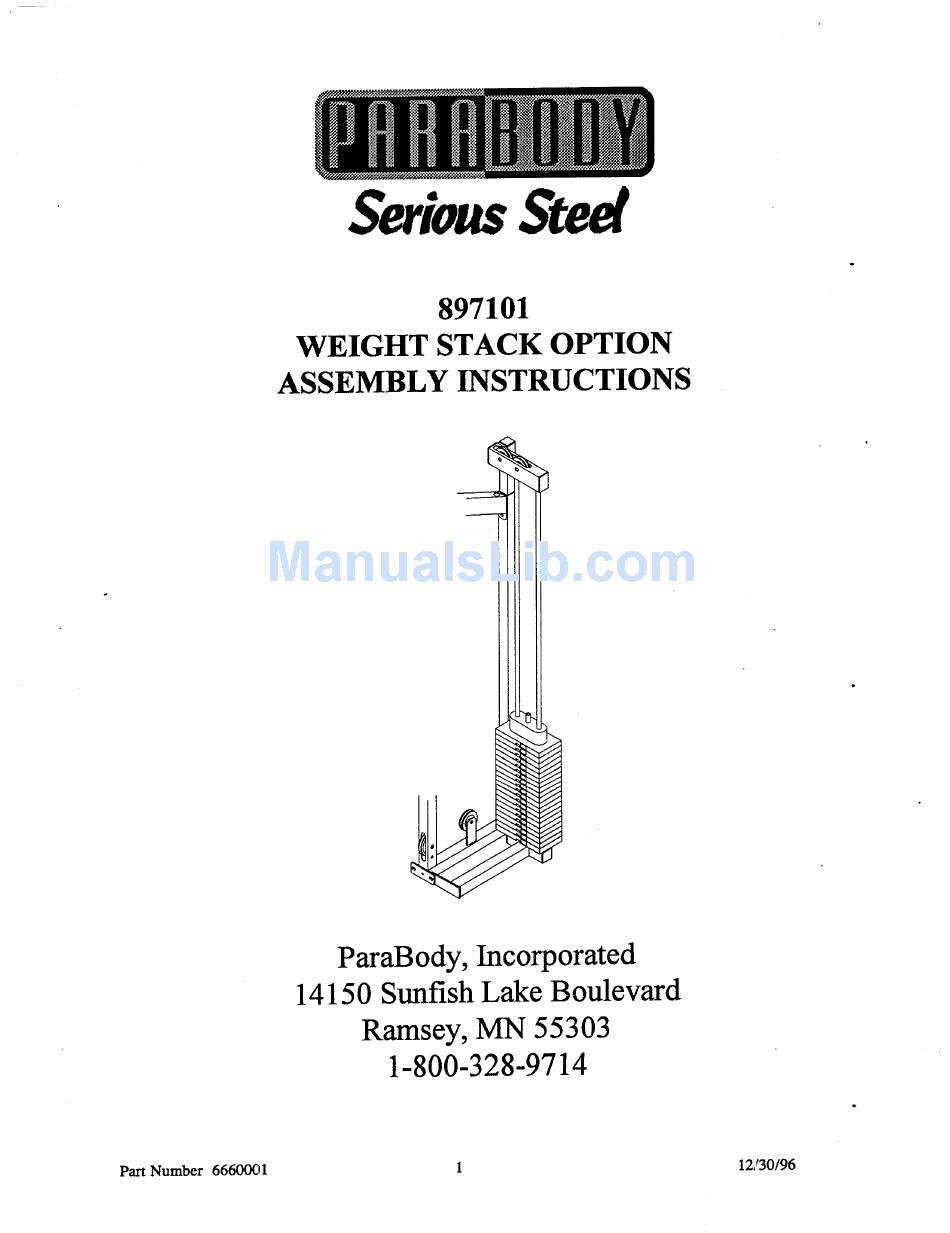

- Page 1 Serious Steel 897101 WEIGHT STACK OPTION ASSEMBLY INSTRUCTIONS ParaBody, Incorporated 14150 Sunfish Lake Boulevard Ramsey, MN 55303 1-800-328-9714 12/30/96 Part Number 6660001...
- Page 2 WEIGHT STACK 897101 SORT Ad~-D COUNT ALL PARTS BEFORE BEGINNING ASSEMBLY ItARDWARE: ITEM .NAM~’,/DESCRIPTION 3/8 X 2-:3/4 IN BOLT 3/8 X 1-1/2 IN BOLT 3/8 IN WASHER 1/2 IN LOW HEIGHT LOCK NUT ... 3/8 IN LOCK NUT ... WEIGITF STACK PIN ...
- Page 3 897101 WEIGHT STACK OPTION ASSEMBLY INSTRUCTIONS; Remove the ].AT BAR from the HIGH PULLEY CABLE, and set aside. Loosen and re,hove the three (3) 3-1/2 X 1 IN PULLEYS from the TOP BOOM WELDMENT of the PROSYSTEM. Detach HIGH PULLEY CAl3LE from the WEIGHT CARRIAGE WELDMENT, remove the CABLE.
- Page 4 897101 WEIGHT STACK OPTION ASSEMBLY INSTRUCTIONS Insert two (21) GUIDE ROD BUSHINGS into the ROUND TUBES of the PULLEY HOUSING WELDMEI~[T as shown. Also insert one (1) 1-3/4 IN SQ END CAP into the top of the PULLEY HOUSING WELDMENT.
- Page 5 DESCRIP~ON DASH NO I 01 IAS SHOWN ,.3-1/2 X, 1 IN PULLEY (2) 3 X 2 IN END CAP (2) ,3/8 IN FLANGE SPACER (4) 3/8 X 2-3/4 IN BOLT (2) WEIGHT STACK PIN UPRIGHT FRAME WELDMENT 1/2 IN LOW HEIGHT LOCK NUT BASE 1-.3/4 IN SQ END CAP...
- Page 6 WEIGHT STACK CABLE (’d66010f.) PULLEY BLOCK UPRIGHT FRAME WELDMENT LOW PULLEY CABLE TOLERANCES .PARABODY, INC. (EXCEPT A:$ NOTED) DECIMAL RAMSEY, MINNESOTA ASSY INST, 897101 ,scAu~ 1/21 ! S~ZE ~"~, o~, B ANGULAR REVISIONS DESCRIPTION CHG NO APP’D CABLE ROUTING DIAGRAM...
