Majestic MERC32VN Installation Manual

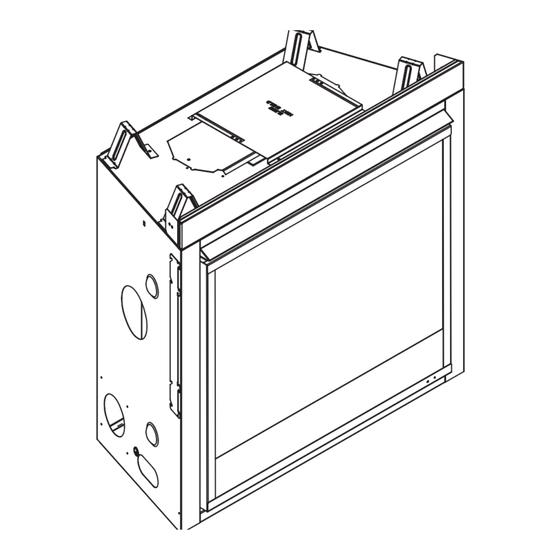

Mercury series direct vent gas fireplace
Hide thumbs Also See for MERC32VN:
Table of Contents

Advertisement

Quick Links

See also: Owner's Manual
INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!
MERCURY
SERIES
Models:
MERC32IN
MERC32IL
MERC32VN
MERC32VL
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certifi ed kit is used.
Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16
Installation Manual
Installation and Appliance Setup
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other fl am-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fi re department.
• Installation and service must be performed
by a qualifi ed installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
In the Commonwealth of Massachusetts installation must be
performed by a licensed plumber or gas fi tter.
See Table of Contents for location of additional Commonwealth
of Massachusetts requirements.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MERC32VN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Majestic MERC32VN

Summary of Contents for Majestic MERC32VN

  • Page 1 See Table of Contents for location of additional Commonwealth gases, unless a certifi ed kit is used. of Massachusetts requirements. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 2: Table Of Contents

    G. Vent Diagrams ....... . . 16 F. Install Majestic Decorative Front/AngledHood ..55...

  • Page 3: Installation Standard Work Checklist

    _____________________________________________________________________________________ _________________________________________________________________________________________________ _________________________________________________________________________________________________ Comments Communicated to party responsible ____________________ by ______________________on ___________ (Builder / Gen. Contractor/) (Installer) (Date) = Contains updated information. 2401-982 Rev. C 11/16 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 4: Product Specifi C And Important Safety Information

    • A 110-120 VAC circuit for this product must be protected with ground-fault circuit-interrupter protection, in compliance with the applicable electrical codes, when it is installed in locations such as in bathrooms or near sinks. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 5: Requirements For The Commonwealth Of Massachusetts

    VENT DIRECTLY BELOW. KEEP CLEAR OF ALL OB- of the installation. STRUCTIONS”. See Gas Connection section for additional Common- wealth of Massachusetts requirements. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 6: Getting Started

    30 degrees or more depending on the thermometer settings and/or gas control which has been under water. and material characteristics being measured. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 7: Framing And Clearances

    MERC32 Location Inches Millimeters Location Inches Millimeters 16-5/16 31-1/8 27-3/16 25-3/4 18-1/16 12-7/8 34-5/16 15-7/8 6-5/8 6-3/16 2-3/8 2-3/16 36-1/4 1-1/16 8-13/16 Figure 3.1 Appliance Dimensions Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 8 See Section 10 for facing and fi nishing detail. MERC32 DECORATIVE FRONT 20-7/8 30-15/16 2-5/8 1-1/2 27-1/8 28-5/8 SRV2401-021 Figure 3.3 Decorative Front Dimensions Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 9: Clearances To Combustibles

    E Min. F Min. 59-1/2 62-1/4 16-1/4 48-1/2 68-3/4 15-1/16 7-1/2 7-1/8 See Section 10.B for MERC32 Alcove Installation 1067 1511 1118 1581 1232 1746 Figure 3.4 Appliance Locations Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 10: Constructing The Appliance Chase

    (or an equivalent method may be used) to achieve maximum air tightness. • Failure to maintain airspace could cause overheating and a fi re. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 11: Termination Location And Vent Information

    Over 20/12 to 21/12 ..........8.0 * H minimum may vary depending on regional snowfall. Refer to local codes. Figure 4.1 Minimum Height From Roof To Lowest Discharge Opening Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 12: Chimney Diagram

    2 sides beneath the fl oor. venting system does not meet these requirements. • Vinyl protection kits are suggested for use with vinyl siding. Figure 4.3 Minimum Clearances for Termination Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 13: Approved Pipe

    WARNING! Risk of Fire or Asphyxiation. This appli- ance requires a separate vent. DO NOT vent to a pipe serving a separate solid fuel burning appliance. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 14: Use Of Elbows

    8-1/2 DVP24 DVP36 25-1/2 DVP48 1219 DVP6A 3 to 6 76 to 152 2-1/8-4-1/4 54-108 DVP12A 3 to 12 76 to 305 2-1/8-8-1/2 54-216 Figure 4.4 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 15: Measuring Standards

    3 in. CLEARANCE downward slant to allow any moisture in cap to be released. FLEX-VENT 1 in. CLEARANCE Figure 4.6 Flex Vent Pipe - Generic Fireplace Shown Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 16: Vent Diagrams

    MUST be a 25% reduction in total H when using fl ex vent. When using SLP-FLEX7 (7 in.) venting, refer to the venting tables included with the adapter collar kit. Figure 4.7 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 17 • When using SLP-HRC-SS termination cap on top vented fi replaces, a one foot minimum vertical vent section is required before installing fi rst elbow. Figure 4.8 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 18 • When using SLP-HRC-SS termination cap on top vented fi replaces, a one foot minimum vertical vent section is required before installing fi rst elbow. Figure 4.9 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 19 fl ame height. If the vent confi guration has Figure 4.11 a total vertical of 15-60 feet, an exhaust restrictor may be needed. The exhaust restrictor can be located in the appliance manual bag. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 20  **Note: When using SLP-FLEX (6-5/8 in.) venting, there MUST be a 25% reduction in total H when using fl ex vent. INSTALLED HORIZONTALLY Figure 4.13 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 21  **Note: When using SLP-FLEX (6-5/8 in.) venting, there MUST be a 25% reduction in total H when using fl ex vent. Figure 4.14 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 22 = 24 in. Max. (610 mm) Note: Use DVP Series components only. Figure 4.15 = 9 in. (229 mm) Maximum One 45º Elbow Note: Use DVP Series components only. Figure 4.16 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 23 1.8 m 13-1/2 ft. 4.1 m HORIZONTALLY MAX. = 7-1/2 ft. (2.3 m) MAX. = 13-1/2 ft. (4.1 m) MAX. = 40 ft. (12.2 m) Figure 4.18 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 24 2.0 m 3 ft. 914 mm H MAX. = 6-1/2 ft. (2 m) V + H+ H MAX. = 40 ft. (12.2 m) INSTALLED HORIZONTALLY Figure 4.20 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 25 MAX. = 40 ft. (12.2 m) *No specifi c restrictions on this value EXCEPT V + H CANNOT exceed 40 ft. (12.2 m). Note: Use DVP Series components only. Figure 4.21 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 26 CAUTION! DO NOT use any fl ue restrictor when vent- ing with the DV-46DVA-GCL adapter and LINK-DV30B kit. This could result in poor fl ame appearance, sooting, pilot malfunction, or overheating. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 27 3.05 m 0 ft. 0 mm Minimum 10 ft. 3.05 m Maximum 40 ft. 12.2 m 2 ft. 610 mm Maximum 40 ft. 12.2 m Figure 4.24 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 28: Vent Clearances And Framing

    Top: 2-1/2 in. (64 mm) Bottom: 1/2 in. (13 mm) Sides: 1 in. (25 mm) Figure 5.1 Horizontal Venting Clearances To Combustible Materials Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 29: Wall Penetration Framing/Firestops

    Whenever a non-combustible wall is penetrated, the wall shield fi restop is only required on one side and no heat shield is necessary. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 30: Ceiling Firestop/Floor Penetration Framing

    INSTALL ATTIC INSULATION SHIELDS BEFORE OR AFTER INSTALLATION OF VENT SYSTEM CEILING FIRESTOP CEILING FIRESTOP INSTALLED BELOW CEILING INSTALLED ABOVE CEILING Figure 5.4 Installing the Attic Shield Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 31: Appliance Preparation

    The shield should be centered directly above the elbow, and positioned so that it creates a 1/2 inch airspace between the shield and the combustible surface. See Figure 6.2 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 32 (2) sheet metal screws. SCREW 3 IN. (76mm) 2 SCREWS 2 SCREWS Figure 6.4. Elbow Heat Shield Installed Figure 6.7 Replace the two screws as shown. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 33 Figure 6.9 Remove the insulation basket and white insu- lation from the center vent pipe. Figure 6.10 Remove the insulation from the outer vent pipe. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 34: Rear Vent

    Figure 6.14 (Generic Fireplace Shown) Fold the center parts of the retaining band out and use to remove the seal cap. NOTICE: Once the seal cap has been removed it CANNOT be reattached. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 35: Installing The Optional Heat-Zone Gas Kit

    Figure 6.17 Heat Zone Cover Plate NAILING TABS (BOTH SIDES) Figure 6.18 Proper Positioning, Leveling And Securing Of An Appliance Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 36: Venting And Chimneys

    Use screws no longer than 1/2 INCORRECT in. (13 mm). If predrilling screw holes, DO NOT penetrate Figure 7.4 Seams inner pipe. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 37: Assemble Slip Sections

    • All unit collar, pipe, slip section, elbow and cap outer Figure 7.5 Adding Venting Components fl ues shall be sealed. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 38: Secure The Vent Sections

    Figure 7.10 Rotate Seams for Disassembly connection point to appliance. 120º Figure 7.11 Align and Disassemble Vent Sections Figure 7.8 Securing Vertical Pipe Sections 120º Figure 7.9 Securing Horizontal Pipe Sections Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 39: Vertical Termination Requirements

    • Caulk the perimeter of the fl ashing where it contacts the roof surface. See Figure 7.13. • Caulk the overlap seam of any exposed pipe sections that are located above the roof line. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 40: Horizontal Termination Requirements

    Figure 7.15 Figure 7.15 Important Notice: Heat shields may not be fi eld constructed. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 41 DVP-TRAP1 can adjust 1-1/2 in. (3-1/8 to 4-5/8) DVP-TRAP2 can adjust 4 in. (5-3/8 to 9-3/8) DVP-HPC1 can adjust 2-1/8 in. (4-1/4 to 6-3/8) DVP-HPC2 can adjust 4-1/8 in. (6-3/8 to 10-1/2) Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 42: Electrical Information

    Verify proper operation after servicing. WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature insulation. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 43: Wiring Requirements

    - Use low resistance thermostat wire for wiring from ignition system to the wall switch and thermostat. - Keep wire lengths short as possible. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 44 3 VAC WHITE GROUND TO FIREPLACE PLUG IN CHASSIS WIRES BATTERY PACK (TO BROWN) REMOTE PLUG IN VALVE Figure 8.4 Intellifi re Ignition Wiring Diagram with Remote Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 45 Figure 8.6 Junction Box Wired to Wall Switch (1/4 in. male) as shown. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 46: Gas Information

    4500 feet (1370 m). • If substituting for these components, please consult local codes for compliance. Check with your local gas utility to determine proper orifi ce size. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 47: Air Shutter Setting

    NOTICE: If sooting occurs, provide more air by opening the air shutter. Air Shutter Settings Model Gas Type Setting MERC32IN 3/16 in. MERC32IL Propane 1/2 in. MERC32VN 3/16 in. MERD32VL Propane 1/2 in. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 48: Finishing

    See Dimension V on Appliance Dimension Diagram 0 IN. 0 IN. (Figure 3.1) Figure 10.2 Clearances To Combustibles Mantels Or Other Combustibles Figure 10.1 Non-combustible Facing Diagram Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 49 3 FT. MAXIMUM FIREPLACE OPENING See Dimension B on Appliance Dimension Diagram (Figure 3.1) Figure 10.4 Non-Combustible Mantel Leg or Wall Projections (Acceptable on both sides of opening) Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 50: Decorative Front Dimensions For Finishing

    FINISHING MATERIAL FINISHING MATERIAL 4 IN. MAXIMUM THICKNESS 4 IN. MAXIMUM THICKNESS Stop fi nishing material fl ush with fi replace surround opening. Figure 10.7 Inside Fit Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 51: Appliance Setup

    fi rebox or underneath in the control cavity. latch the four glass assembly latches into the groove on the glass frame. LATCHES (BOTH BOTTOM AND TOP) GLASS ASSEMBLY Figure 11.1 Fixed Glass Assembly Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 52: Install The Log Assembly

    Place the hole onto the shoulder screw as shown in Figure 4. Push the left side of Log 1 back until it contacts the back wall of the fi rebox. Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 53 Rest the back of Log 6 onto the fl at spot on the far right of Log 1. Log 6 will rest against the back of the appliance. Figure 9. LOGS-MERC32 Installed 2401-910B Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 54: Ember And Lava Rock Placement

    Delayed ignition may occur. for 3 to 5 applications. NO EMBERS IN SHADED AREA LAVA ROCK Figure 11.2 Placement of Embers Figure 11.4 EMBERS Figure 11.3 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 55: Install Majestic Decorative Front/Angledhood

    3. Hang decorative front onto shoulder bolts. 4. Install hood on appliance by inserting into the two hood clips. See Figure 11.5. Figure 11.5 Install Majestic Decorative Front and Angled Hood Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 56: Reference Materials

    (356 mm) 5 in. 12 in. (127 mm) (305 mm) 6 in. (152 mm) DVP-HVS (Vent Support) DVP-WS (Wall Shield Firestop) Figure 12.1 DVP Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 57 117 mm Length DVP-TRAP 5-3/8 in. 9-3/8 in. Trap2 Horizontal Termination Cap 137 mm 238 mm DVP-TRAP2 DVP-TRAP1 DVP-TRAPK2 DVP-TRAPK1 DVP-HPC2 DVP-HPC1 Figure 12.2 DVP Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 58 9-1/2 in. (352 mm) (241 mm) 26 in. 660 mm 14 in. (356 mm) DVP-HSM-B DRC-RADIUS Extended Heat Shield Cap Shield Figure 12.3 DVP Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 59 (356 mm) 3/8 in. (10 mm) 1 in. (25 mm) 7-3/4 to 10-3/8 in. (197 to 264 mm) DVP-FBHT FireBrickTermination Cap Figure 12.4 DVP Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 60 (206 mm) (330 mm) 15 in. (381 mm) SLP-HRC-SS Horizontal Termination Cap DVP-TB1 DVP-TB1 SL-2DVP SLP90 ASSEMBLY DVP-TB1 Figure 12.6 SLP Vent Components HORIZONTAL TERMINATION CAP Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 61 1-1/2 in. 12 in. 5-1/2 in. 220 mm 38 mm 305 mm 146 mm SLP-WS SLP-FS Wall Shield Firestop Ceiling Firestop Figure 12.7 SLP Series Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 62 367 mm 26 in. 660 mm 2-5/16 in. 14-7/16 in. 59 mm 367 mm DVP-HSM-B SLP-WT-BK Extended Heat Shield Wall Thimble-Black Figure 12.8 SLP Series Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 63 343 mm 121 mm 7-3/4 to 10-3/8 in. (197 to 264 mm) SLK-SNKD DVP-FBHT Snorkel Horizontal Termination Cap Termination Cap Figure 12.9 SLP Series Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
  • Page 64 COAXIAL to COLINEAR VENTING LINK-DV30B DVP-2SL DV-46DVA-GCL Flex Liner Kit Adapter Coaxial/Colinear Appliance Connector Figure 12.10 Coaxial to Colinear Vent Components Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...

  • Page 65: Accessories

    Please contact your Majestic dealer with any questions or concerns. For the location of your nearest Majestic dealer, please visit www.majesticproducts.com. Printed in U.S.A. - Copyright 2016 Majestic • MERC32IN, MERC32IL, MERC32VN, MERC32VL Installation Manual • 2401-980 Rev. C • 11/16...
