CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!

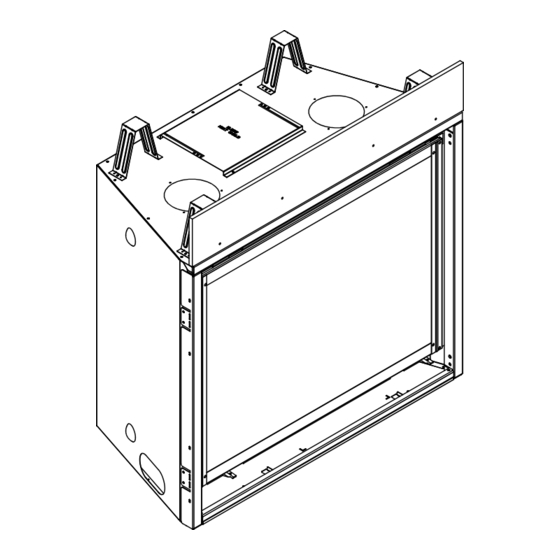

Models:
This appliance may be installed as an OEM
installation in manufactured home (USA
only) or mobile home and must be installed
in accordance with the manufacturer's
instructions and the Manufactured Home
Construction and Safety Standard, Title 24
CFR, Part 3280 in the United States, or the
Standard for Installation in Mobile Homes,
CAN/CSA Z240 MH Series, in Canada.
This appliance is only for use with the type(s)
of gas indicated on the rating plate. This
appliance is not convertible for use with other
gases, unless a certified kit is used.
Majestic • MER36N, MER36L, MER42N, MER42L Owner's Manual • 2595-981 Rev. B • 5/23
Owner's Manual
Operation and Maintenance
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and must be installed for
the protection of children and other at-risk
individuals.
Decorative barrier front must be ordered separately at
time of appliance purchase. See Section 3.A.
DANGER
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MER36N and is the answer not in the manual?

Questions and answers

Related Manuals for Majestic MER36N

Summary of Contents for Majestic MER36N

  • Page 1 Decorative barrier front must be ordered separately at time of appliance purchase. See Section 3.A. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 2: Welcome

    CANADA Serial Number (Modèle): XXXXXXXXX ALTITUDE:......0-2000 FT....0-4500 FT. MAX. INPUT BTU/h ....xx,xxxx ....xx.xxx Serial: MIN. INPUT BTU/h ....xx.xxx......xx.xxx (Série): ORIFICE SIZE ......#xx DMS ....#xx DMS Xxxx-xxx Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 3: Table Of Contents

    C. Contact Information ......29  = Contains updated information. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 4: Limited Lifetime Warranty

    Firebox and heat exchanger, FlexBurn® System 3 years Lifetime (engine, inner cover, access cover and fireback) None 1 Year All purchased replacement parts Page 1 of 2 4021-645M 9/21 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 5 EXPRESSED WARRANTY SPECIFIED ABOVE FOR THE APPLICABLE PRODUCT. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. Page 2 of 2 4021-645M 9/21 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 6: Product Specific Information

    Some local building codes require the use of tempered glass with permanent marking in such locations. Glass meeting this requirement is available from the factory. Please contact your dealer or distributor to order. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 7: Important Safety And Operating Information

    • Never leave children alone near a hot fireplace, whether Figure 3.1 Clear Space Requirement - All Models operating or cooling down. • Teach children to NEVER touch the fireplace. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 8: General Operating Parts

    • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 9: Lighting Instructions (Ipi)

    G. Lighting Instructions (IPI) Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 10: Appliance Break-In

    Air will be flowing from both the appliance opening and the passive heat opening. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 11: Operation During A Power Outage (Intellifire Touch ® )

    Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including fan, lights, or any other auxiliary functions that require household 110-120 VAC power. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 12: Detailed Component Operating Instructions

    IFT-RC400 or IFT-RC150. The wired wall - Be aware the appliance may be HOT, use switch is NOT available if a Power Vent is used. care in accessing the IFT-ECM. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 13 Contact your dealer to order. Fan Kit (Optional) If desired, a fan kit may be added. Contact your dealer to order the correct fan kit. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 14: Maintenance And Service

    Valve Plate Assembly As needed Removal Electrical Service As needed and Repair LATCHES (BOTH BOTTOM GLASS FRAME AND TOP) TABS GLASS ASSEMBLY Figure 4.1 Fixed Glass Assembly Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 15 • Verify termination cap clearance to subsequent construc- tion (building additions, decks, fences, or sheds). • Inspect for corrosion or separation. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 16: Maintenance Tasks - Qualified Service Technician

    • Remove all foreign objects. ensure the lighting of the main burner occurs within four • Verify unobstructed air circulation. seconds of the main gas valve opening. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 17 Verify proper operation after servicing. WARNING! Risk of Shock! Replace damaged wire with type 105º C rated wire. Wire must have high temperature insulation. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 18: Frequently Asked Questions And Troubleshooting

    Installer’s Manual for this the touch. appliance. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.majesticproducts.com to locate a dealer. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 19: Frequently Asked Questions - Intellifire Touch Controls (Optional Ift-Rc400)

    90 seconds. If this failure appliance did not start. Try again period of appliance inactivity. persists, contact dealer for service. by pressing Flame On. Gas control system failure. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 20: Troubleshooting

    If open or shorted, replace valve. Check valve harness wire continuity, if open replace 6-pin harness. Pilot won’t light, there is no noise Spark coil failure. Replace ECM. or spark, 2 Red/2 Green Lockout. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 21 Damaged pilot assembly. tance between tip of sense rod and IFT-ECM connector, should be less than 1 ohm. Replace pilot assembly if damage is de- tected. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 22: Reference Materials

    Passive Heat-Front, Side or Top Discharge PH-SIDETRIM Passive Heat registers for side discharge (requires PH-MR) PH-FRTTRIM-36, PH-FRTTRIM-42 Passive Heat registers for front discharge (requires PH-MR) GFK-160A Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 23: Service Parts

    B. Service Parts Beginning Manfacturing Date: Jun 2023 Meridian 36” Gas Fireplace - DV Ending Manufacturing Date: Active Log Set Assembly Part number list on following page. 05/23 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 24 Glass Clip Assembly (Top) Qty 2 req 2581-400 Glass Clip Assembly (Bottom) Qty 2 req 2155-045 Mineral Wool 050-721 Qty 2 req Seal Cap 4031-221 Exhaust Shield 385-105 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 25 Service Parts Meridian 42” Gas Fireplace - DV Beginning Manfacturing Date: Jun 2023 Ending Manufacturing Date: Active Log Set Assembly Part number list on following page. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 26 Glass Clip Assembly (Top) Qty 2 req 2581-400 Glass Clip Assembly (Bottom) Qty 2 req 2155-045 Mineral Wool 050-721 Seal Cap Qty 2 req 4031-221 Exhaust Shield 385-105 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 27 **Fuse for battery pack can be sourced locally, not a warranty item. Specs are 250v, 3A fuse, 3/4” long Additional service part numbers appear on following page. Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
  • Page 28 Touch Up Paint TUP-GBK-12 Conversion Kits Conversion Kit NG NGK-MID Conversion Kit Propane LPK-MID Pilot Orifice, NG SRV593-528 Pilot Orifice, Propane SRV593-527 Regulator, NG NGK-DXV-50 Regulator, Propane SRVLPK-DXV-50 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...

  • Page 29: Contact Information

    This product may be covered by one or more of the following patents: (United States) 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7234932, 7258116, 7322819, 7422011, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945E Printed in U.S.A. - Copyright 2023 Majestic • MER36N, MER36L, MER42N, MER42L Owner’s Manual • 2595-981 Rev. B • 5/23...
