Keithley 2200 series Operation Manual

Series 2 200 M ulti-­‐Channel P ower S upplies
Q uick S tart F ront P anel a nd P rogramming O peration G uide
Introduction

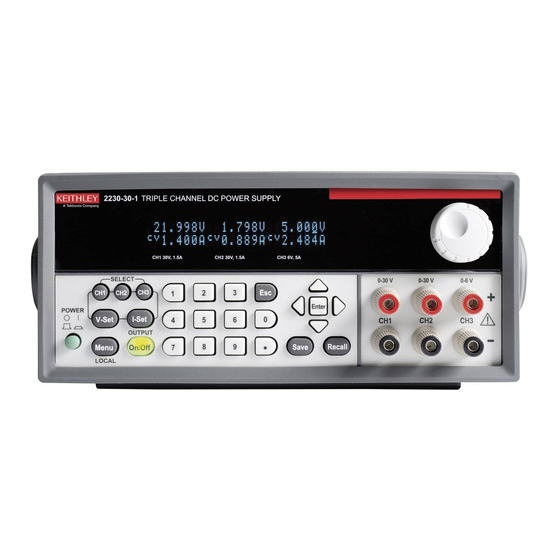

This o perating g uide d escribes f ront p anel o peration a nd c orresponding S CPI c ommand c ode t o p erform
essential f unctions o f t he m odel 2 230-­‐30-­‐1 T riple C hannel P ower S upply a nd t he m odel 2 220-­‐30-­‐1 D ual
Channel P ower S upply. R eferences t o t he t hird c hannel s pecifically a pply t o t he m odel 2 230-­‐30-­‐1 t riple
channel p ower s upply.
Single C hannel O peration
The s eries 2 200 m ulti-­‐channel p ower s upplies h ave a ll c hannels e nabled i n t heir d efault s tate. H owever,
any c hannel c an b e d isabled a nd e nabled i ndependently. T he f ollowing e xample d emonstrates t he s teps
to e nable a nd o utput a v oltage o n c hannel 2 .
Front P anel O peration
STEP 1 E nabling C hannel 2
1. Press M enu.
2. Use t he a rrow k eys o r t he n avigation w heel t o s elect E nable C hannels.
3. Press E nter t o e nter t he s ubmenu.
4. Use t he a rrow k eys o r t he n avigation w heel t o s elect E nable/Disable C H2.
5. Press E nter t o e nter t he s ubmenu.
6. Use t he a rrow k eys o r t he n avigation w heel t o s elect E nable C H2 ( default).
7. Press E nter t o e nable c hannel 2 .
8. Press E sc a c ouple o f t imes t o r eturn t o t he m ain d isplay.
STEP 2 S etting t he O utput V oltage o n C hannel 2
9. Press C H2.
10. Press V -­‐Set.
11. Use t he a rrow k eys, n umeric k eypad, o r t he n avigation w heel t o e nter t he d esired v oltage
output v alue. I f u sing t he a rrow k eys o r t he n avigation w heel, u se t he l eft a rrow k ey t o h ighlight
the d igit t hat r epresents t he r esolution f or a djustments.
12. Press E nter t o s et t he v oltage.
STEP 3 S etting t he C urrent L imit o n C hannel 2
13. Press I -­‐Set.
14. Use t he a rrow k eys, n umeric k eypad, o r t he n avigation w heel t o e nter t he c urrent l imit. I f u sing
the a rrow k eys o r t he n avigation w heel, u se t he l eft a rrow k ey t o h ighlight t he d igit t hat
represents t he r esolution f or a djustments.
15. Press E nter t o s et t he c urrent.
1
