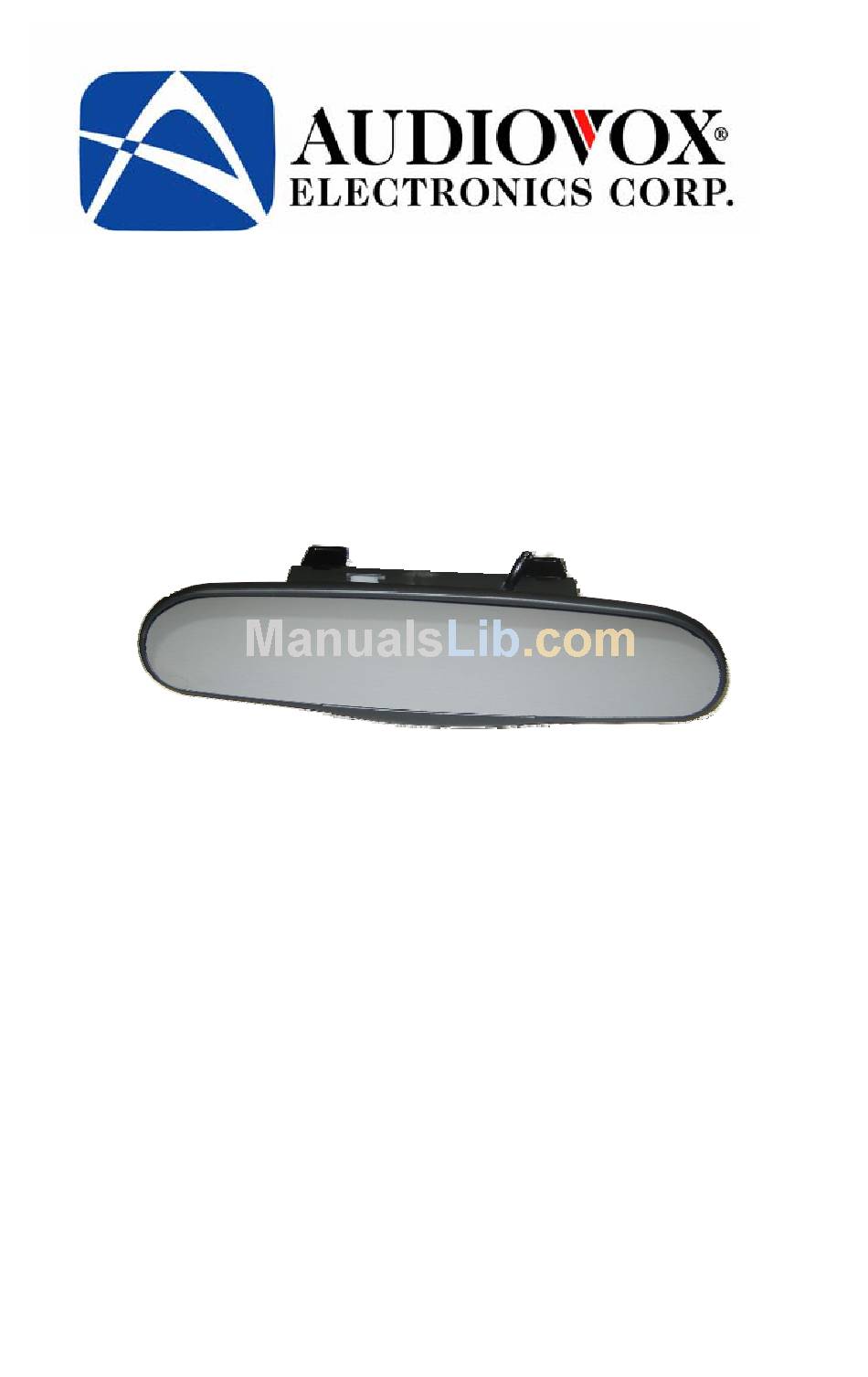

Rearview Mirror with Integrated 3.5" TFT
Features:
• Rearview mirror with 3.5" TFT color monitor
• Mounts to your existing rear view mirror w/tension spring
clamps
• Rearview camera input
• Automatically displays backup camera image when vehicle is in
reverse
Monitor
Model: RVM35
Installation/User's Manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Audiovox RVM35
Summary of Contents for Audiovox RVM35
- Page 1 Installation/User’s Manual Features: • Rearview mirror with 3.5" TFT color monitor • Mounts to your existing rear view mirror w/tension spring clamps • Rearview camera input • Automatically displays backup camera image when vehicle is in reverse Monitor Model: RVM35...
-
Page 2: Warnings
Your first priority while driving should always be the safe operation of your vehicle. Audiovox Electronics Corporation cannot accept any responsibility whatsoever for accidents resulting from failure to observe these precautions or safety instructions. -
Page 3: Table Of Contents
TABLE OF CONTENTS Warnings Product Description Packing List Installation Instructions Operation Maintenance Troubleshooting Warranty Card Product Description This Rearview Mirror/Monitor, when used with a backup camera, is designed to assist the driver by providing a clear and wide image of the area behind the vehicle whenever the vehicle is shifted into reverse. -
Page 4: Packing List
Packing List Description Figure Rear View Mirror Power Cable Tap Connectors Alcohol Wipe... -
Page 5: Installation Instructions
Installation Instructions Mounting the Mirror/Monitor Place the monitor spring tabs at the top of the existing mirror and gentle pull down expanding the spring tabs until the bottom tabs fit under the existing mirror. Spring Tabs Connect the power cable to the Monitor/Mirror cable. Place (hide) the monitor cable behind the windshield trim piece and continue along under the head liner to the rear of the vehicle and into the truck if applicable. -
Page 6: Wiring The Monitor
Wiring the Monitor Wire the Power Cable to the vehicle’s reverse lamp. a) Locate the reverse lamp in the tail light assembly. Using the tap connector supplied, perform the following steps: Place the un-stripped positive lead wire on the run channel. Insert the un-stripped red power wire completely. -
Page 7: Operation
Operation The monitor will automatically display the rear observation camera image whenever the vehicle is engaged in reverse. Maintenance Though your backup system requires minimum care, you should maintain its condition and performance using the following the guidelines: • Keep your system away from excessive moisture, extreme heat or cold and magnetic fields. -
Page 8: Troubleshooting
Troubleshooting Symptoms The ON/OFF signal light <D> is not on after the car is started No video signal appears while reversing the car Video image is not sharp enough Solutions Ensure that the parallel red and black line from the control box is connected properly. 1. - Page 10 © 2008 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
