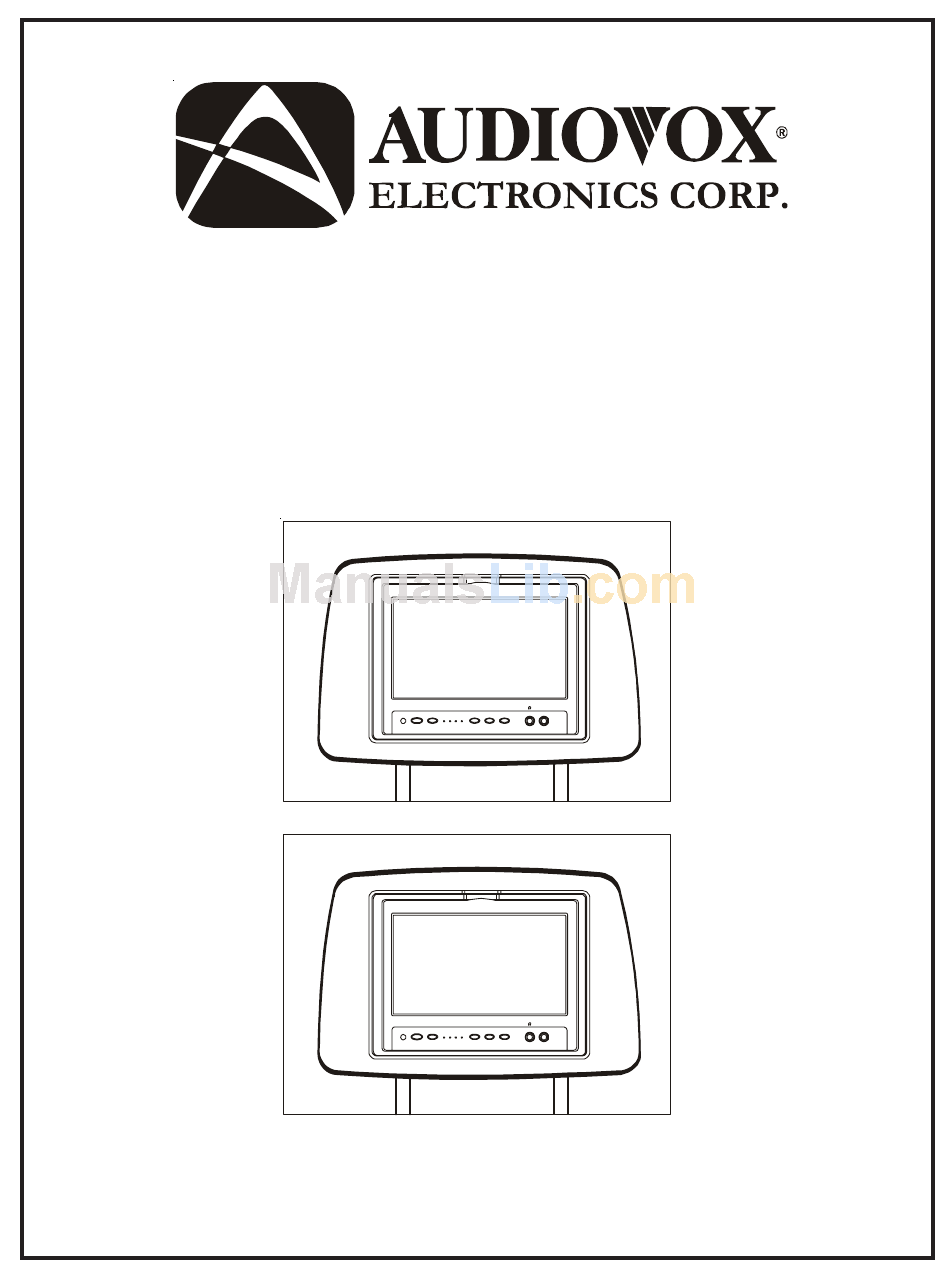

- Page 1 Two 7" Monitors w/Built-in DVD Players and Audio/Video Input Capability Mounted in Vehicle Specific Headrests Installation Manual HR7DDPKG S CRE E N P OW E R M O DE P LAY S TO P S OUR CE S CRE E N...
- Page 2 IMPORTANT An LCD panel and/or video monitor may be installed in a motor ve- hicle and visible to the driver if the LCD panel or video monitor is used for vehicle information, system control, rear or side observation or navigation. If the LCD panel or video monitor is used for television reception, video or DVD play, the LCD panel or video monitor must be installed so that these features will only function when the vehicle is in ‘park’...
- Page 3 The Materials included in this package HR7DDPKG System Monitor (Master 1-#HR7DD (M1), One Master 2-#HR7DD (M2) Remote Control (P/N 136-3785) HR7DD System Main Cable (P/N 112-3457) Dual Frequency IR Headphone (P/N IR2CHS) FM Modulator package (P/N 136C3655) A/V Adapter Cable (P/N 112B3227)
- Page 4 FM ON/OFF button on the remote control. 3) The HR7DDPKG system is supplied with two IR Headphones (P/N IR2CHS). The headphones have an A-B switch that allow the users to select the audio from either the M1 (CH A) or the M2 (CH B).
- Page 5 3) Install the Headrests: a.Remove vehicle’s original headrests. b.Hold the HR7DDPKG headrest above the seat and insert the two cables into the headrest support tube holes. Make sure that the headrest is in the correct position (display facing the rear).
- Page 6 HR7DD PKG SYSTEM WIRING DIAGRAM * NOTE: The component may not be needed in all vehicles. Install only If experiencing engine noise...
- Page 7 For Customer Service Visit Our Website At .audiovox.com Product Information, Photos, FAQ’s Owner’s Manuals © Copyright 2004 Audiovox Electronics Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-7165...
