Hardware Specifications
Sourcefire Series 2 Devices
Serial port VGA port
.

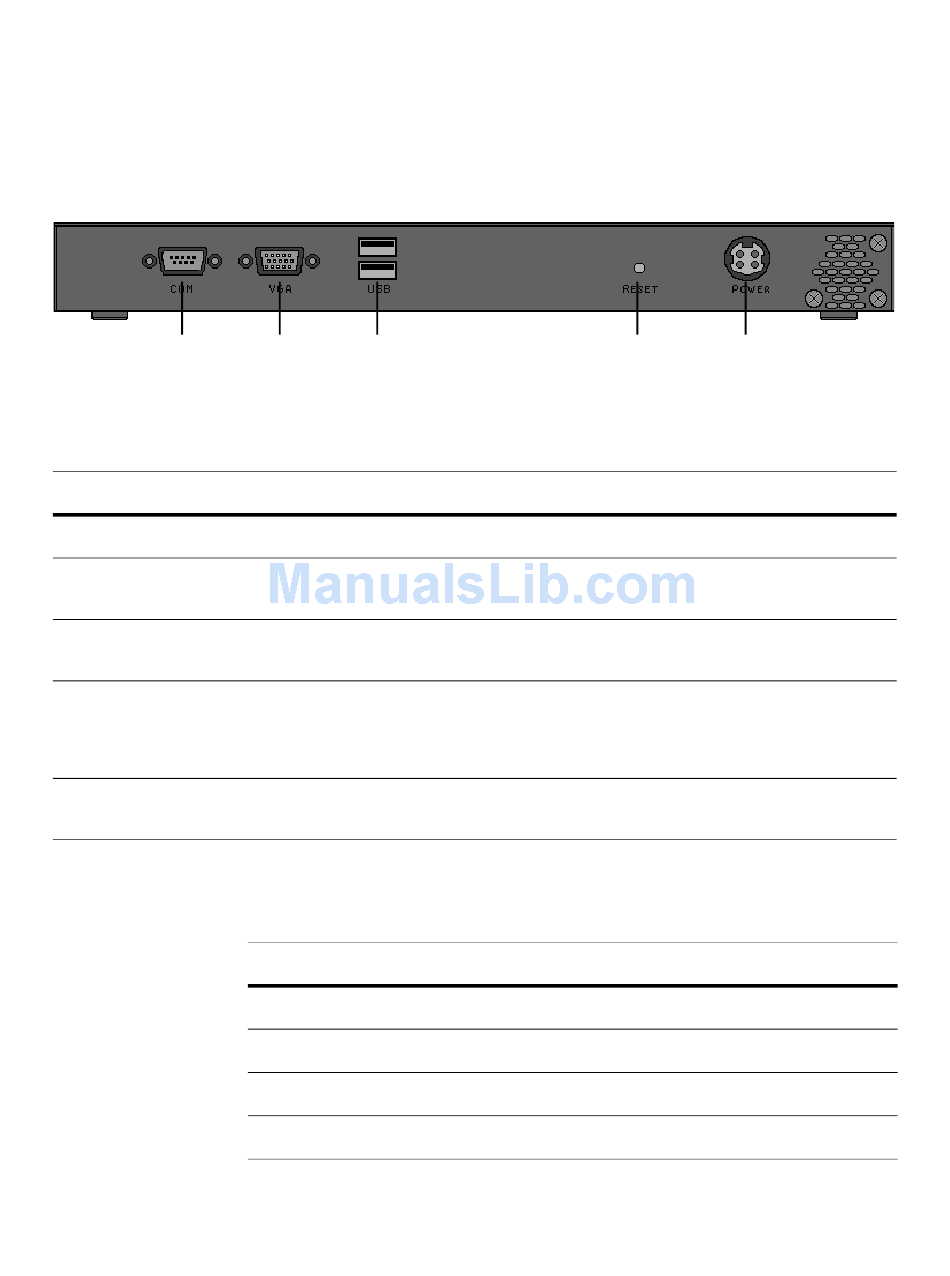

3D500, 3D1000, and 3D2000 System Components: Rear View
F
EATURE
Power supply
Serial port
VGA port
USB ports
Reset button
Version 5.2
3D500, 3D1000, and 3D2000 Chassis Rear View
The rear of the chassis contains the connection ports and power supply.
USB port
The following table describes the features that appear on the rear of the
appliance.
D
ESCRIPTION
Provides power to the appliance through an AC power source.
Allows you to establish a direct workstation-to-appliance connection. This
gives you direct access to all of the appliance's management services.
Allows you to attach a monitor to the appliance, as an alternative to using the
serial port to establish a direct workstation-to-appliance connection.
Allows you to attach a monitor to the appliance, as an alternative to using the
serial port to establish a direct workstation-to-appliance connection. You must
also use a USB port to restore the appliance to its original factory-delivered
state, using the thumb drive delivered with the appliance.
Allows you to reboot the appliance without disconnecting it from the power
supply.
The following table describes the signal present on the DB-9 connector.
3D500, 3D1000, and 3D2000 Serial Port Pin Assignments
P S
IN
1 DCD
2 RD
3 TD
4 DTR
Sourcefire 3D System Installation Guide
Reset button
D
IGNAL ESCRIPTION
Carrier detect
Received data
Transmitted data
Data terminal ready
Chapter 6
