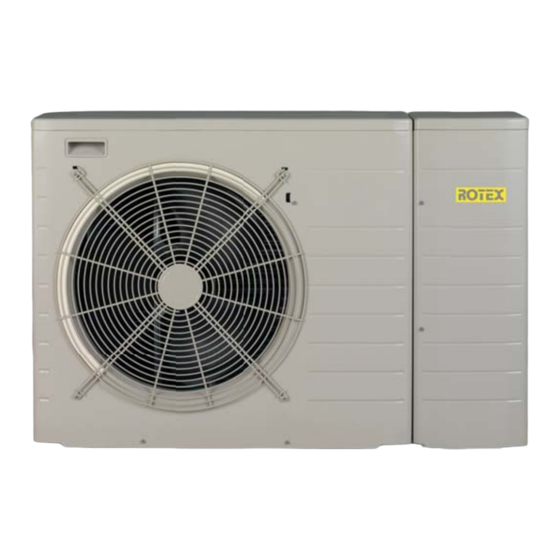

- Page 1 Operation manual ROTEX HPSU low temperature monobloc RBLQ05CAV3 RBLQ07CAV3 Operation manual RDLQ05CAV3 English ROTEX HPSU low temperature monobloc RDLQ07CAV3...
-
Page 2: Table Of Contents
Setting the space operation mode ......for basic and advanced usage 3.3.2 Room thermostat control - Using the room ▪ Format: Digital files on the ROTEX website. temperature home page..........3.3.3 Room thermostat control - Using the leaving water Latest revisions of the supplied documentation may be available on temperature home pages.......... -
Page 3: Operation
An external heat source is active. Example: Gas burner. ON/OFF Turns ON or OFF one of the controls (room temperature, The disinfection mode is active. leaving water temperature, DHW tank temperature). MENU STRUCTURE/BACK RBLQ+RDLQ05+07CAV3 Operation manual ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 4: Space Heating/Cooling Control
Prerequisite: You switched the permission level to Advanced end user. Prerequisite: You switched the space operation mode to automatic. 1 Go to [7.5]: > User settings > Allowed operation mode. 2 Select a month and press Operation manual RBLQ+RDLQ05+07CAV3 ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 5: Room Thermostat Control - Using The Leaving Water Temperature Home
To activate the DHW tank booster mode (user profile = Detailed) 00:00 07:00 14:00 21:00 1 Go to the DHW tank temperature home page (Tank). DHW tank temperature 2 Press to select . Time RBLQ+RDLQ05+07CAV3 Operation manual ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 6: Advanced Usage
Tuesday = Yes, Wednesday = Yes, Thursday = Yes and Friday = Yes. To save the schedule 1 Press , select Save schedule and press 2 Select User defined 1, User defined 2 or User defined 3 and press Operation manual RBLQ+RDLQ05+07CAV3 ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 7: Menu Structure: Overview User Settings
Tank temperature Quiet level Elec price Fuel price [7.7] Set weather dependent Main [7.7.1] Main Additional Set weather-dependent heating Set weather-dependent cooling [7.7.2] Additional Set weather-dependent heating Set weather-dependent cooling RBLQ+RDLQ05+07CAV3 Operation manual ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 8: Installer Settings: Tables To Be Filled In By Installer
0 (Quick) ▪ Program to turn ON the domestic hot water pump only during periods of the day when instant hot water is necessary. Example: In the morning and evening. Operation manual RBLQ+RDLQ05+07CAV3 ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... -
Page 9: Maintenance And Service
DHW = Domestic hot water Hot water used, in any type of building, for domestic purposes. LWT = Leaving water temperature Water temperature at the water outlet of the heat pump. RBLQ+RDLQ05+07CAV3 Operation manual ROTEX HPSU low temperature monobloc 4P417250-1 – 2015.08... - Page 12 Sede operativa Via Milano, 6 - 20097 San Donato Milanese MI-Italy Tel. +39 02 51619.1 · Fax +39 02 51619222 e-mail info@rotexitalia.it · www.rotexitalia.it Numero verde ROTEX 800-886699 ROTEX ROTEX Heating Systems SARL Représenté en France par: 1, rue des Artisans ·...
