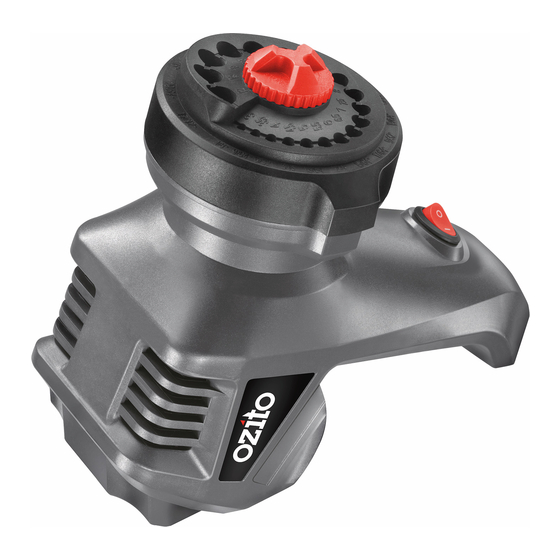

- Page 1 WHAT’S IN THE BOX DRILL BIT SHARPENER Drill Bit Sharpener INSTRUCTION MANUAL SPECIFICATIONS Voltage: 230-240V ~ 50Hz Input Power: No Load Speed: 1350/min Working Capacity: 3mm-12mm (1/8”-15/32”) Weight: ozito.com.au DBS-3100...
-
Page 2: Know Your Product
KNOW YOUR PRODUCT SETUP & PREPARATION DRILL BIT SHARPENER 1. ADJUSTING THE GRINDING STONE 1 On/off Switch 2 Drill Bit Template Guide The tool is recommended for use with a residual current 3 Grinding Stone Adjustment Dial device with a rated residual current of 30mA or less. 1. -
Page 3: Operation
OPERATION 2. CONTROLS 3. SHARPENING PROCEDURE Turning on/off 1. Ensure the drill bit that requires sharpening is 1. To turn on, press the on/ 2. To turn off, press the on/ in the smallest template off switch into the “I” off switch into the “O”... - Page 4 4. Remove the stone assembly. assemby, ensuring the spring stays in place. 5. Insert a new grinding 6. Replace the index head wheel assembly onto the assembly, fasten by drive shaft. Rotate until it tightening the two screws. locates into place. DBS-3100...
-
Page 5: Maintenance
The DBS-3100 is not suitable for sharpening broken drill bits. A drill bit in this condition will take a substantial amount of time to sharpen. Rough the drill bit into shape first using a bench grinder. - Page 6 Tool: Drill Bit Sharpener SPARE PARTS Model No. DBS-3100 The following is a list of spare parts carried by Ozito. Please contact Customer Service for any parts not listed. Item Item Description Part No. Description Part No. On/off Switch SPDBS3100-01...
-
Page 7: Electrical Safety
Replace the extension lead if damaged or defective. Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand. When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock. -
Page 8: Warranty
• Failure to perform maintenance as set out within the instruction manual. • If the tool is disassembled or tampered with in any way. • Professional, industrial or high frequency use. OZITO Australia/New Zealand (Head Office) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175. 0713...
