UBI EasyCoder 501 XP Paper Cutter– Installation Instructions Ed. 1

• Tilt the cutter unit upwards until it locks into place. If the cutter

does not lock properly, the hinges of the cutter unit may need to

be adjusted using a #T10 Torx screwdriver.

• Put back the power cord and switch on power. The cutter will

perform an idle cycle in order to occupy its home position.

• Turn off the power. Tilt down the cutter and thread the paper

through the cutter unit between the guide plates (also see the

EasyCoder 501 XP Installation & Operation manual). Then tilt

up the cutter again and lock it in closed position. Check that the

printhead is lowered and turn on the power. Now the printer is

ready for operation.

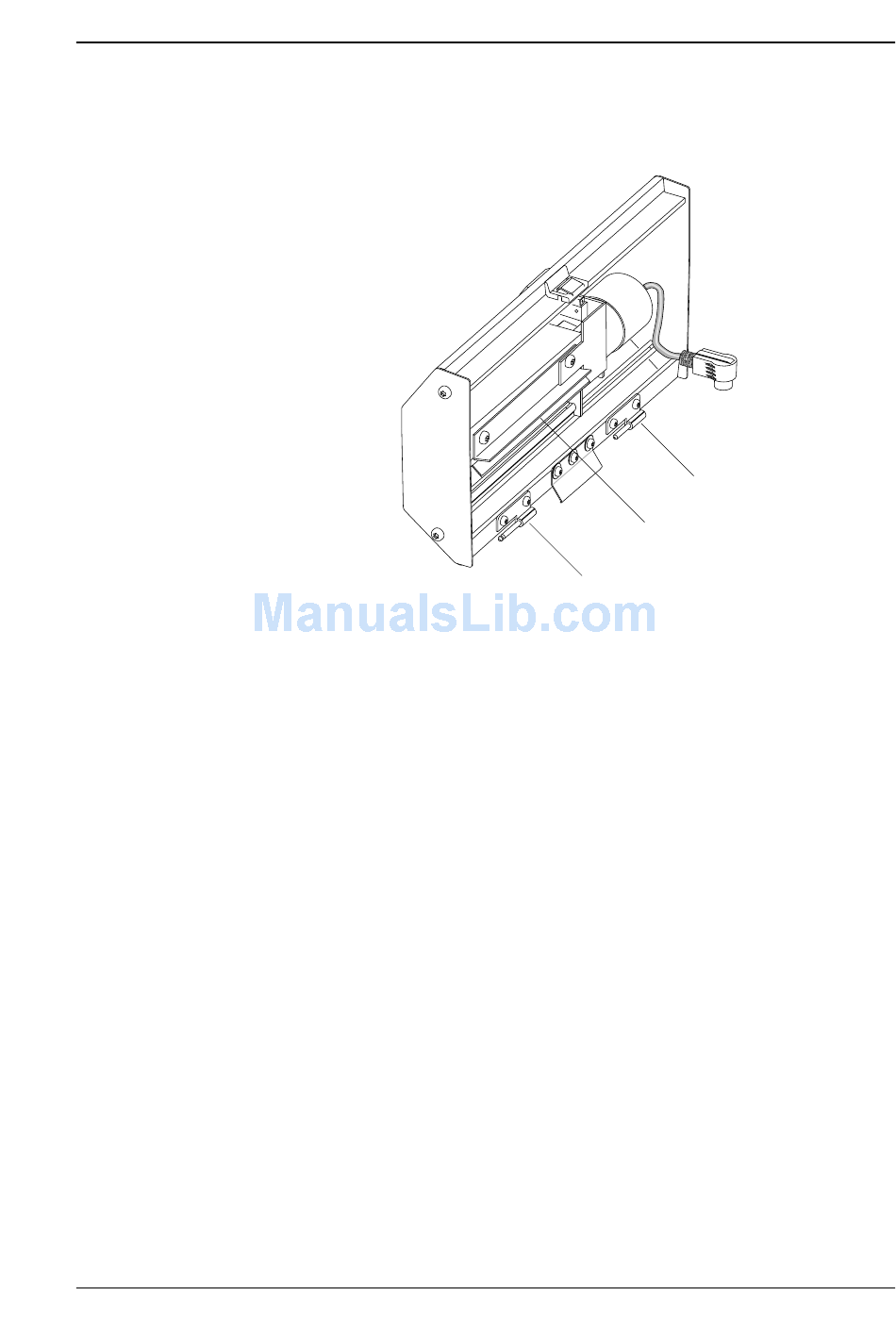

Hinge

Guide Plates

(insert paper between the plates)

Hinge

Paper Cutter
