Erone SEL 39 R27-M1 Manual

Thank you for choosing a product Erone.You are recommended to read carefully this manual
before installingthe product.

1 - DESCRIPTION

1A - Introduction

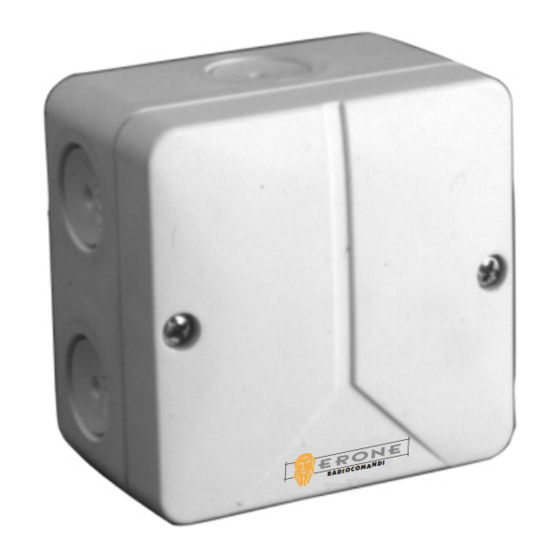

The receiver ERONE 27 mod. SEL39R27-M1, M2, M4 is a
component of the radiocontrol ERONE 27, designed for the
control of automatic closing systems and anti-burglar
systems, thanks to its high security coding system ( up to
19683 code combinations). The operating frequency is
among the European harmonised frequencies; the product
fully complies with the EMC European Regulations (CE).
The code sent by the transmitter is fixed.
The receiver has up to 4 output relays ( depending upon the
model, with NO and NO/NC contacts, and can be
ERONE 27
EXTERNAL MINI RECEIVER
connected to many types of mechanics ( gate, garage door,
rolling shutters, awnings, anti-burglar appliances, lighting,
etc.).All the receivers of the Series Erone 27 can store up to
100 different security codes into the internal EEPROM.
The programmation can be done in self-learning mode by
means of one button. The Housing Protection of IP65 allows
external installations. The receiver is produced in 3 versions,
with 1, 2 or 4 output relays.
The appliance full complies with the European Regulations
89/336/EEC, 73/23/EEC and EN 60336-1.
R A D I O C O M A N D I
S E L 3 9 R 2 7 - M 1
S E L 3 9 R 2 7 - M 2
S E L 3 9 R 2 7 - M 4
