How to Set Up Your SRX340 Services Gateway

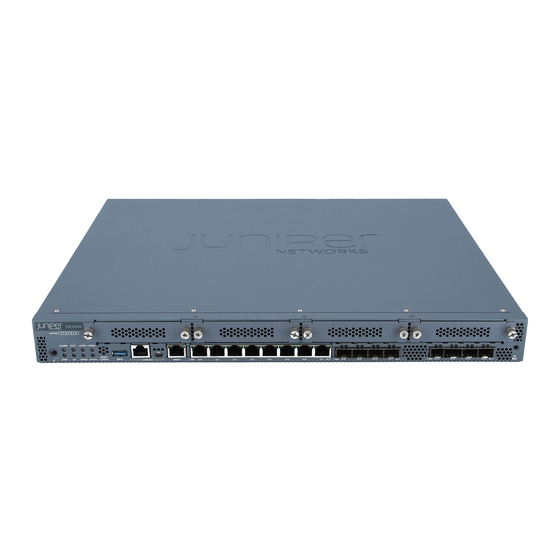

The SRX340 Services Gateway consolidates security, routing, switching, and
WAN interfaces for midsize distributed enterprises. With advanced threat
mitigation capabilities, the services gateway provides cost-effective and secure
connectivity across distributed enterprises.
The SRX340 Services Gateway has a capacity of 3 gigabits per second (Gbps)
and is 1 rack unit (U) tall. The services gateway has eight 1-Gigabit Ethernet
ports, eight 1-Gigabit Ethernet SFP ports, one management port, 4 GB of DRAM
memory, 8 GB of flash memory, and four Mini-Physical Interface Module (Mini-
PIM) slots.

Package Contents

SRX340
RJ-45 cable
DB-9 adapter
Screws
• End User License Agreement
• Safety Guide
• Quick Start Guide
USB cable
Power cable
Mounting brackets
Warranty and Registration
Information

Front Panel

Reset Config Serial Console Management
button port port
Power LEDs Mini-USB
USB
button Console port
port

Back Panel

SSD slot Fans
NOTE: The SRX340 Services Gateway shipment package contains a
packing list. Check the parts in the shipment against the items on the
packing list. If anything is missing or damaged, contact your Juniper
Networks customer service representative.
Specification
DImensions (D x W x H)
Chassis weight
Average power consumption
Average heat dissipation
Relative humidity
Noise level
Mini-PIM
slots
1G Ethernet
1G SFP
ports
ports
AC power input
Value
14.57 in. x 17.36 in. x 1.72 in.
(37.01 cm x 44.09 cm x 4.37 cm)
10.80 lb (4.89 kg)
122 W
420 BTU/hour
5% to 90%, noncondensing
35 dBA
ESD
point
1
