Day One+
SRX345
IN THIS GUIDE

Step 1: Begin

IN THIS SECTION

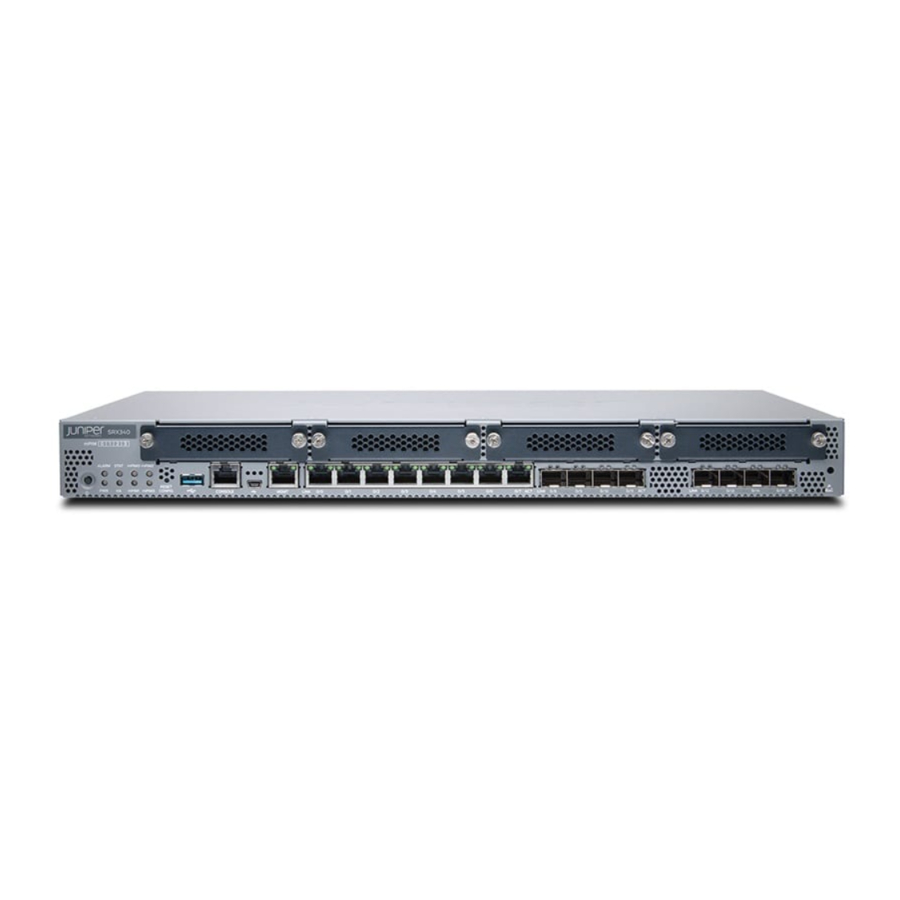

Meet the SRX345

®
The Juniper Networks
SRX345 Services Gateway securely consolidates security, routing, switching, and WAN connectivity
in a compact 1-U chassis. It supports up to 5-Gbps firewall throughput and 800-Mbps IPsec VPN to meet the needs of
midsize, distributed-enterprise locations. Along with Juniper Sky™ Enterprise and Contrail Service Orchestration
the SRX300 line delivers fully automated SD-WAN to both enterprises and service providers. A zero-touch provisioning
(ZTP) feature simplifies branch network connectivity for initial deployment and ongoing management.
The SRX345 has eight 1GbE RJ-45 ports, eight 1GbE SFP ports, one management port, one console port, and four
Mini-Physical Interface Module (Mini-PIM) slots. The RJ-45 and SFP ports are MACsec capable. The SRX345 AC models
®
(CSO),

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Day One+ SRX345 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Juniper Day One+ SRX345

Summary of Contents for Juniper Day One+ SRX345

  • Page 1: Table Of Contents

    1-U chassis. It supports up to 5-Gbps firewall throughput and 800-Mbps IPsec VPN to meet the needs of ® midsize, distributed-enterprise locations. Along with Juniper Sky™ Enterprise and Contrail Service Orchestration (CSO), the SRX300 line delivers fully automated SD-WAN to both enterprises and service providers. A zero-touch provisioning (ZTP) feature simplifies branch network connectivity for initial deployment and ongoing management.

  • Page 2: Install The Srx345

    have either a single AC power supply or dual AC power supplies. The SRX345 DC models have a single power supply. This guide covers SRX345 AC models. Install the SRX345 IN THIS SECTION What’s in the Box? | 2 What Else Do I Need? | 2 What’s in the Box? SRX345 Services Gateway A power cord appropriate for your geographic location...

  • Page 3: Install The Srx345 In A Rack

    Install the SRX345 in a Rack Here’s how to install the SRX345 in a rack: 1. Review General Safety Guidelines and Warnings. 2. Wrap and fasten one end of the electrostatic discharge (ESD) grounding strap around your bare wrist, and connect the other end to a site ESD point.

  • Page 4: Power On

    5. While you’re holding the SRX345 in place, have a second person insert and tighten the rack mount screws to secure the mounting brackets to the rack. Make sure to tighten the screws in the two bottom holes first and then tighten the screws in the two top holes.

  • Page 5: Step 2: Up And Running

    3. Plug the power cord into the power socket on the SRX345 rear panel. 4. If the AC power source outlet has a power switch, turn it off. 5. Plug the power cord into the AC power source outlet. 6. If the AC power source outlet has a power switch, turn it on. 7.
  • Page 6 SRX345 and other devices on your network. You can choose the configuration tool that’s right for you: J-Web, Juniper Networks Setup wizard that is preinstalled on the SRX345. We walk you through the steps of how to do the initial configuration using J-Web.
  • Page 7 3. Set the root authentication password: a. Open a browser and type https://192.168.1.1. The Phone Home Client page appears. b. Click Skip to J-Web at the bottom of the screen. The Skip to J-Web page appears. c. Type a root authentication password and click Submit. The J-Web login page appears.
  • Page 8 1. Connect the WAN to port 0/0. 2. Connect the LAN to any of the ports from 0/1 through 0/14. 3. Check whether the SRX345 is connected to the Internet. Go to http://www.juniper.net. If the webpage doesn’t load, check the Internet connection.

  • Page 9: Step 3: Keep Going

    Congratulations! Your SRX345 is configured and ready to go. Here are some things you can do next: If you want to Then Download, activate, and manage your software licenses Activate Junos OS Licenses in the Juniper Licensing to unlock additional features for your SRX services Guide gateway See all documentation available for the SRX345 Visit the...
  • Page 10 Security Design Center Security Juniper Networks, the Juniper Networks logo, Juniper, and Junos are registered trademarks of Juniper Networks, Inc. in the United States and other countries. All other trademarks, service marks, registered marks, or registered service marks are the property of their respective owners.
