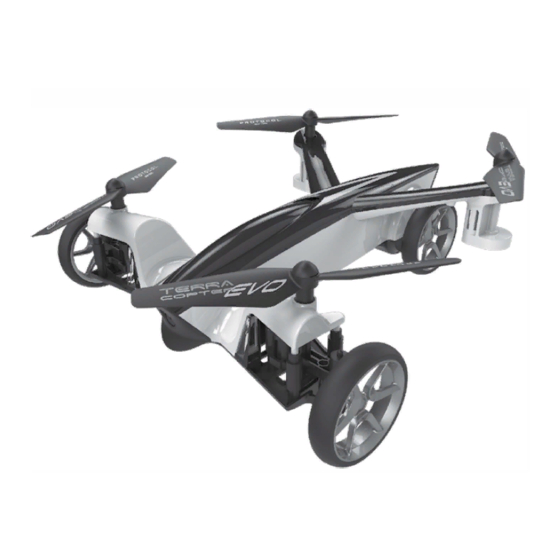

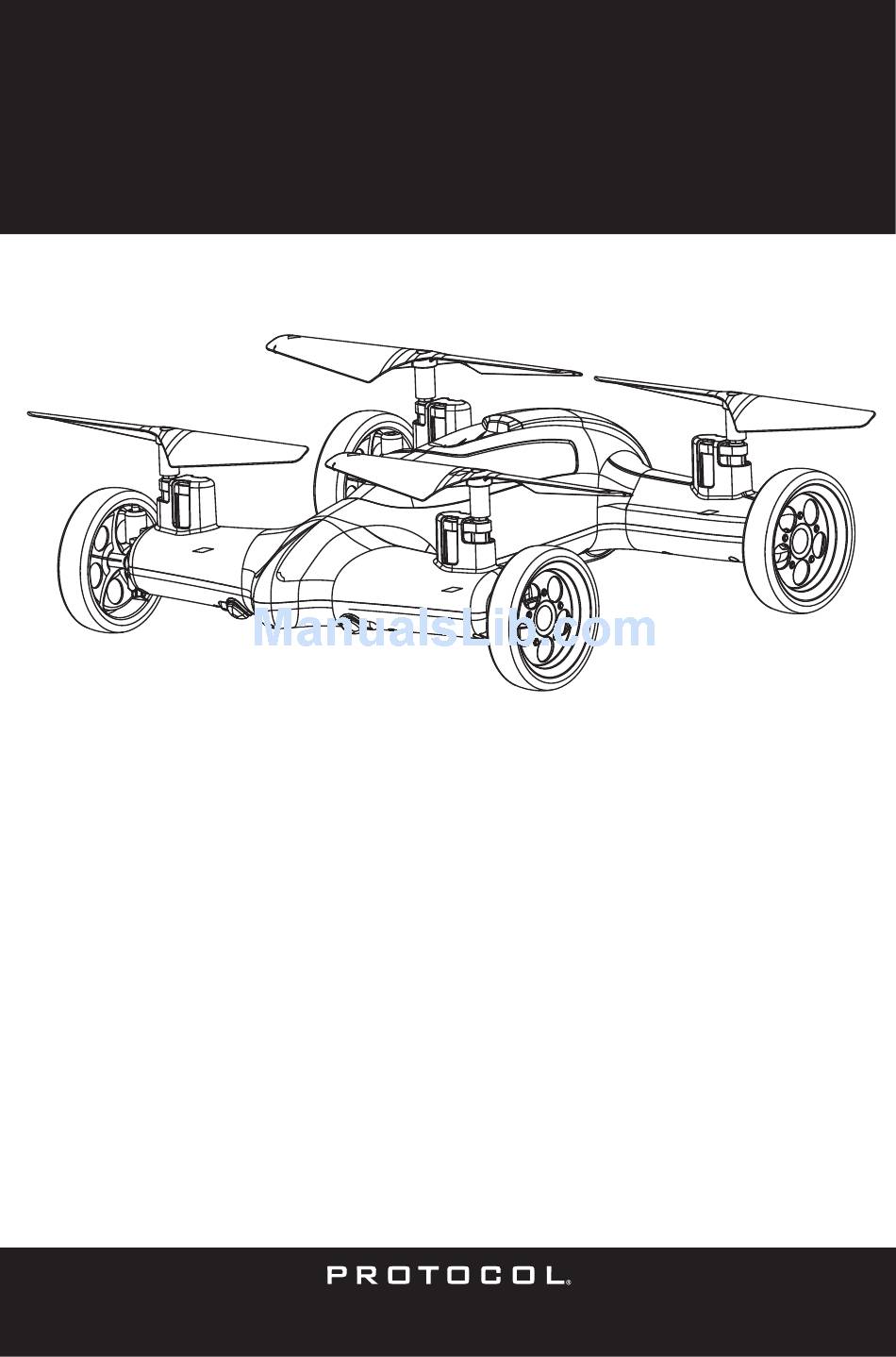

TERRACOPTER
TM
RC CAR/DRONE
FEATURING:
1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use.
2. Built-in 6-axis Gyro ensures excellent stability.
3. Modular design for increased ease of maintenance.
4. 360-degree 3-dimensional stunt and tumbling function
The materials and specifications stated in this instruction manual are for reference only.
Advertisement
Table of Contents
Related Manuals for Protocol TERRACOPTER
Summary of Contents for Protocol TERRACOPTER
- Page 1 TERRACOPTER RC CAR/DRONE FEATURING: 1. Four-Rotor design allows great speed and maneuverability for both Indoor and Outdoor use. 2. Built-in 6-axis Gyro ensures excellent stability. 3. Modular design for increased ease of maintenance. 4. 360-degree 3-dimensional stunt and tumbling function...
- Page 2 TERRACOPTER RC CAR/DRONE Thank you for your purchase of Protocol’s TerraCopter RC Car/Drone. You are about to experience the best of what remote control flight has to offer. We strongly recommend that you take the time to read this manual thoroughly. It contains many tips and instructions on how to get the most out of this aircraft and maintain it for a long life.
-
Page 3: Remote Control
15. Flight Mode 1 Active (Default); To change to Mode 2, press and hold Mode Switch to the right while turning on the transmitter. 16. Remote control signal strength 17. Indicates positive communication lock with the TerraCopter Remote Control 1. Install batteries carefully. - Page 4 3. If quad-copter's LED blinks slowly, it means it has not recognized the controller; please restart pre-flight procedure. 4. If the TerraCopter is unsteady in flight, it may not have been able to calibrate horizontally; Power down both vehicle and remote and restart pre-flight procedure.
- Page 5 CHARGING THE QUAD-COPTER BATTERY 缺产品 2. Pull out the battery wire from 1. Push the on/off switch of the the power port. quad-copter to OFF and open the battery cover. 4. Plug the charger into a USB 3. Connect the USB charging port.
- Page 6 3V. Check monthly and recharge as needed. 5. Do not disassemble battery. HIGH-LOW SPEED MODES The TerraCopter features 2 speed modes. Low speed is for beginners and high speed is for advance users. High/Low Speed Press the speed mode button to adjust speed.
- Page 7 TRIM ADJUSTMENT FORWARD/BACKWARD TRIM SIDEWAYS TRIM LEFT/RIGHT TRIM When the quad-copter veers When the quad-copter veers to When the quad-copter keeps forward/backward unintentionally, the left or right side unintentionally, spinning left or right unintentionally, you can correct it by pressing you can correct it by pressing the you can correct it by pressing the the trim button in the opposite...
- Page 8 DRIVING THE TERRACOPTER TURNING LEFT AND RIGHT FORWARD AND BACKWARD When the drone is on land, push the When the drone is on land, push the...
- Page 9 Potential Solution 1. To synchronize, turn on controller, then 1. Communication between controller and turn on aircraft and place it on level TerraCopter aircraft was not synchronized during set up ground. Move throttle stick all the way does not forward, then all the way back.
- Page 10 [on controller’s right side] then move the right stick in whichever direction desired to perform a 360-degree flip in that direction. Thank you for your purchase of Protocol’s TerraCopter RC Car/Drone. We know that accidents can sometimes happen and that is why we offer spare parts kits on our website:...
