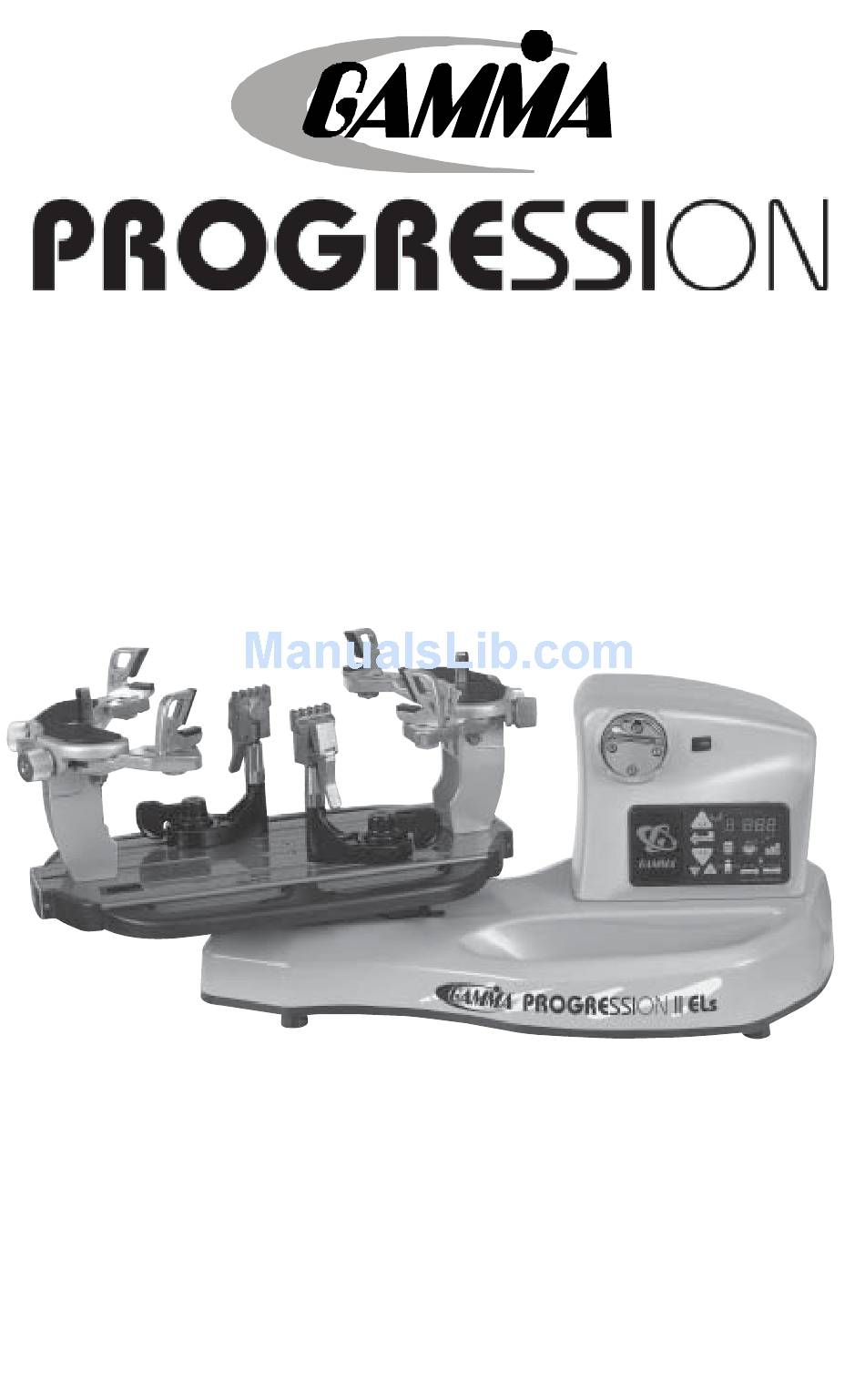

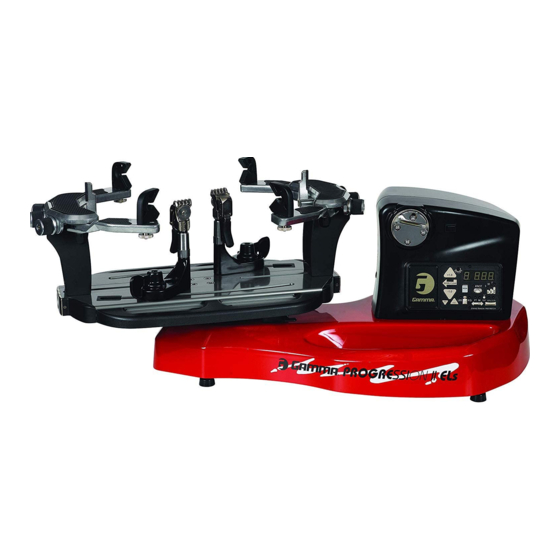

- Page 1 STRINGING MACHINE OWNER'S MANUAL Issue 1 - March 2009...
-
Page 2: Table Of Contents
Should any defects develop under normal use within the specified time periods, GAMMA will at its option, repair or replace the defective EQUIPMENT provided it is returned to GAMMA prepaid at the purchaser's expense. This warranty does not apply to any damage or defect caused by negligence, abuse, misuse, unauthorized alteration, shipping, handling, or part wear and tear as a result of normal use. -
Page 3: Features
FEATURES MACHINE FEATURES Electric Constant Pull Tensioner w/ 11 lbs. to 89 lbs. Tension Range Digital Tension Setting Display Professional Six Point “Quick Mount” Racquet Mounting System- Accomodates All Racquets Without Adapters Parallel Jaw Rotating Gripper w/ Diamond Dust Coated Gripping Surfaces Professional Dual Action, Rotating, Diamond Dust Coated, Fixed String Clamps... -
Page 4: Assembly Instructions
ASSEMBLY INSTRUCTIONS Transportation Screw The machine has been shipped with a motor and load cell protection screw. Remove the screw before using the machine. Retain the screw for future shipment. Install the inluded rubber grommet into the hole. Remove this Screw String Clamp Installation The post of the string clamp and tube of the string clamp base are treated with grease to... -
Page 5: Power Connection & Controls
POWER CONNECTION & CONTROLS Front Panel Features A - String Gripper B - Tension Switch C - L.E.D. Tension Display Back Panel Features Lighted Power Switch Foot Pedal Switch Receptacle A/C Power Cord Socket String Length Meter (currently not available) Instructions for Power Connection and Controls CAUTION ! Before connecting to the power supply, check the voltage source that the machine is being connected to. - Page 6 CONTROL PANEL FUNCTIONS AND FEATURES Three Digit (XX.X) Tension Setting Single Digit (1-9) Display or String Memory LED Display Length LED Display Tension Index Buttons - Changes Memory Button - Indexes from 9 preset tension setting in +/- 1.0 or +/- 0.1 Lb or tension settings that can be stored in Kg increments.
-
Page 7: Mounting The Frame
POWER CONNECTION & CONTROLS Setting the String Tension String tensions may be entered and stored into one of nine memory storage settings (See section on Control panel Functions and fea- tures) by using the tension index buttons. While tension setting is entered, the value displayed will be temporary until the “Enter”... - Page 8 MOUNTING THE FRAME Frame Shoulder Support Adjustment Being sure the shoulder supports are free to swivel in their mountings, simultaneously rotate the shoulder support adjustment knobs clock- wise until both shoulder supports gently and squarely contact the frame. Securing the Frame Shoulder Clamps Lock the shoulder supports in position by turning the knob at the base clockwise.
-
Page 9: Stringing The Frame
STRINGING THE FRAME String Clamp Operation The string c lamps are a dual action design where the string clamp and clamp base operate independently of one another. To clamp a string, lift the clamp head and place the string between the jaws and de- press the string clamp lever to secure the string. - Page 10 STRINGING THE FRAME Pulling Tension To pull tension, wrap the free string clock- wise around the gripper drum and position the string between the gripper jaws. The string must pass over the top half of the gripper before being placed between the gripper jaws, as the tension on the string provides the clamping force to the gripper jaws.
- Page 11 STRINGING THE FRAME Weaving the Cross Strings Weave the cross strings over and under the main strings being careful to alternate the weave direction of each consecutive cross string so as to be opposite of the previously installed cross string. Completing the String Job Once the final cross string is tensioned and clamped, tie off at the appropriate hole speci-...
-
Page 12: Additional Features
ADDITIONAL FEATURES Turntable Brake The turntable may be locked in any position. Rotate the lever to the right to lock the turntable and to the left to relase the turn- table. -
Page 13: Pathfinder Awl
PATHFINDER AWL The machine includes the Pathfinder string- ing awl which creates a pathway between or around strings to make inserting a string through tight grommets easier and quicker. Insert the awl through the grommet hole in the same manner as for traditional awls. The Pathfinder awl must be in the closed position before insertion. -
Page 14: Maintenance & Adjustments
MAINTENANCE & ADJUSTMENTS Adjusting the String Clamp Jaw Spacing The string clamps will need minor adjustments according to what string type, construction, and gauge you are using. To adjust the gap (clamping pressure) between the clamp jaws, insert the string through the racquet as if you were beginning the main strings. -
Page 15: Calibration
Most tension calibrators (such as a Gamma Tension Calibrator) function by clamping off the string attached to one the end of the calibrator and applying tension to the string located on the opposite end of the calibrator. -
Page 16: Troubleshooting Tips
TROUBLESHOOTING TIPS PROBLEM SOLUTION String slips in clamps - Adjust gap between clamp jaws - Clean clamp jaws String slips in gripper - Clean gripper jaws - Make sure string is wrapped over top jaw of gripper prior to inserting between gripper jaws String clamp base slips on turntable - Clean bottom of clamp &... -
Page 17: Parts List
PARTS LIST PART # DESCRIPTION TOOLS AND ACCESSORIES 6MM T-HANDLE HEX WRENCH RUBBER FOOT UTILITY KNIFE CAP SCREW- M8 NEEDLE NOSE PLIERS WASHER- M8 BENT NOSE PLIERS WASHER- M10 HEX WRENCH SET FRAME SUPP SLIDE DIAGONAL CUTTERS FRAME SUPP SLIDE KNOB 17MM SOCKET MTNG STAND TOP PLATE STRINGERS AWL... -
Page 18: Parts Drawing
PARTS DRAWING 133 14 MMSPP 148L MFSPP MRSGD 146A 296A MDCSC MQAC 283 285 MFSPP MMSPP MMSSA... - Page 19 GAMMA SPORTS 200 Waterfront Drive Pittsburgh, Pennsylvania 15222 Phone: 800.333.0337 Fax: 412.323.0317 Visit our website at www.gammasports.com Copyright 2009 GAMMA Sports - All Rights Reserved...
