Programming The Ip100H Radios With The Cs-Ip100H Cloning Software - Icom ip100h Quick Manual

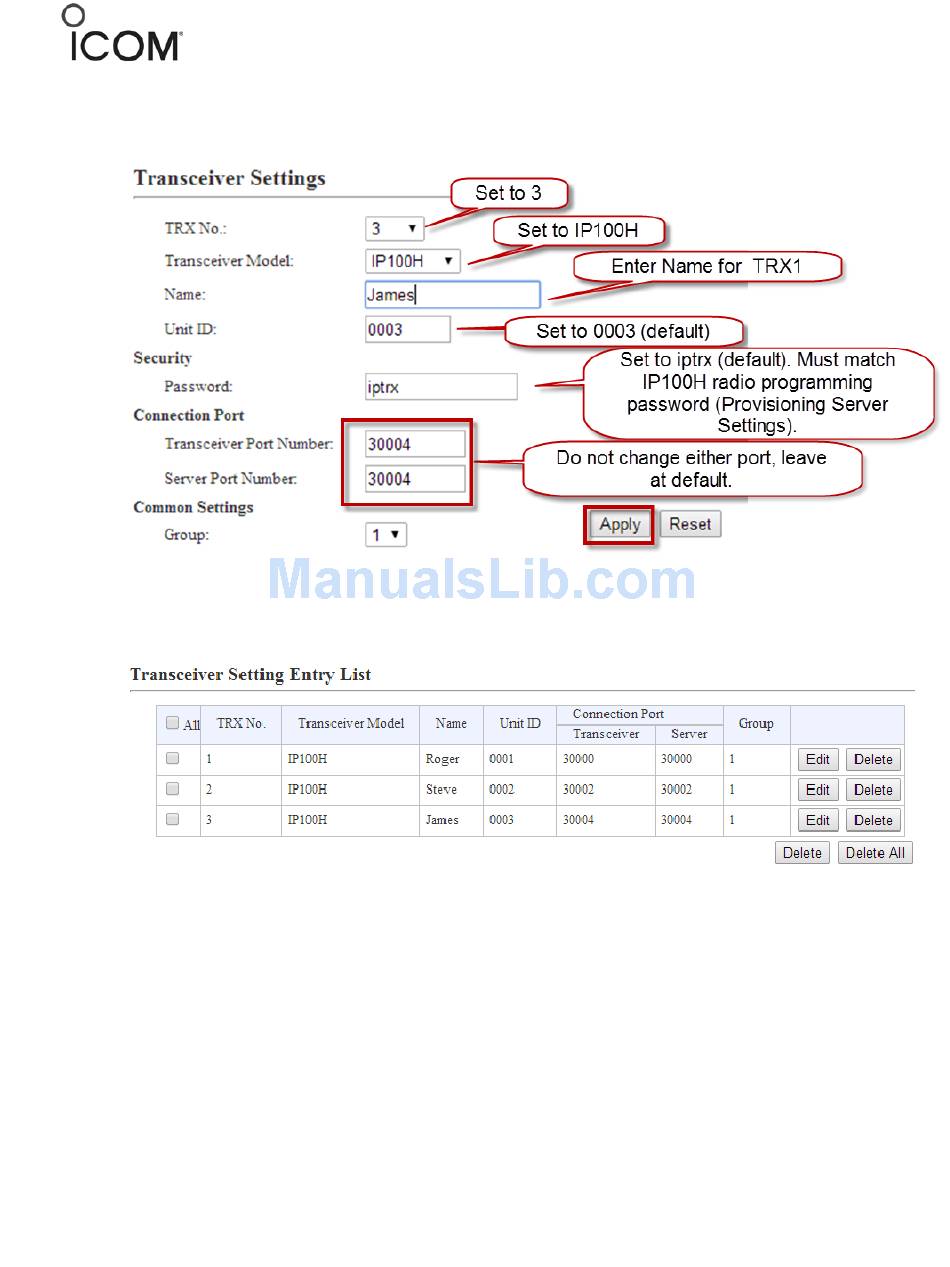

2. Enter Transceiver 3 Radio Information as follows and Click Apply.
3. Confirm that the transceivers appear under the Transceiver Setting Entry
List
Set up all other Transceivers in the same way. After adding each radio, verify that they appear
in the Transceiver Setting Entry List.

Programming the IP100H Radios with the CS-IP100H Cloning Software

1. Open the CS-IP100H cloning software and connect your IP100H radio using the OPC-
478UC cloning cable and the OPC-2144 plug adapter.
2. Click Wireless LAN settings on the left side on the screen.
3. Enter the SSID in the SSID field (note: this SSID must be enabled in the customer's WLAN
system).
©2014 Icom America Inc.
Page 7
