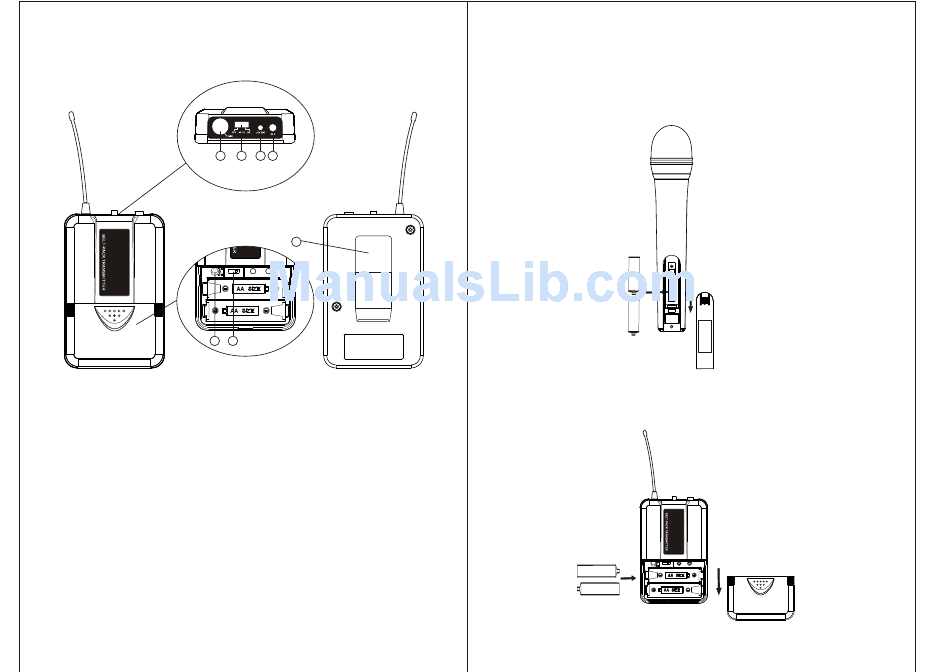

BODY-PACK TRANSMITTER FEATURES
4
7
6
1. Power and Audio Mute Switch.
2. Antenna: Transmit the RF signal of transmitter.
3. Belt Clip: Attach the transmitter to the belt.
4. Audio Input Jack: it is suitable for lavalier system/headset system.
5. Low Battery Indicator: Red light glows when it is lack of power and should
renew the battery.
6. State Setting Switch: Set the using state of lavalier system(L)/
headset system(H)/guitar system(G).
7. Gain Adjusting Volume: Adjust the transmitter audio input gain.
1
5 2
3
5

TRANSMITTER BATTERY INSTALLATION

1. Battery Installation of Handheld Microphone: Open the battery cover,
Insert the supplied batteries into battery jar in polarity and cover the battery
cover.
2. Battery Installation of Bodypack Transmitter:Push open the battery cover,
Insert the supplied batteries into battery jar in polarity and close the battery
cover.
Push down
to open.
Push down
to open.
