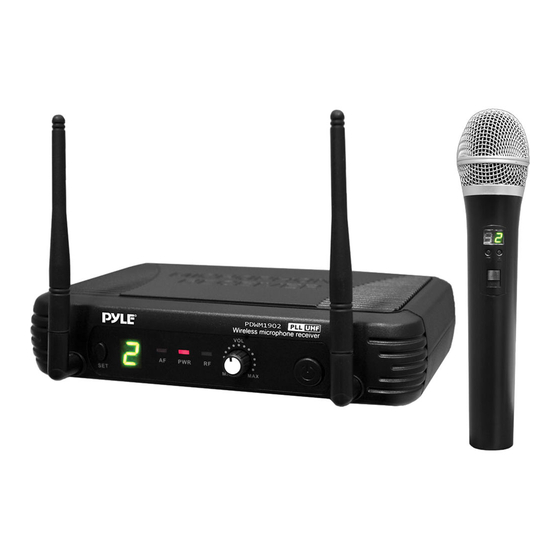

- Page 1 USER’S MANUAL UHF WIRELESS MICROPHONE SYSTEM PDWM1902 • PDWM1904 • PDWM3375 • PDWM3378 • PDWM3400...
-
Page 2: System Type
SYSTEM TYPE • The Vocal Artist-UHF is a hand-held system designed for singers who desire the high quality microphones and the freedom of wireless performance. • The Presenter-UHF is a body-pack system designed for public speakers who prefer an inconspicuous, hands-free lavaliere microphone. - Page 3 DUAL CHANNEL RECEIVER Power Button: Power ON/OFF the receiver. Power Indicator: Indicate the power ON/OFF. Channel Display: Indicates the frequency data of the selected channel group. SET Function Button: Sets channel data. "AF"Audio Level Indicator: Indicate the wireless system audio signal level. "RF"...
-
Page 4: Microphone Functions
MICROPHONE FUNCTIONS Grille: Protects the cartridge and help reducing the breath sounds and wind noise. Channel Display: Indicates the frequency data of the selected channel group. Down Function Button: Sets channel data. Up Function Button: Sets channel data. Power and Audio Mute Switch. Battery Cover: Open it to install the battery. -
Page 5: Receiver Connections
Power and Audio Mute Switch. Antenna: Transmit the RF signal of transmitter. Belt Clip: Attach the transmitter to the belt. Audio Input Jack: it is suitable for lavalier system/headset system. Channel Display: Indicates the frequency data of the selected channel group. Gain Adjusting Volume: Adjust the transmitter audio input gain. -
Page 6: Bodypack Transmitter Connection
BODYPACK TRANSMITTER CONNECTION Lavalier Microphone Connection: Connect the connector of supplied Lavalier microphone to the connecting jack of transmitter (Shown as below) Set the transmitter work state in wireless lavaliere system. Headset Microphone Connection: Connect the connector of supplied Headset microphone to the connecting jack of transmitter(Shown as below) Set the transmitter work state in wireless headset system. -
Page 7: Troubleshooting
TROUBLESHOOTING PROBLEM INDICATOR STATUS SOLUTION Slide transmitter POWER ON/ OFF switch ON position. Make Rod transmitter sure battery Is Inserted properly, indicator is not flashing observing battery (+/-), If battery is inserted properly, replace with fresh battery. Rod transmitter Slide transmitter MUTE/ON indicator is flashing switch ON position. - Page 8 UHF WIRELESS MICROPHONE SYSTEM FEATURES AND SPECIFICATIONS PDWM1902 System Features: • UHF Microphone Signal Transmission • Simple Setup & Hassle-Free Operation • Operation Range: Up to 160'+ ft. • LED Display for Channel Display & Power Indicator • Selectable Frequency: (8) Available Audio Channels •...
- Page 9 PDWM1904 System Features: • UHF Band Microphone System • Simple Setup & Hassle-Free Operation • Operation Range: Up to 160'+ ft. • LED Display Screens for Audio Channel & Power Indicator • Audio Level Indicator: Displays Wireless Audio Signal Strength •...
- Page 10 PDWM3375 System Features: • UHF Band Microphone System • Simple Setup & Hassle-Free Operation • Operation Range: Up to 160'+ ft. LED Screen Displays Audio Channel & Power Indicator • • Audio level indicator for wireless signal • RF Signal Indicator for transmitter signal strength •...
- Page 11 PDWM3378 System Features: • UHF Band Microphone System • Operation Range: Up to 160'+ ft. • LED Digital Display Readout Screens • Simple Setup & Hassle-Free Operation • AF & RF Audio Transmission Signal Strength Indicators • Independent & Adjustable Channel Volume Controls •...
- Page 12 PDWM3400 System Features: • UHF Band Microphone Signal System • Operation Range: Up to 160'+ ft. • Audio Level Indicator for Wireless Signal Strength • Independent & Adjustable Channel Volume Controls • RF Signal Indicator for Transmitter Signal Strength • LED Power Indicator &...
