FOUR CHANNEL RECEIVER FEATURES

5 5
1 2 3 4 3

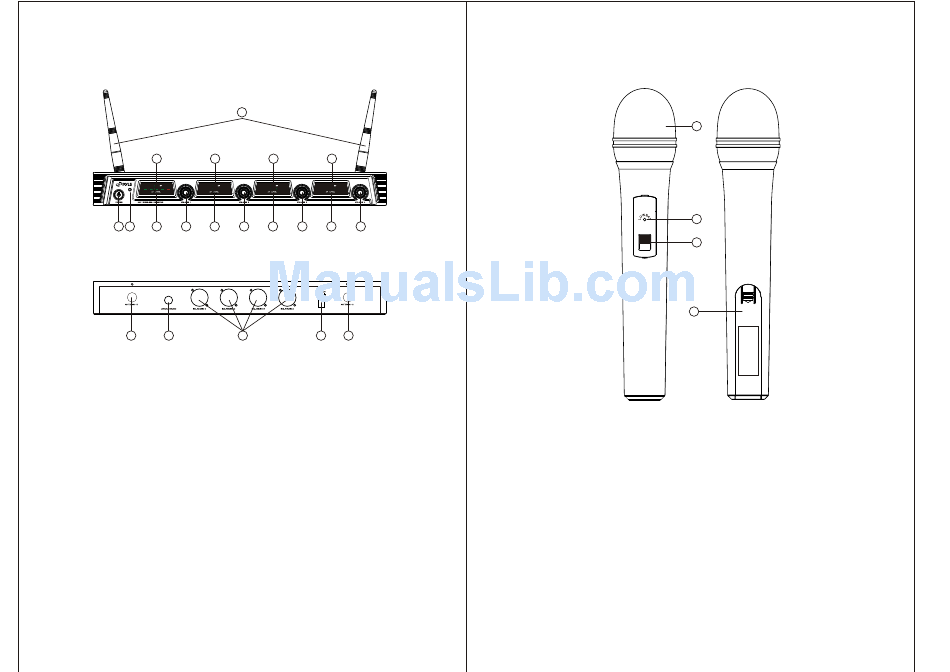

Front Panel
6 7
Rear Panel
1.Power Button: Power ON/OFF the receiver.
2.Power Indicator: Indicate the power ON/OFF.
3."AF"Audio Level Indicator: Indicate the wireless system audio signal level.
4.Volume Knob: Adjust the volume output of receiver.
5."RF" signal Indicator:It glows when the Receiver receive RF signal from
Transmitter.
6.Antenna A/B.
7.1/4" Audio Output Jack: Connect the audio cable from this jack to the input
port of amplifier, mixer.
8.XLR Balanced Output Jack: Connect the audio cable from this jack to the input
port of amplifier, mixer.
9.Power Jack: Connect the AC/DC adapter to receiver.
6
5 5
4 3 4 3 4
8 9 6
3
MICROPHONE-TRANSMITTER FEATURES
ON
1. Grille: Protects the cartridge and help reducing the breath sounds and wind
noise.
2. Battery Cover: Open it to install the battery.
3. Low Battery Indicator: Red light glows when it is lack of power and should
renew the battery.
4.Power and Audio Mute Switch.
